GFA-N10A
ActiveEssentra Access Solutions

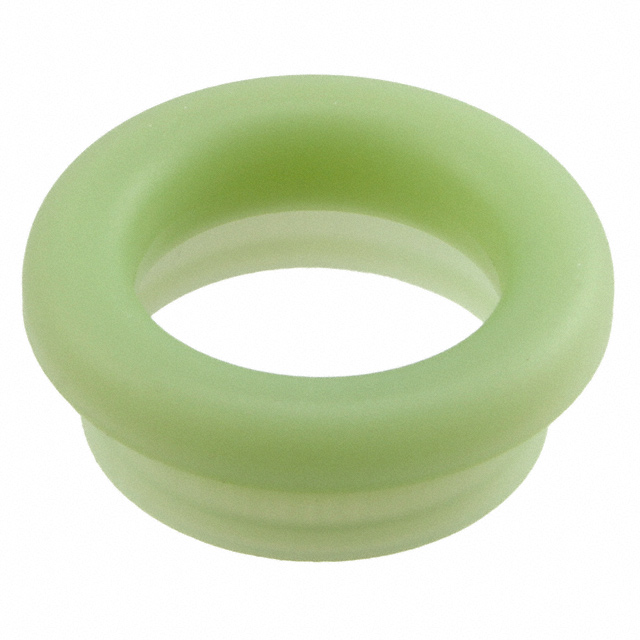

GROMMET FLIP 0.605" NYLON GREEN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GFA-N10A
ActiveEssentra Access Solutions
GROMMET FLIP 0.605" NYLON GREEN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GFA-N10A |
|---|---|
| Bushing, Grommet Type | Grommet, Flip |
| Color | Green |
| Diameter - Inside [diameter] | 15.37 mm |
| Diameter - Inside [diameter] | 0.605 in |
| For Use With/Related Products | Wires, Cable |
| Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-2 |
| Panel Cutout Dimensions [diameter] | 0.781 in |
| Panel Cutout Dimensions [diameter] | 19.84 mm |
| Panel Thickness | 0.03 in |
| Panel Thickness | 0.76 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.91 | |
| 10 | $ 2.47 | |||
| 25 | $ 2.32 | |||
| 50 | $ 2.20 | |||
| 100 | $ 2.10 | |||
| 300 | $ 1.94 | |||
| 500 | $ 1.87 | |||
| 1000 | $ 1.78 | |||
| 2500 | $ 1.67 | |||
Description
General part information
GFA-N Series
Circular - 0.781" (19.84mm) Grommet, Flip 0.605" (15.37mm) Green
