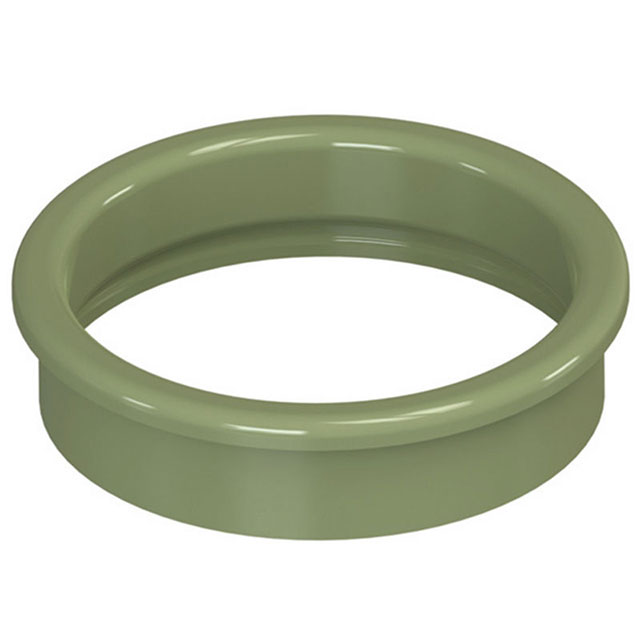

GFA-N8B
ActiveEssentra Access Solutions
GROMMET FLIP 0.499" NYLON GREEN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GFA-N8B
ActiveEssentra Access Solutions
GROMMET FLIP 0.499" NYLON GREEN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GFA-N8B |
|---|---|
| Bushing, Grommet Type | Grommet, Flip |
| Color | Green |
| Diameter - Inside [diameter] | 0.499 in |
| Diameter - Inside [diameter] | 12.67 mm |
| For Use With/Related Products | Wires, Cable |
| Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-2 |
| Panel Cutout Dimensions [diameter] | 15.88 mm |
| Panel Cutout Dimensions [diameter] | 0.625 in |
| Panel Thickness | 0.09 in |
| Panel Thickness | 2.29 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.65 | |
| 10 | $ 2.02 | |||
| 25 | $ 1.82 | |||
| 50 | $ 1.68 | |||
| 100 | $ 1.56 | |||
| 300 | $ 1.38 | |||
| 500 | $ 1.31 | |||
| 1000 | $ 1.22 | |||
| 2500 | $ 1.11 | |||
Description
General part information
GFA-N Series
Circular - 0.625" (15.88mm) Grommet, Flip 0.499" (12.67mm) Green
