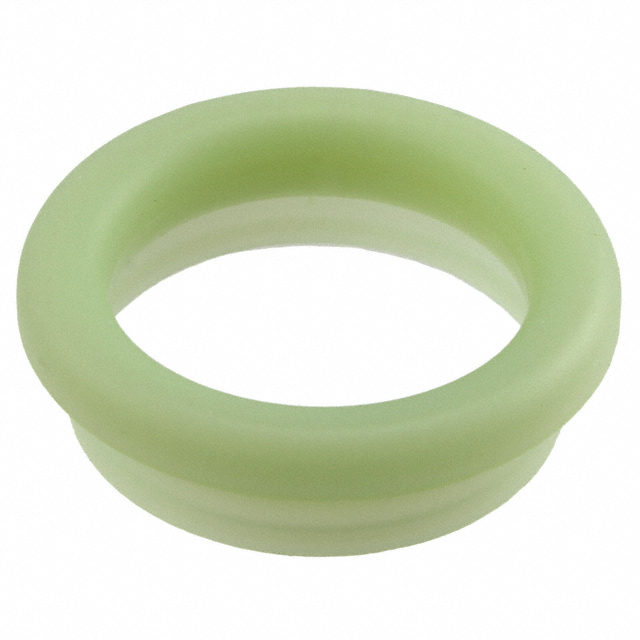

GFA-N14A

Active

Essentra Access Solutions

GROMMET, FLIP, 21.7 MM, NYLON 6.6 (POLYAMIDE 6.6), 26.2 MM, 0.5 MM

Search across all available documentation for this part.

Active

Essentra Access Solutions

GROMMET, FLIP, 21.7 MM, NYLON 6.6 (POLYAMIDE 6.6), 26.2 MM, 0.5 MM

Technical Specifications

Parameters and characteristics for this part

Specification	GFA-N14A

Bushing, Grommet Type	Grommet, Flip
Color	Green
For Use With/Related Products	Wires, Cable
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Panel Cutout Dimensions [diameter]	26.19 mm
Panel Cutout Dimensions [diameter]	1.031 "
Panel Thickness	0.51 mm
Panel Thickness	0.02 "

Part	Bushing, Grommet Type	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Color	Panel Thickness	Panel Thickness	For Use With/Related Products	Material Flammability Rating	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]	Material	Diameter - Inside	Panel Thickness
Essentra Access Solutions GFA-N6A	Grommet Flip	9.55 mm	0.376 "	Green	0.03 in	0.76 mm	Cable Wires	UL94 V-2	12.7 mm	12.7 mm	Polyamide (PA66) Nylon 6/6
Essentra Access Solutions GFA-N4B	Grommet Flip		0.251 "	Green	0.1 in	2.54 mm	Cable Wires	UL94 V-2	9.53 mm	0.375 in	Polyamide (PA66) Nylon 6/6	6.38 mm
Essentra Access Solutions GFA-N8B	Grommet Flip	12.67 mm	0.499 in	Green	0.09 in	2.29 mm	Cable Wires	UL94 V-2	15.88 mm	0.625 in	Polyamide (PA66) Nylon 6/6
Essentra Access Solutions GFA-N14A	Grommet Flip			Green		0.02 "	Cable Wires	UL94 V-2	26.19 mm	1.031 "	Polyamide (PA66) Nylon 6/6		0.51 mm
Essentra Access Solutions GFA-N10A	Grommet Flip	15.37 mm	0.605 in	Green	0.03 in	0.76 mm	Cable Wires	UL94 V-2	19.84 mm	0.781 in	Polyamide (PA66) Nylon 6/6
Essentra Access Solutions GFA-N8A	Grommet Flip	12.67 mm	0.499 in	Green	0.03 in	0.76 mm	Cable Wires	UL94 V-2	15.88 mm	0.625 in	Polyamide (PA66) Nylon 6/6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular - 1.031" (26.19mm) Grommet, Flip 0.855" (21.72mm) Green
