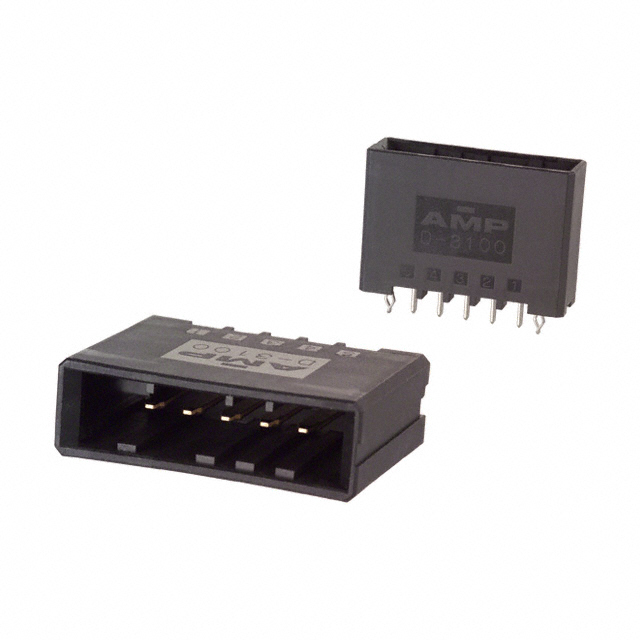

1-178315-2

Active

TE Connectivity Raychem Cable Protection

DYNAMIC S/ROW HDR 5P V ASSY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Dynamic Connector D-3000 Series +2

1-178315-2

Active

TE Connectivity Raychem Cable Protection

DYNAMIC S/ROW HDR 5P V ASSY

Deep-Dive with AI

DocumentsDatasheet Dynamic Connector D-3000 Series +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1-178315-2

Applications	General Purpose, Industrial
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Mating	0.38 µm
Contact Length - Post [x]	0.15 in
Contact Length - Post [x]	3.81 mm
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Tab
Fastening Type	Detent Lock
Insulation Color	Black
Insulation Height	0.85 in
Insulation Height	21.59 mm
Insulation Material	Thermoplastic, Glass Filled, Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	3.81 mm
Pitch - Mating	0.15 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	250 VDC

Dynamic 3000 Series Series

Headers & Wire Housings 6 POS HOUSING TAB KEY XX

...

Part	Insulation Height	Insulation Height	Style	Number of Positions	Voltage Rating	Fastening Type	Number of Positions Loaded	Contact Material	Contact Finish - Mating	Connector Type	Insulation Color	Contact Type	Applications	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Pitch - Mating	Pitch - Mating	Shrouding	Insulation Material	Number of Rows	Contact Finish - Post	Contact Shape	Contact Length - Post [x]	Contact Length - Post [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Material Flammability Rating	Termination	Mated Stacking Heights [Min] [z]	Mated Stacking Heights [Max] [z]	Note	Color	Pitch [x]	Pitch [x]	Contact Termination	Features
TE Connectivity Raychem Cable Protection 177555-2	0.774 in	19.67 mm	Board to Board Cable	12	600 V	Detent Lock	All	Copper Alloy	Gold PdNi +Gold	Header	Black	Tab	General Purpose Industrial	15 µin	0.38 µm	Through Hole Right Angle	105 ░C	-55 °C	5.08 mm	0.2 in	Shrouded - 4 Wall	Glass Filled Polyester Thermoplastic	2	Tin	Rectangular	0.15 in	3.81 mm	5.08 mm	0.2 "	UL94 V-0	Solder
TE Connectivity Raychem Cable Protection 6-178136-2
TE Connectivity Raychem Cable Protection 2-917338-3	0.85 in	21.59 mm	Board to Board Cable	4	600 V	Detent Lock	All	Copper Alloy	Gold PdNi +Gold	Header	Black	Tab	General Purpose Industrial	30 Áin	0.76 Ám	Through Hole	105 ░C	-55 °C	5.08 mm	0.2 in	Shrouded - 4 Wall	Glass Filled Polyester Thermoplastic	1	Tin	Rectangular	0.15 in	3.81 mm			UL94 V-0	Solder	31 mm	32.5 mm
TE Connectivity Raychem Cable Protection 1-178315-2	0.85 in	21.59 mm	Board to Board Cable		250 VDC	Detent Lock	All	Copper Alloy	Gold	Header	Black	Tab	General Purpose Industrial	15 µin	0.38 µm	Through Hole	105 ░C	-55 °C	3.81 mm	0.15 in	Shrouded - 4 Wall	Glass Filled Polyester Thermoplastic	1	Tin	Rectangular	0.15 in	3.81 mm			UL94 V-0	Solder
TE Connectivity Raychem Cable Protection 1-178128-6				6						Receptacle		Female Socket				Free Hanging (In-Line)	105 ░C	-55 °C				Glass Filled Polyester Thermoplastic	1											Contacts Not Included	Black	0.2 in	5.08 mm	Crimp	Polarizing Key
TE Connectivity Raychem Cable Protection 917251-5	1.244 in	31.6 mm	Board to Board Cable	20	250 VDC	Detent Lock	All	Copper Alloy		Header	Black	Tab	General Purpose Industrial	78.7 µin	2 µm	Through Hole Right Angle	105 ░C	-55 °C	3.81 mm	0.15 in	Shrouded - 4 Wall	Glass Filled Polyester Thermoplastic		Tin	Rectangular	0.15 in	3.81 mm	5.08 mm	0.2 "	UL94 V-0	Solder
TE Connectivity Raychem Cable Protection 1827150-1
TE Connectivity Raychem Cable Protection 5-178216-2	1.244 in	31.6 mm	Board to Board Cable	12	250 VDC	Detent Lock	All	Copper Alloy	Gold	Header	Black	Tab	General Purpose Industrial	15 µin	0.38 µm	Through Hole Right Angle	105 ░C	-55 °C	3.81 mm	0.15 in	Shrouded - 4 Wall	Glass Filled Polyester Thermoplastic		Tin	Rectangular	0.15 in	3.81 mm	5.08 mm	0.2 "	UL94 V-0	Solder
TE Connectivity Raychem Cable Protection 1-178298-5	0.368 in	9.35 mm	Board to Board Cable	10	250 VDC	Detent Lock	All	Copper Alloy		Header	Black	Tab	General Purpose Industrial	78.7 µin	2 µm	Through Hole Right Angle	105 ░C	-55 °C	3.81 mm	0.15 in	Shrouded - 4 Wall	Glass Filled Polyester Thermoplastic	1	Tin	Rectangular	0.15 in	3.81 mm			UL94 V-0	Solder
TE Connectivity Raychem Cable Protection 1-178128-4				4						Receptacle		Female Socket				Free Hanging (In-Line)	105 ░C	-55 °C				Glass Filled Polyester Thermoplastic	1											Contacts Not Included	Black	0.2 in	5.08 mm	Crimp	Polarizing Key

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.62
		17	$ 2.33
		102	$ 2.10

Description

General part information

Dynamic 3000 Series Series

Headers & Wire Housings 6 POS HOUSING TAB KEY XX
