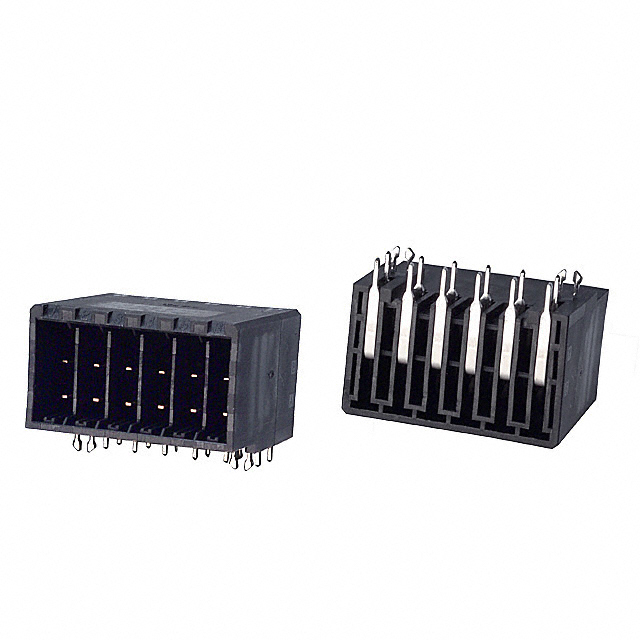

177555-2
ActiveTE Connectivity Raychem Cable Protection
DYNAMIC 3500 HDR ASSY 12P
Deep-Dive with AI
Search across all available documentation for this part.
177555-2
ActiveTE Connectivity Raychem Cable Protection
DYNAMIC 3500 HDR ASSY 12P
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 177555-2 |
|---|---|
| Applications | General Purpose, Industrial |
| Connector Type | Header |
| Contact Finish - Mating | Gold, PdNi +Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 15 µin |
| Contact Finish Thickness - Mating | 0.38 µm |
| Contact Length - Post [x] | 0.15 in |
| Contact Length - Post [x] | 3.81 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Rectangular |
| Contact Type | Tab |
| Fastening Type | Detent Lock |
| Insulation Color | Black |
| Insulation Height | 0.774 in |
| Insulation Height | 19.67 mm |
| Insulation Material | Thermoplastic, Glass Filled, Polyester |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 12 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 5.08 mm |
| Pitch - Mating | 0.2 in |
| Row Spacing - Mating [x] | 5.08 mm |
| Row Spacing - Mating [x] | 0.2 " |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 600 V |
Dynamic 3000 Series Series
Headers & Wire Housings 6 POS HOUSING TAB KEY XX
...
| Part | Insulation Height | Insulation Height | Style | Number of Positions | Voltage Rating | Fastening Type | Number of Positions Loaded | Contact Material | Contact Finish - Mating | Connector Type | Insulation Color | Contact Type | Applications | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Pitch - Mating | Pitch - Mating | Shrouding | Insulation Material | Number of Rows | Contact Finish - Post | Contact Shape | Contact Length - Post [x] | Contact Length - Post [x] | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Material Flammability Rating | Termination | Mated Stacking Heights [Min] [z] | Mated Stacking Heights [Max] [z] | Note | Color | Pitch [x] | Pitch [x] | Contact Termination | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 0.774 in | 19.67 mm | Board to Board Cable | 12 | 600 V | Detent Lock | All | Copper Alloy | Gold PdNi +Gold | Header | Black | Tab | General Purpose Industrial | 15 µin | 0.38 µm | Through Hole Right Angle | 105 ░C | -55 °C | 5.08 mm | 0.2 in | Shrouded - 4 Wall | Glass Filled Polyester Thermoplastic | 2 | Tin | Rectangular | 0.15 in | 3.81 mm | 5.08 mm | 0.2 " | UL94 V-0 | Solder | ||||||||
TE Connectivity Raychem Cable Protection | |||||||||||||||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | 0.85 in | 21.59 mm | Board to Board Cable | 4 | 600 V | Detent Lock | All | Copper Alloy | Gold PdNi +Gold | Header | Black | Tab | General Purpose Industrial | 30 Áin | 0.76 Ám | Through Hole | 105 ░C | -55 °C | 5.08 mm | 0.2 in | Shrouded - 4 Wall | Glass Filled Polyester Thermoplastic | 1 | Tin | Rectangular | 0.15 in | 3.81 mm | UL94 V-0 | Solder | 31 mm | 32.5 mm | ||||||||
TE Connectivity Raychem Cable Protection | 0.85 in | 21.59 mm | Board to Board Cable | 250 VDC | Detent Lock | All | Copper Alloy | Gold | Header | Black | Tab | General Purpose Industrial | 15 µin | 0.38 µm | Through Hole | 105 ░C | -55 °C | 3.81 mm | 0.15 in | Shrouded - 4 Wall | Glass Filled Polyester Thermoplastic | 1 | Tin | Rectangular | 0.15 in | 3.81 mm | UL94 V-0 | Solder | |||||||||||
TE Connectivity Raychem Cable Protection | 6 | Receptacle | Female Socket | Free Hanging (In-Line) | 105 ░C | -55 °C | Glass Filled Polyester Thermoplastic | 1 | Contacts Not Included | Black | 0.2 in | 5.08 mm | Crimp | Polarizing Key | |||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | 1.244 in | 31.6 mm | Board to Board Cable | 20 | 250 VDC | Detent Lock | All | Copper Alloy | Header | Black | Tab | General Purpose Industrial | 78.7 µin | 2 µm | Through Hole Right Angle | 105 ░C | -55 °C | 3.81 mm | 0.15 in | Shrouded - 4 Wall | Glass Filled Polyester Thermoplastic | Tin | Rectangular | 0.15 in | 3.81 mm | 5.08 mm | 0.2 " | UL94 V-0 | Solder | ||||||||||
TE Connectivity Raychem Cable Protection | |||||||||||||||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | 1.244 in | 31.6 mm | Board to Board Cable | 12 | 250 VDC | Detent Lock | All | Copper Alloy | Gold | Header | Black | Tab | General Purpose Industrial | 15 µin | 0.38 µm | Through Hole Right Angle | 105 ░C | -55 °C | 3.81 mm | 0.15 in | Shrouded - 4 Wall | Glass Filled Polyester Thermoplastic | Tin | Rectangular | 0.15 in | 3.81 mm | 5.08 mm | 0.2 " | UL94 V-0 | Solder | |||||||||
TE Connectivity Raychem Cable Protection | 0.368 in | 9.35 mm | Board to Board Cable | 10 | 250 VDC | Detent Lock | All | Copper Alloy | Header | Black | Tab | General Purpose Industrial | 78.7 µin | 2 µm | Through Hole Right Angle | 105 ░C | -55 °C | 3.81 mm | 0.15 in | Shrouded - 4 Wall | Glass Filled Polyester Thermoplastic | 1 | Tin | Rectangular | 0.15 in | 3.81 mm | UL94 V-0 | Solder | |||||||||||
TE Connectivity Raychem Cable Protection | 4 | Receptacle | Female Socket | Free Hanging (In-Line) | 105 ░C | -55 °C | Glass Filled Polyester Thermoplastic | 1 | Contacts Not Included | Black | 0.2 in | 5.08 mm | Crimp | Polarizing Key |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 6.78 | |
| 14 | $ 5.91 | |||
| 112 | $ 5.26 | |||
| 504 | $ 4.92 | |||
| 1008 | $ 4.39 | |||
Description
General part information
Dynamic 3000 Series Series
Headers & Wire Housings 6 POS HOUSING TAB KEY XX
