1-178128-4

Active

TE Connectivity Raychem Cable Protection

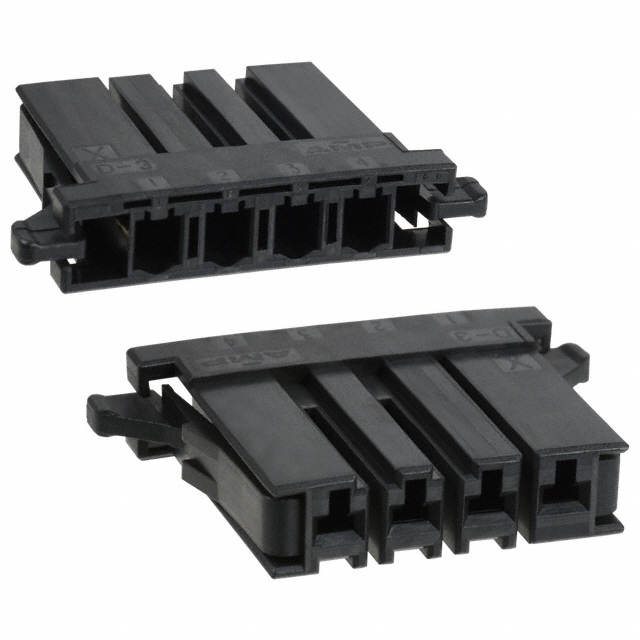

DYNAMIC 3200 REC HSG 4P SGL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSPECIAL USE DYNAMIC CONNECTORS CERTIFICATE TUV_CERT_R50093700_C1 +6

1-178128-4

Active

TE Connectivity Raychem Cable Protection

DYNAMIC 3200 REC HSG 4P SGL

Deep-Dive with AI

DocumentsSPECIAL USE DYNAMIC CONNECTORS CERTIFICATE TUV_CERT_R50093700_C1 +6

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1-178128-4

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Features	Polarizing Key
Insulation Material	Thermoplastic, Glass Filled, Polyester
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm

Dynamic 3000 Series Series

Headers & Wire Housings 6 POS HOUSING TAB KEY XX

...

Part	Insulation Height	Insulation Height	Style	Number of Positions	Voltage Rating	Fastening Type	Number of Positions Loaded	Contact Material	Contact Finish - Mating	Connector Type	Insulation Color	Contact Type	Applications	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Pitch - Mating	Pitch - Mating	Shrouding	Insulation Material	Number of Rows	Contact Finish - Post	Contact Shape	Contact Length - Post [x]	Contact Length - Post [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Material Flammability Rating	Termination	Mated Stacking Heights [Min] [z]	Mated Stacking Heights [Max] [z]	Note	Color	Pitch [x]	Pitch [x]	Contact Termination	Features
TE Connectivity Raychem Cable Protection 177555-2	0.774 in	19.67 mm	Board to Board Cable	12	600 V	Detent Lock	All	Copper Alloy	Gold PdNi +Gold	Header	Black	Tab	General Purpose Industrial	15 µin	0.38 µm	Through Hole Right Angle	105 ░C	-55 °C	5.08 mm	0.2 in	Shrouded - 4 Wall	Glass Filled Polyester Thermoplastic	2	Tin	Rectangular	0.15 in	3.81 mm	5.08 mm	0.2 "	UL94 V-0	Solder
TE Connectivity Raychem Cable Protection 6-178136-2
TE Connectivity Raychem Cable Protection 2-917338-3	0.85 in	21.59 mm	Board to Board Cable	4	600 V	Detent Lock	All	Copper Alloy	Gold PdNi +Gold	Header	Black	Tab	General Purpose Industrial	30 Áin	0.76 Ám	Through Hole	105 ░C	-55 °C	5.08 mm	0.2 in	Shrouded - 4 Wall	Glass Filled Polyester Thermoplastic	1	Tin	Rectangular	0.15 in	3.81 mm			UL94 V-0	Solder	31 mm	32.5 mm
TE Connectivity Raychem Cable Protection 1-178315-2	0.85 in	21.59 mm	Board to Board Cable		250 VDC	Detent Lock	All	Copper Alloy	Gold	Header	Black	Tab	General Purpose Industrial	15 µin	0.38 µm	Through Hole	105 ░C	-55 °C	3.81 mm	0.15 in	Shrouded - 4 Wall	Glass Filled Polyester Thermoplastic	1	Tin	Rectangular	0.15 in	3.81 mm			UL94 V-0	Solder
TE Connectivity Raychem Cable Protection 1-178128-6				6						Receptacle		Female Socket				Free Hanging (In-Line)	105 ░C	-55 °C				Glass Filled Polyester Thermoplastic	1											Contacts Not Included	Black	0.2 in	5.08 mm	Crimp	Polarizing Key
TE Connectivity Raychem Cable Protection 917251-5	1.244 in	31.6 mm	Board to Board Cable	20	250 VDC	Detent Lock	All	Copper Alloy		Header	Black	Tab	General Purpose Industrial	78.7 µin	2 µm	Through Hole Right Angle	105 ░C	-55 °C	3.81 mm	0.15 in	Shrouded - 4 Wall	Glass Filled Polyester Thermoplastic		Tin	Rectangular	0.15 in	3.81 mm	5.08 mm	0.2 "	UL94 V-0	Solder
TE Connectivity Raychem Cable Protection 1827150-1
TE Connectivity Raychem Cable Protection 5-178216-2	1.244 in	31.6 mm	Board to Board Cable	12	250 VDC	Detent Lock	All	Copper Alloy	Gold	Header	Black	Tab	General Purpose Industrial	15 µin	0.38 µm	Through Hole Right Angle	105 ░C	-55 °C	3.81 mm	0.15 in	Shrouded - 4 Wall	Glass Filled Polyester Thermoplastic		Tin	Rectangular	0.15 in	3.81 mm	5.08 mm	0.2 "	UL94 V-0	Solder
TE Connectivity Raychem Cable Protection 1-178298-5	0.368 in	9.35 mm	Board to Board Cable	10	250 VDC	Detent Lock	All	Copper Alloy		Header	Black	Tab	General Purpose Industrial	78.7 µin	2 µm	Through Hole Right Angle	105 ░C	-55 °C	3.81 mm	0.15 in	Shrouded - 4 Wall	Glass Filled Polyester Thermoplastic	1	Tin	Rectangular	0.15 in	3.81 mm			UL94 V-0	Solder
TE Connectivity Raychem Cable Protection 1-178128-4				4						Receptacle		Female Socket				Free Hanging (In-Line)	105 ░C	-55 °C				Glass Filled Polyester Thermoplastic	1											Contacts Not Included	Black	0.2 in	5.08 mm	Crimp	Polarizing Key
