Technical Specifications
Parameters and characteristics for this part
| Specification | STPSC20G12WL |
|---|---|
| Capacitance @ Vr, F | 1548 pF |
| Current - Reverse Leakage @ Vr | 150 µA |
| Mounting Type | Through Hole |
| Operating Temperature - Junction [Max] | 175 ░C |
| Operating Temperature - Junction [Min] | -55 C |
| Package / Case | TO-247-2 |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | DO-247 LL |
| Technology | SiC (Silicon Carbide) Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 1.2 kV |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
STPSC20H065CWLY Series

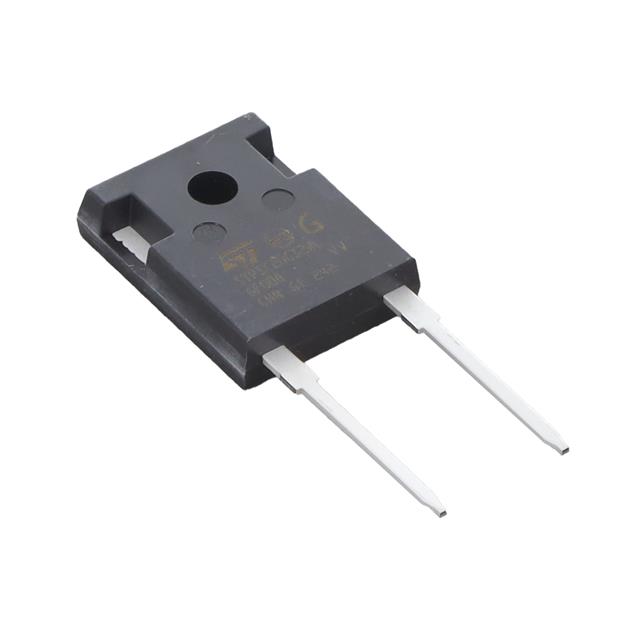

The SiC diode, available in DO-247 with long leads, is an ultrahigh performance power Schottky rectifier. It is manufactured using a silicon carbide substrate. The wide band-gap material allows the design of a low VFSchottky diode structure with a 1200 V rating. Thanks to the Schottky construction, no recovery is shown during turn-off and ringing patterns are negligible. The minimal capacitive turn-off behavior is independent of temperature.
Based on latest technology optimization, this diode has an improved forward surge current capability, making it ideal for use in PFC, where this ST SiC diode boosts the performance in hard switching conditions while bringing robustness to the design. Its high forward surge capability ensures a good robustness during transient phases.
