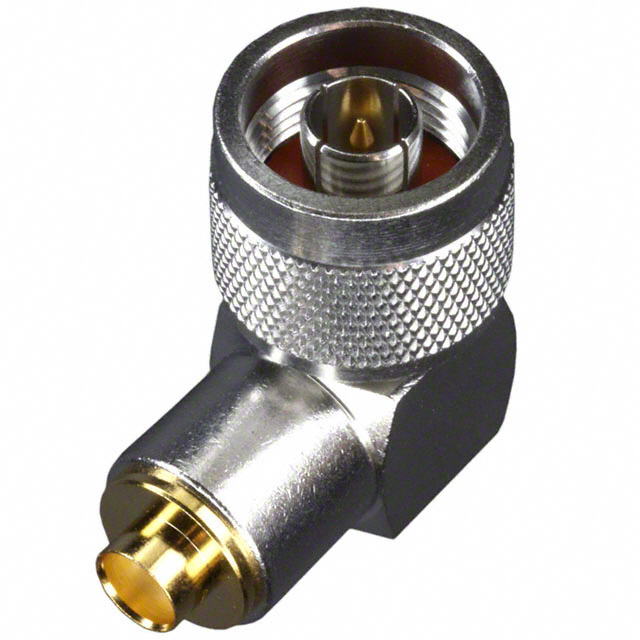

RF / COAXIAL CONNECTOR, N TYPE, RIGHT ANGLE PLUG, SOLDER, 50 OHM, RG401, PHOSPHOR BRONZE

Deep-Dive with AI

Search across all available documentation for this part.

172266

Active

Amphenol RF

RF / COAXIAL CONNECTOR, N TYPE, RIGHT ANGLE PLUG, SOLDER, 50 OHM, RG401, PHOSPHOR BRONZE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	172266

Body Finish	White Bronze
Body Material	Brass
Cable Group	0.25 in
Cable Group	RG-401
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Push On
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Insertion Loss	0.15 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	1500 V

1722 Series

Part	Shield Termination	Impedance	Contact Termination	Mounting Type	Center Contact Material	Insertion Loss	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Number of Ports	Dielectric Material	Includes	Body Finish	Connector Type	Center Contact Plating	Mating Cycles	Voltage Rating	Connector Style	Housing Color	Ingress Protection	Mounting Feature	Cable Group	Cable Group [Min]	Cable Group [Max]	Features	Cable Group
Amphenol RF 172238	Solder	50 Ohms	Crimp	Free Hanging (In-Line)	Phosphor Bronze	0.15 dB	Brass	-65 ░C	165 °C	11 GHz	1	Polytetrafluoroethylene (PTFE)	1 Connector 1 Contact 1 Insulator 1 Nut	White Bronze	Female Socket Jack	Gold	500	1500 V	N Type	Silver
Amphenol RF 172243	Solder	50 Ohms	Solder	Panel Mount Through Hole	Beryllium Copper	0.15 dB	Brass	-65 ░C	165 °C	11 GHz	1	Polytetrafluoroethylene (PTFE)	1 Connector 1 Gasket 1 Lockwasher 1 Nut	White Bronze	Female Socket Receptacle	Gold	500	1500 V	N Type	Silver	Weatherproof	Bulkhead - Front Side Nut
Amphenol RF 172215	Crimp	50 Ohms	Solder	Free Hanging (In-Line) Right Angle	Brass	0.15 dB	Brass	-65 ░C	165 °C	11 GHz	1	Polytetrafluoroethylene (PTFE)	1 Connector 1 End Cap 1 Ferrule	Nickel	Male Pin Plug	Gold	500	1500 V	N Type	Silver			Belden 7807A LMR-200
Amphenol RF 172217	Crimp	50 Ohms	Crimp		Phosphor Bronze	0.15 dB	Brass	-65 ░C	165 °C	11 GHz	1	Polytetrafluoroethylene (PTFE)	1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Lockwasher 1 Nut	White Bronze	Female Socket Jack	Gold	500	1500 V	N Type	Silver		Bulkhead - Front Side Nut	LMR-200
Amphenol RF 172216	Crimp	50 Ohms	Crimp	Free Hanging (In-Line)	Phosphor Bronze	0.15 dB	Brass	-65 ░C	165 °C	11 GHz	1	Polytetrafluoroethylene (PTFE)	1 Connector 1 Contact 1 Ferrule	White Bronze	Female Socket Jack	Gold	500	1500 V	N Type	Silver			Belden 7807A LMR-200
Amphenol RF 172211	Solder	50 Ohms	Crimp	Free Hanging (In-Line)	Brass	0.15 dB	Brass	-65 ░C	165 °C	11 GHz	1	Polytetrafluoroethylene (PTFE)	1 Connector 1 Contact 1 Insulator 1 Nut	White Bronze	Male Pin Plug	Gold	500	1500 V	N Type	Silver	Weatherproof		RG-405 Semi Rigid	0.085 in	0.086 in
Amphenol RF 172236	Solder	50 Ohms	Solder	Free Hanging (In-Line) Right Angle	Brass	0.15 dB	Brass	-65 ░C	165 °C	11 GHz	1	Polytetrafluoroethylene (PTFE)	1 Connector 1 End Cap	White Bronze	Male Pin Plug	Gold	500	1500 V	N Type	Silver	Weatherproof
Amphenol RF 172235	Solder	50 Ohms	Solder	Free Hanging (In-Line) Right Angle	Brass	0.15 dB	Brass	-65 ░C	165 °C	11 GHz	1	Polytetrafluoroethylene (PTFE)	1 Connector 1 End Cap	White Bronze	Male Pin Plug	Gold	500	1500 V	N Type	Silver			RG-405 Semi Rigid	0.085 in	0.086 in
Amphenol RF 172254	Solder	50 Ohms	Solder		Phosphor Bronze	0.15 dB	Brass	-65 ░C	165 °C	11 GHz	1	Polytetrafluoroethylene (PTFE)	1 Connector 1 Gasket	White Bronze	Female Socket Receptacle	Gold	500	1500 V	N Type	Silver	Weatherproof	Flange				Extended Insulation
Amphenol RF 172266	Solder	50 Ohms	Push On	Free Hanging (In-Line) Right Angle	Phosphor Bronze	0.15 dB	Brass	-65 ░C	165 °C	11 GHz	1	Polytetrafluoroethylene (PTFE)		White Bronze	Male Pin Plug	Gold	500	1500 V	N Type	Silver			RG-401				0.25 in
