172215

Active

Amphenol RF

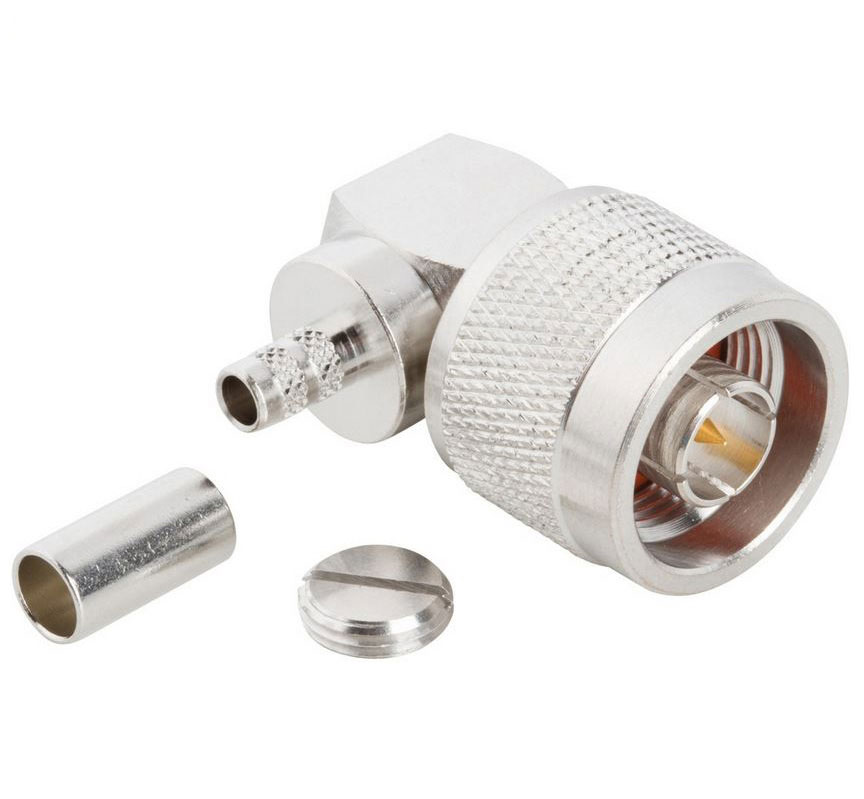

CONN N PLUG R/A 50 OHM SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

172215

Active

Amphenol RF

CONN N PLUG R/A 50 OHM SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	172215

Body Finish	Nickel
Body Material	Brass
Cable Group	Belden 7807A, LMR-200
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Connector, 1 Ferrule, 1 End Cap
Insertion Loss	0.15 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	1500 V

1722 Series

Part	Shield Termination	Impedance	Contact Termination	Mounting Type	Center Contact Material	Insertion Loss	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Number of Ports	Dielectric Material	Includes	Body Finish	Connector Type	Center Contact Plating	Mating Cycles	Voltage Rating	Connector Style	Housing Color	Ingress Protection	Mounting Feature	Cable Group	Cable Group [Min]	Cable Group [Max]	Features	Cable Group
Amphenol RF 172238	Solder	50 Ohms	Crimp	Free Hanging (In-Line)	Phosphor Bronze	0.15 dB	Brass	-65 ░C	165 °C	11 GHz	1	Polytetrafluoroethylene (PTFE)	1 Connector 1 Contact 1 Insulator 1 Nut	White Bronze	Female Socket Jack	Gold	500	1500 V	N Type	Silver
Amphenol RF 172243	Solder	50 Ohms	Solder	Panel Mount Through Hole	Beryllium Copper	0.15 dB	Brass	-65 ░C	165 °C	11 GHz	1	Polytetrafluoroethylene (PTFE)	1 Connector 1 Gasket 1 Lockwasher 1 Nut	White Bronze	Female Socket Receptacle	Gold	500	1500 V	N Type	Silver	Weatherproof	Bulkhead - Front Side Nut
Amphenol RF 172215	Crimp	50 Ohms	Solder	Free Hanging (In-Line) Right Angle	Brass	0.15 dB	Brass	-65 ░C	165 °C	11 GHz	1	Polytetrafluoroethylene (PTFE)	1 Connector 1 End Cap 1 Ferrule	Nickel	Male Pin Plug	Gold	500	1500 V	N Type	Silver			Belden 7807A LMR-200
Amphenol RF 172217	Crimp	50 Ohms	Crimp		Phosphor Bronze	0.15 dB	Brass	-65 ░C	165 °C	11 GHz	1	Polytetrafluoroethylene (PTFE)	1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Lockwasher 1 Nut	White Bronze	Female Socket Jack	Gold	500	1500 V	N Type	Silver		Bulkhead - Front Side Nut	LMR-200
Amphenol RF 172216	Crimp	50 Ohms	Crimp	Free Hanging (In-Line)	Phosphor Bronze	0.15 dB	Brass	-65 ░C	165 °C	11 GHz	1	Polytetrafluoroethylene (PTFE)	1 Connector 1 Contact 1 Ferrule	White Bronze	Female Socket Jack	Gold	500	1500 V	N Type	Silver			Belden 7807A LMR-200
Amphenol RF 172211	Solder	50 Ohms	Crimp	Free Hanging (In-Line)	Brass	0.15 dB	Brass	-65 ░C	165 °C	11 GHz	1	Polytetrafluoroethylene (PTFE)	1 Connector 1 Contact 1 Insulator 1 Nut	White Bronze	Male Pin Plug	Gold	500	1500 V	N Type	Silver	Weatherproof		RG-405 Semi Rigid	0.085 in	0.086 in
Amphenol RF 172236	Solder	50 Ohms	Solder	Free Hanging (In-Line) Right Angle	Brass	0.15 dB	Brass	-65 ░C	165 °C	11 GHz	1	Polytetrafluoroethylene (PTFE)	1 Connector 1 End Cap	White Bronze	Male Pin Plug	Gold	500	1500 V	N Type	Silver	Weatherproof
Amphenol RF 172235	Solder	50 Ohms	Solder	Free Hanging (In-Line) Right Angle	Brass	0.15 dB	Brass	-65 ░C	165 °C	11 GHz	1	Polytetrafluoroethylene (PTFE)	1 Connector 1 End Cap	White Bronze	Male Pin Plug	Gold	500	1500 V	N Type	Silver			RG-405 Semi Rigid	0.085 in	0.086 in
Amphenol RF 172254	Solder	50 Ohms	Solder		Phosphor Bronze	0.15 dB	Brass	-65 ░C	165 °C	11 GHz	1	Polytetrafluoroethylene (PTFE)	1 Connector 1 Gasket	White Bronze	Female Socket Receptacle	Gold	500	1500 V	N Type	Silver	Weatherproof	Flange				Extended Insulation
Amphenol RF 172266	Solder	50 Ohms	Push On	Free Hanging (In-Line) Right Angle	Phosphor Bronze	0.15 dB	Brass	-65 ░C	165 °C	11 GHz	1	Polytetrafluoroethylene (PTFE)		White Bronze	Male Pin Plug	Gold	500	1500 V	N Type	Silver			RG-401				0.25 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 24.78
		10	$ 20.96
		25	$ 19.80
		50	$ 19.01
		100	$ 18.55
		300	$ 16.88
		500	$ 16.82

Description

General part information

1722 Series

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
