172236
ActiveAmphenol RF

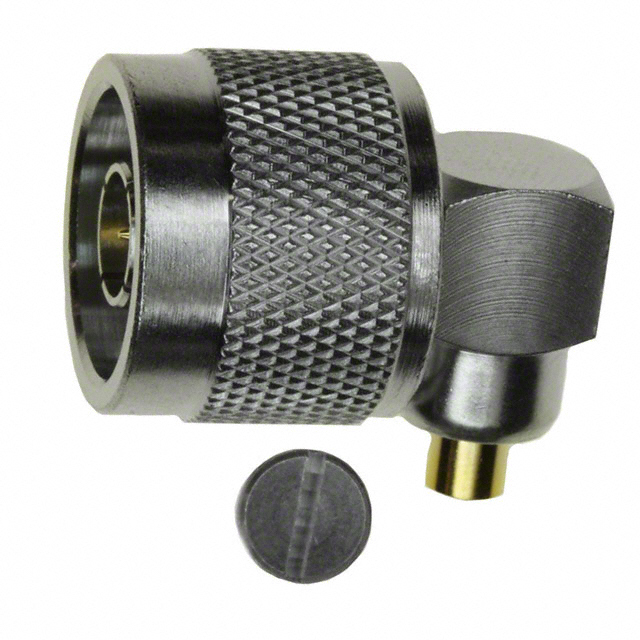

CONN N PLUG R/A 50 OHM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
172236
ActiveAmphenol RF
CONN N PLUG R/A 50 OHM SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 172236 |
|---|---|
| Body Finish | White Bronze |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | N Type |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 11 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Includes | 1 End Cap, 1 Connector |
| Ingress Protection | Weatherproof |
| Insertion Loss | 0.15 dB |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
| Voltage Rating | 1500 V |
1722 Series
| Part | Shield Termination | Impedance | Contact Termination | Mounting Type | Center Contact Material | Insertion Loss | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Frequency - Max [Max] | Number of Ports | Dielectric Material | Includes | Body Finish | Connector Type | Center Contact Plating | Mating Cycles | Voltage Rating | Connector Style | Housing Color | Ingress Protection | Mounting Feature | Cable Group | Cable Group [Min] | Cable Group [Max] | Features | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol RF | Solder | 50 Ohms | Crimp | Free Hanging (In-Line) | Phosphor Bronze | 0.15 dB | Brass | -65 ░C | 165 °C | 11 GHz | 1 | Polytetrafluoroethylene (PTFE) | 1 Connector 1 Contact 1 Insulator 1 Nut | White Bronze | Female Socket Jack | Gold | 500 | 1500 V | N Type | Silver | |||||||
Amphenol RF | Solder | 50 Ohms | Solder | Panel Mount Through Hole | Beryllium Copper | 0.15 dB | Brass | -65 ░C | 165 °C | 11 GHz | 1 | Polytetrafluoroethylene (PTFE) | 1 Connector 1 Gasket 1 Lockwasher 1 Nut | White Bronze | Female Socket Receptacle | Gold | 500 | 1500 V | N Type | Silver | Weatherproof | Bulkhead - Front Side Nut | |||||
Amphenol RF | Crimp | 50 Ohms | Solder | Free Hanging (In-Line) Right Angle | Brass | 0.15 dB | Brass | -65 ░C | 165 °C | 11 GHz | 1 | Polytetrafluoroethylene (PTFE) | 1 Connector 1 End Cap 1 Ferrule | Nickel | Male Pin Plug | Gold | 500 | 1500 V | N Type | Silver | Belden 7807A LMR-200 | ||||||
Amphenol RF | Crimp | 50 Ohms | Crimp | Phosphor Bronze | 0.15 dB | Brass | -65 ░C | 165 °C | 11 GHz | 1 | Polytetrafluoroethylene (PTFE) | 1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Lockwasher 1 Nut | White Bronze | Female Socket Jack | Gold | 500 | 1500 V | N Type | Silver | Bulkhead - Front Side Nut | LMR-200 | ||||||
Amphenol RF | Crimp | 50 Ohms | Crimp | Free Hanging (In-Line) | Phosphor Bronze | 0.15 dB | Brass | -65 ░C | 165 °C | 11 GHz | 1 | Polytetrafluoroethylene (PTFE) | 1 Connector 1 Contact 1 Ferrule | White Bronze | Female Socket Jack | Gold | 500 | 1500 V | N Type | Silver | Belden 7807A LMR-200 | ||||||
Amphenol RF | Solder | 50 Ohms | Crimp | Free Hanging (In-Line) | Brass | 0.15 dB | Brass | -65 ░C | 165 °C | 11 GHz | 1 | Polytetrafluoroethylene (PTFE) | 1 Connector 1 Contact 1 Insulator 1 Nut | White Bronze | Male Pin Plug | Gold | 500 | 1500 V | N Type | Silver | Weatherproof | RG-405 Semi Rigid | 0.085 in | 0.086 in | |||
Amphenol RF | Solder | 50 Ohms | Solder | Free Hanging (In-Line) Right Angle | Brass | 0.15 dB | Brass | -65 ░C | 165 °C | 11 GHz | 1 | Polytetrafluoroethylene (PTFE) | 1 Connector 1 End Cap | White Bronze | Male Pin Plug | Gold | 500 | 1500 V | N Type | Silver | Weatherproof | ||||||
Amphenol RF | Solder | 50 Ohms | Solder | Free Hanging (In-Line) Right Angle | Brass | 0.15 dB | Brass | -65 ░C | 165 °C | 11 GHz | 1 | Polytetrafluoroethylene (PTFE) | 1 Connector 1 End Cap | White Bronze | Male Pin Plug | Gold | 500 | 1500 V | N Type | Silver | RG-405 Semi Rigid | 0.085 in | 0.086 in | ||||
Amphenol RF | Solder | 50 Ohms | Solder | Phosphor Bronze | 0.15 dB | Brass | -65 ░C | 165 °C | 11 GHz | 1 | Polytetrafluoroethylene (PTFE) | 1 Connector 1 Gasket | White Bronze | Female Socket Receptacle | Gold | 500 | 1500 V | N Type | Silver | Weatherproof | Flange | Extended Insulation | |||||
Amphenol RF | Solder | 50 Ohms | Push On | Free Hanging (In-Line) Right Angle | Phosphor Bronze | 0.15 dB | Brass | -65 ░C | 165 °C | 11 GHz | 1 | Polytetrafluoroethylene (PTFE) | White Bronze | Male Pin Plug | Gold | 500 | 1500 V | N Type | Silver | RG-401 | 0.25 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 15.81 | |
| 10 | $ 13.43 | |||
| 25 | $ 12.59 | |||
| 50 | $ 11.99 | |||
| 100 | $ 11.42 | |||
| 300 | $ 10.57 | |||
| 500 | $ 10.19 | |||
| 1000 | $ 9.71 | |||
Description
General part information
1722 Series
N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
