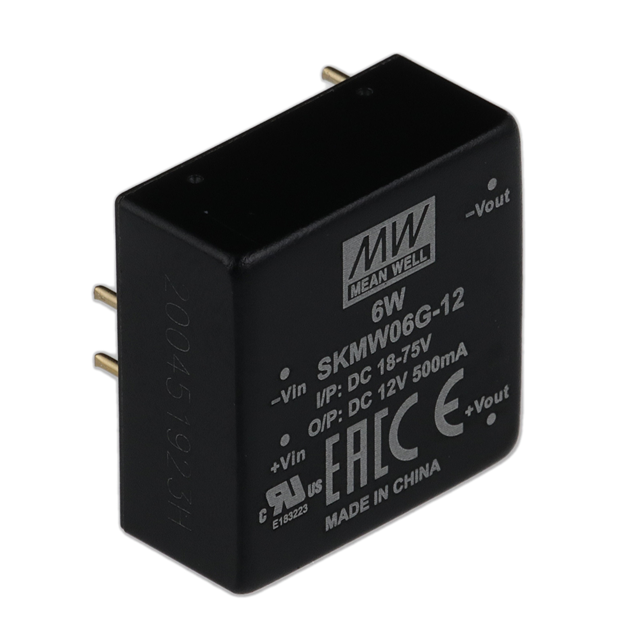

SKMW06G-12
ObsoleteMEAN WELL USA Inc.
DC DC CONVERTER 12V 6W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SKMW06G-12
ObsoleteMEAN WELL USA Inc.
DC DC CONVERTER 12V 6W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SKMW06G-12 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, EAC, cURus |
| Current - Output (Max) [Max] | 500 mA |
| Efficiency | 85 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4 Lead |
| Package / Case | 5-DIP Module |
| Power (Watts) | 6 W |
| Size / Dimension [x] | 25.4 mm |
| Size / Dimension [x] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 0.46 in |
| Size / Dimension [z] | 11.7 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 12 V |
SKMW06 Series
| Part | Power (Watts) | Applications | Voltage - Isolation | Voltage - Input (Max) [Max] | Number of Outputs | Efficiency | Voltage - Output 1 | Approval Agency | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Type | Voltage - Input (Min) [Min] | Current - Output (Max) [Max] | Package / Case | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MEAN WELL USA Inc. | 6 W | ITE (Commercial) | 1.5 kV | 75 V | 1 | 86 % | 15 V | CE cURus EAC | Through Hole | 85 °C | -40 °C | 25.4 mm | 0.46 in | 25.4 mm | 11.7 mm | 25.4 mm | 25.4 mm | Isolated Module | 18 V | 400 mA | 4 Lead | 5-DIP Module |
MEAN WELL USA Inc. | 6 W | ITE (Commercial) | 1.5 kV | 36 V | 1 | 81 % | 5 V | CE cURus EAC | Through Hole | 85 °C | -40 °C | 25.4 mm | 0.46 in | 25.4 mm | 11.7 mm | 25.4 mm | 25.4 mm | Isolated Module | 9 V | 1.2 A | 4 Lead | 5-DIP Module |
MEAN WELL USA Inc. | 6 W | ITE (Commercial) | 1.5 kV | 75 V | 1 | 86 % | 24 V | CE cURus EAC | Through Hole | 85 °C | -40 °C | 25.4 mm | 0.46 in | 25.4 mm | 11.7 mm | 25.4 mm | 25.4 mm | Isolated Module | 18 V | 250 mA | 4 Lead | 5-DIP Module |
MEAN WELL USA Inc. | 6 W | ITE (Commercial) | 1.5 kV | 36 V | 1 | 83 % | 9 V | CE cURus EAC | Through Hole | 85 °C | -40 °C | 25.4 mm | 0.46 in | 25.4 mm | 11.7 mm | 25.4 mm | 25.4 mm | Isolated Module | 9 V | 667 mA | 4 Lead | 5-DIP Module |
MEAN WELL USA Inc. | 6 W | ITE (Commercial) | 1.5 kV | 75 V | 1 | 81 % | 5 V | CE cURus EAC | Through Hole | 85 °C | -40 °C | 25.4 mm | 0.46 in | 25.4 mm | 11.7 mm | 25.4 mm | 25.4 mm | Isolated Module | 18 V | 1.2 A | 4 Lead | 5-DIP Module |
MEAN WELL USA Inc. | 6 W | ITE (Commercial) | 1.5 kV | 75 V | 1 | 85 % | 12 V | CE cURus EAC | Through Hole | 85 °C | -40 °C | 25.4 mm | 0.46 in | 25.4 mm | 11.7 mm | 25.4 mm | 25.4 mm | Isolated Module | 18 V | 500 mA | 4 Lead | 5-DIP Module |
MEAN WELL USA Inc. | 5 W | ITE (Commercial) | 1.5 kV | 36 V | 1 | 77 % | 3.3 V | CE cURus EAC | Through Hole | 85 °C | -40 °C | 25.4 mm | 0.46 in | 25.4 mm | 11.7 mm | 25.4 mm | 25.4 mm | Isolated Module | 9 V | 1.5 A | 4 Lead | 5-DIP Module |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SKMW06 Series
Isolated Module DC DC Converter 1 Output 12V 500mA 18V - 75V Input
