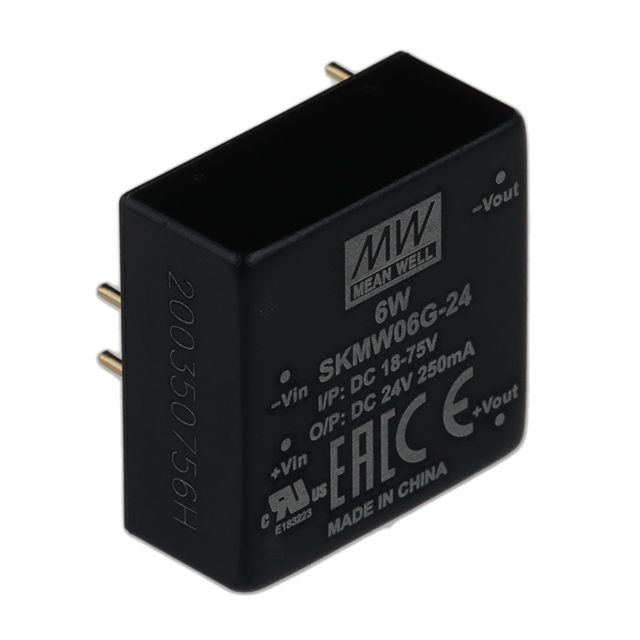

Specification	SKMW06G-24

Applications	ITE (Commercial)
Approval Agency	EAC, CE, cURus
Current - Output (Max)	250 mA
Efficiency	86 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package Leads	4 Leads
Package Name	5-DIP Module
Power (Watts)	6 W
Size / Dimension Height	0.46 in
Size / Dimension Length	1 in
Size / Dimension Width	1 in
Type	Isolated Module
Voltage - Input (Max)	75 V
Voltage - Input (Min)	18 V
Voltage - Isolation	1500 Vrns
Voltage - Output 1	24 V

SKMW06 Series

Part	Package Leads	Package Name	Voltage - Input (Max)	Approval Agency	Current - Output (Max)	Applications	Voltage - Input (Min)	Number of Outputs	Voltage - Output 1	Efficiency	Type	Power (Watts)	Voltage - Isolation	Operating Temperature (Max)	Operating Temperature (Min)	Size / Dimension Length	Size / Dimension Width	Size / Dimension Height	Mounting Type
MEAN WELL USA Inc. SKMW06G-15	4 Leads	5-DIP Module	75 V	CE cURus EAC	400 mA	ITE (Commercial)	18 V	1	15 V	86 %	Isolated Module	6 W	1500 Vrns	85 °C	-40 °C	1 in	1 in	0.46 in	Through Hole
MEAN WELL USA Inc. SKMW06F-05	4 Leads	5-DIP Module	36 V	CE cURus EAC	1.2 A	ITE (Commercial)	9 V	1	5 V	81 %	Isolated Module	6 W	1500 Vrns	85 °C	-40 °C	1 in	1 in	0.46 in	Through Hole
MEAN WELL USA Inc. SKMW06G-24	4 Leads	5-DIP Module	75 V	CE cURus EAC	250 mA	ITE (Commercial)	18 V	1	24 V	86 %	Isolated Module	6 W	1500 Vrns	85 °C	-40 °C	1 in	1 in	0.46 in	Through Hole
MEAN WELL USA Inc. SKMW06F-09	4 Leads	5-DIP Module	36 V	CE cURus EAC	667 mA	ITE (Commercial)	9 V	1	9 V	83 %	Isolated Module	6 W	1500 Vrns	85 °C	-40 °C	1 in	1 in	0.46 in	Through Hole
MEAN WELL USA Inc. SKMW06G-05	4 Leads	5-DIP Module	75 V	CE cURus EAC	1.2 A	ITE (Commercial)	18 V	1	5 V	81 %	Isolated Module	6 W	1500 Vrns	85 °C	-40 °C	1 in	1 in	0.46 in	Through Hole
MEAN WELL USA Inc. SKMW06F-24	4 Leads	5-DIP Module	36 V	CE cURus EAC	250 mA	ITE (Commercial)	9 V	1	24 V	86 %	Isolated Module	6 W	1500 Vrns	85 °C	-40 °C	1 in	1 in	0.46 in	Through Hole
MEAN WELL USA Inc. SKMW06G-12	4 Leads	5-DIP Module	75 V	CE cURus EAC	500 mA	ITE (Commercial)	18 V	1	12 V	85 %	Isolated Module	6 W	1500 Vrns	85 °C	-40 °C	1 in	1 in	0.46 in	Through Hole
MEAN WELL USA Inc. SKMW06F-03	4 Leads	5-DIP Module	36 V	CE cURus EAC	1.5 A	ITE (Commercial)	9 V	1	3.3 V	77 %	Isolated Module	5 W	1500 Vrns	85 °C	-40 °C	1 in	1 in	0.46 in	Through Hole
MEAN WELL USA Inc. SKMW06F-15	4 Leads	5-DIP Module	36 V	CE cURus EAC	400 mA	ITE (Commercial)	9 V	1	15 V	85 %	Isolated Module	6 W	1500 Vrns	85 °C	-40 °C	1 in	1 in	0.46 in	Through Hole
MEAN WELL USA Inc. SKMW06G-03	4 Leads	5-DIP Module	75 V	CE cURus EAC	1.5 A	ITE (Commercial)	18 V	1	3.3 V	77 %	Isolated Module	5 W	1500 Vrns	85 °C	-40 °C	1 in	1 in	0.46 in	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

SKMW06G-24 | Datasheet
