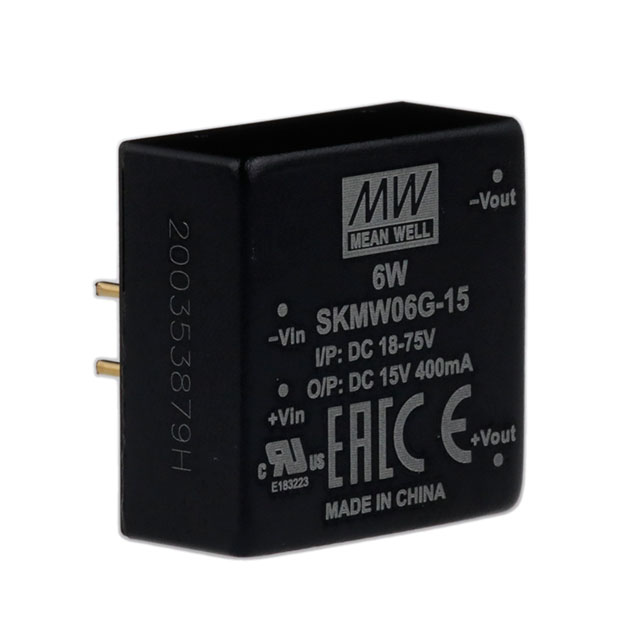

SKMW06G-15

Obsolete

MEAN WELL USA Inc.

DC DC CONVERTER 15V 6W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SKMW06G-15

Obsolete

MEAN WELL USA Inc.

DC DC CONVERTER 15V 6W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SKMW06G-15

Applications	ITE (Commercial)
Approval Agency	CE, EAC, cURus
Current - Output (Max) [Max]	400 mA
Efficiency	86 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	4 Lead
Package / Case	5-DIP Module
Power (Watts)	6 W
Size / Dimension [x]	25.4 mm
Size / Dimension [x]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.46 in
Size / Dimension [z]	11.7 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	15 V

SKMW06 Series

Part	Power (Watts)	Applications	Voltage - Isolation	Voltage - Input (Max) [Max]	Number of Outputs	Efficiency	Voltage - Output 1	Approval Agency	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Type	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Package / Case	Package / Case
MEAN WELL USA Inc. SKMW06G-15	6 W	ITE (Commercial)	1.5 kV	75 V	1	86 %	15 V	CE cURus EAC	Through Hole	85 °C	-40 °C	25.4 mm	0.46 in	25.4 mm	11.7 mm	25.4 mm	25.4 mm	Isolated Module	18 V	400 mA	4 Lead	5-DIP Module
MEAN WELL USA Inc. SKMW06F-05	6 W	ITE (Commercial)	1.5 kV	36 V	1	81 %	5 V	CE cURus EAC	Through Hole	85 °C	-40 °C	25.4 mm	0.46 in	25.4 mm	11.7 mm	25.4 mm	25.4 mm	Isolated Module	9 V	1.2 A	4 Lead	5-DIP Module
MEAN WELL USA Inc. SKMW06G-24	6 W	ITE (Commercial)	1.5 kV	75 V	1	86 %	24 V	CE cURus EAC	Through Hole	85 °C	-40 °C	25.4 mm	0.46 in	25.4 mm	11.7 mm	25.4 mm	25.4 mm	Isolated Module	18 V	250 mA	4 Lead	5-DIP Module
MEAN WELL USA Inc. SKMW06F-09	6 W	ITE (Commercial)	1.5 kV	36 V	1	83 %	9 V	CE cURus EAC	Through Hole	85 °C	-40 °C	25.4 mm	0.46 in	25.4 mm	11.7 mm	25.4 mm	25.4 mm	Isolated Module	9 V	667 mA	4 Lead	5-DIP Module
MEAN WELL USA Inc. SKMW06G-05	6 W	ITE (Commercial)	1.5 kV	75 V	1	81 %	5 V	CE cURus EAC	Through Hole	85 °C	-40 °C	25.4 mm	0.46 in	25.4 mm	11.7 mm	25.4 mm	25.4 mm	Isolated Module	18 V	1.2 A	4 Lead	5-DIP Module
MEAN WELL USA Inc. SKMW06G-12	6 W	ITE (Commercial)	1.5 kV	75 V	1	85 %	12 V	CE cURus EAC	Through Hole	85 °C	-40 °C	25.4 mm	0.46 in	25.4 mm	11.7 mm	25.4 mm	25.4 mm	Isolated Module	18 V	500 mA	4 Lead	5-DIP Module
MEAN WELL USA Inc. SKMW06F-03	5 W	ITE (Commercial)	1.5 kV	36 V	1	77 %	3.3 V	CE cURus EAC	Through Hole	85 °C	-40 °C	25.4 mm	0.46 in	25.4 mm	11.7 mm	25.4 mm	25.4 mm	Isolated Module	9 V	1.5 A	4 Lead	5-DIP Module

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SKMW06 Series

Isolated Module DC DC Converter 1 Output 15V 400mA 18V - 75V Input
