Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DAC5573EVM | DAC5573 Series |
|---|---|---|
| Architecture | - | String DAC |
| DAC Type | Voltage | Voltage |
| Data Interface | I2C | I2C |
| Differential Output | - | False |
| INL/DNL (LSB) | - | 1.1 - 1.4 LSB |
| INL/DNL (LSB) | - | -1.4 - -1.1 LSB |
| Mounting Type | - | Surface Mount |
| Number of Bits | 8 | 8 |
| Number of D/A Converters | - | 4 |
| Number of DAC's | 4 | 4 |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 105 ░C |
| Output Type | - | Voltage - Buffered |
| Package / Case | - | 0.173 " |
| Package / Case | - | 16-TSSOP |
| Package / Case | - | 4.4 mm |
| Reference Type | - | External |
| Sampling Rate (Per Second) | 188k | 188k |
| Settling Time | 6 µs | 6 - 12 µs |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 16-TSSOP |
| Utilized IC / Part | DAC5573 | DAC5573 |
| Voltage - Supply, Analog | - | 5.5 V |
| Voltage - Supply, Analog | - | 2.7 V |
| Voltage - Supply, Digital | - | 5.5 V |
| Voltage - Supply, Digital | - | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
DAC5573 Series
8-bit, quad DAC with I2C Interface in a tiny TSSOP package
| Part | Package / Case [x] | Package / Case | Package / Case [x] | INL/DNL (LSB) [Max] | INL/DNL (LSB) [Min] | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | Number of Bits | Architecture | Settling Time | Differential Output | Data Interface | Supplier Device Package | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Supply, Analog [Max] | Voltage - Supply, Analog [Min] | Number of D/A Converters | Mounting Type | Output Type | Reference Type | Sampling Rate (Per Second) | Supplied Contents | Utilized IC / Part | Number of DAC's | DAC Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0.173 " | 16-TSSOP | 4.4 mm | 1.1 LSB, 1.4 LSB | -1.4 LSB, -1.1 LSB | 5.5 V | 2.7 V | 8 | String DAC | 12 µs | I2C | 16-TSSOP | -40 °C | 105 ░C | 5.5 V | 2.7 V | 4 | Surface Mount | Voltage - Buffered | External | |||||||
Texas Instruments DAC5573IPWRThe DAC5573 is a low-power, quad channel, 8-bit buffered voltage output DAC. Its on-chip precision output amplifier allows rail-to-rail output swing. The DAC5573 utilizes an I2C-compatible two-wire serial interface supporting high-speed interface mode with address support of up to sixteen DAC5573s for a total of 64 channels on the bus.
The DAC5573 requires an external reference voltage to set the output range of the DAC. The DAC5573 incorporates a power-on-reset circuit that ensures that the DAC output powers up at zero volts and remains there until a valid write takes place in the device. The DAC5573 contains a power-down feature, accessed via the internal control register, that reduces the current consumption of the device to 200 nA at 5 V.
The low power consumption of this part in normal operation makes it ideally suited to portable battery operated equipment. The power consumption is less than 3 mW at VDD=5 V reducing to 1 µW in power-down mode
The DAC5573 is available in a 16-lead TSSOP package.
The DAC5573 is a low-power, quad channel, 8-bit buffered voltage output DAC. Its on-chip precision output amplifier allows rail-to-rail output swing. The DAC5573 utilizes an I2C-compatible two-wire serial interface supporting high-speed interface mode with address support of up to sixteen DAC5573s for a total of 64 channels on the bus.
The DAC5573 requires an external reference voltage to set the output range of the DAC. The DAC5573 incorporates a power-on-reset circuit that ensures that the DAC output powers up at zero volts and remains there until a valid write takes place in the device. The DAC5573 contains a power-down feature, accessed via the internal control register, that reduces the current consumption of the device to 200 nA at 5 V.
The low power consumption of this part in normal operation makes it ideally suited to portable battery operated equipment. The power consumption is less than 3 mW at VDD=5 V reducing to 1 µW in power-down mode
The DAC5573 is available in a 16-lead TSSOP package. | 0.173 " | 16-TSSOP | 4.4 mm | 1.1 LSB, 1.4 LSB | -1.4 LSB, -1.1 LSB | 5.5 V | 2.7 V | 8 | String DAC | 12 µs | I2C | 16-TSSOP | -40 °C | 105 ░C | 5.5 V | 2.7 V | 4 | Surface Mount | Voltage - Buffered | External | ||||||
0.173 " | 16-TSSOP | 4.4 mm | 1.1 LSB, 1.4 LSB | -1.4 LSB, -1.1 LSB | 5.5 V | 2.7 V | 8 | String DAC | 12 µs | I2C | 16-TSSOP | -40 °C | 105 ░C | 5.5 V | 2.7 V | 4 | Surface Mount | Voltage - Buffered | External | |||||||
Texas Instruments DAC5573IPWThe DAC5573 is a low-power, quad channel, 8-bit buffered voltage output DAC. Its on-chip precision output amplifier allows rail-to-rail output swing. The DAC5573 utilizes an I2C-compatible two-wire serial interface supporting high-speed interface mode with address support of up to sixteen DAC5573s for a total of 64 channels on the bus.
The DAC5573 requires an external reference voltage to set the output range of the DAC. The DAC5573 incorporates a power-on-reset circuit that ensures that the DAC output powers up at zero volts and remains there until a valid write takes place in the device. The DAC5573 contains a power-down feature, accessed via the internal control register, that reduces the current consumption of the device to 200 nA at 5 V.
The low power consumption of this part in normal operation makes it ideally suited to portable battery operated equipment. The power consumption is less than 3 mW at VDD=5 V reducing to 1 µW in power-down mode
The DAC5573 is available in a 16-lead TSSOP package.
The DAC5573 is a low-power, quad channel, 8-bit buffered voltage output DAC. Its on-chip precision output amplifier allows rail-to-rail output swing. The DAC5573 utilizes an I2C-compatible two-wire serial interface supporting high-speed interface mode with address support of up to sixteen DAC5573s for a total of 64 channels on the bus.
The DAC5573 requires an external reference voltage to set the output range of the DAC. The DAC5573 incorporates a power-on-reset circuit that ensures that the DAC output powers up at zero volts and remains there until a valid write takes place in the device. The DAC5573 contains a power-down feature, accessed via the internal control register, that reduces the current consumption of the device to 200 nA at 5 V.
The low power consumption of this part in normal operation makes it ideally suited to portable battery operated equipment. The power consumption is less than 3 mW at VDD=5 V reducing to 1 µW in power-down mode
The DAC5573 is available in a 16-lead TSSOP package. | 0.173 " | 16-TSSOP | 4.4 mm | 1.1 LSB, 1.4 LSB | -1.4 LSB, -1.1 LSB | 5.5 V | 2.7 V | 8 | String DAC | 12 µs | I2C | 16-TSSOP | -40 °C | 105 ░C | 5.5 V | 2.7 V | 4 | Surface Mount | Voltage - Buffered | External | ||||||

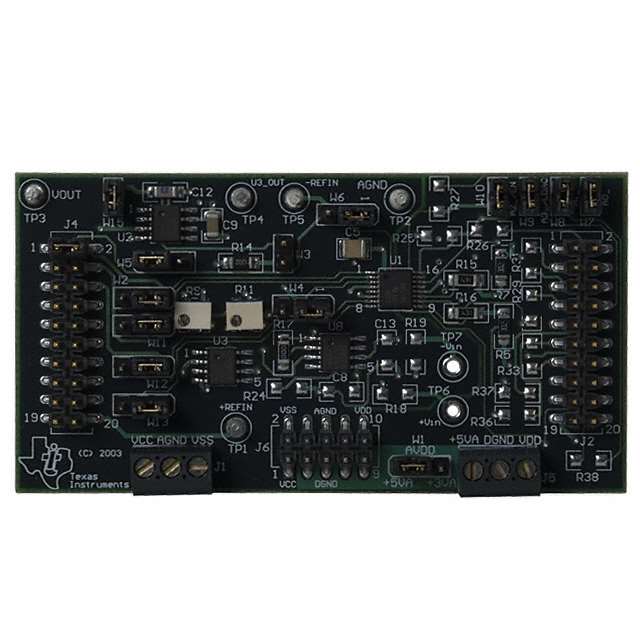

Texas Instruments DAC5573EVMDAC5573 8 Bit 188k Samples Per Second Digital to Analog Converter (DAC) Evaluation Board | 8 | 6 µs | I2C | 188k | Board(s) | DAC5573 | 4 | Voltage |
Description
General part information
DAC5573 Series
The DAC5573 is a low-power, quad channel, 8-bit buffered voltage output DAC. Its on-chip precision output amplifier allows rail-to-rail output swing. The DAC5573 utilizes an I2C-compatible two-wire serial interface supporting high-speed interface mode with address support of up to sixteen DAC5573s for a total of 64 channels on the bus.
The DAC5573 requires an external reference voltage to set the output range of the DAC. The DAC5573 incorporates a power-on-reset circuit that ensures that the DAC output powers up at zero volts and remains there until a valid write takes place in the device. The DAC5573 contains a power-down feature, accessed via the internal control register, that reduces the current consumption of the device to 200 nA at 5 V.
The low power consumption of this part in normal operation makes it ideally suited to portable battery operated equipment. The power consumption is less than 3 mW at VDD=5 V reducing to 1 µW in power-down mode
