VEL18US090-EU-JA

Active

XP Power

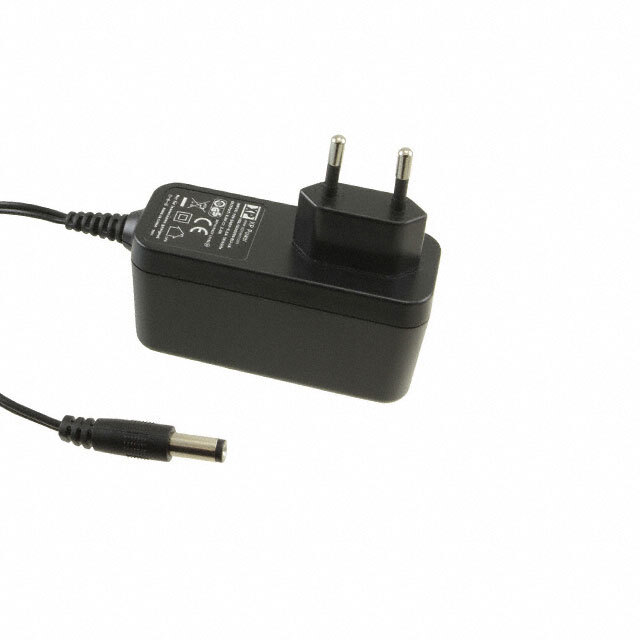

AC/DC WALL MOUNT ADAPTER 9V 18W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

VEL18US090-EU-JA

Active

XP Power

AC/DC WALL MOUNT ADAPTER 9V 18W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	3024	$ 11.70

Description

General part information

VEL18 Series

9V 18 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VEL18US090-EU-JA	VEL18 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	UL, TUV, CB	UL, TUV, CB
Cord Length	1.5 m	1.5 m
Cord Length	59 in	59 in
Current - Output (Max) [Max]	2 A	1.25 - 2 A
Efficiency	CoC Tier 2, Level VI	CoC Tier 2, Level VI
Form	Wall Mount (Class II)	Wall Mount (Class II)
Input Connector	CEE 7/16	NEMA 1-15P, BS 1363, CEE 7/16
Input Type	Fixed Blade	Fixed Blade
No Load Power Consumption	100 mW	100 mW
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	0 °C	0 °C
Output Connector	Barrel Plug	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm	2.1 - 5.5 mm
Output Connector [z]	12 mm	12 mm
Polarization	Positive Center	Positive Center
Power (Watts)	18 W	18 - 19 W
Region Utilized	Europe	North America, United Kingdom, Europe
Size / Dimension	-	47.5 mm
Size / Dimension	-	34 mm
Size / Dimension [x]	90 mm	90 mm
Size / Dimension [x]	3.54 in	3.54 in
Size / Dimension [y]	34 mm	34 - 49.5 mm
Size / Dimension [y]	1.34 in	1.34 - 1.95 in
Size / Dimension [z]	2.26 "	1.87 - 2.26 "
Size / Dimension [z]	57.6 mm	50 - 57.6 mm
Standard Number	62368-1	62368-1
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Output	9 V	9 - 15 V
Weight	0.188 lb	0.188 lb
Weight	85.28 g	85.28 g

VEL18 Series

AC/DC POWER SUPPLY, 1 OUTPUT, 18 W, 12 V, 1.5 A

Part	No Load Power Consumption	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Input Connector	Approval Agency	Cord Length	Cord Length	Efficiency	Output Connector	Output Connector [diameter]	Output Connector [z]	Operating Temperature [Max]	Current - Output (Max) [Max]	Standard Number	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output	Polarization	Form	Input Type	Region Utilized	Applications	Weight	Weight	Power (Watts)	Size / Dimension [y]	Size / Dimension [z]
XP Power VEL18US120-US-JA	100 mW	90 mm	1.87 "	47.5 mm	1.34 in	34 mm	3.54 in	NEMA 1-15P	CB, TUV, UL	1.5 m	59 in	CoC Tier 2, Level VI	Barrel Plug	2.1 mm, 5.5 mm	12 mm	60 °C	1.5 A	62368-1	90 VAC	264 VAC	12 V	Positive Center	Wall Mount (Class II)	Fixed Blade	North America	ITE (Commercial)	0.188 lb	85.28 g	18 W
XP Power VEL18US120-UK-JA	100 mW	90 mm	1.97 "		1.95 in		3.54 in	BS 1363	CB, TUV, UL	1.5 m	59 in	CoC Tier 2, Level VI	Barrel Plug	2.1 mm, 5.5 mm	12 mm	60 °C	1.5 A	62368-1	90 VAC	264 VAC	12 V	Positive Center	Wall Mount (Class II)	Fixed Blade	United Kingdom	ITE (Commercial)	0.188 lb	85.28 g	18 W	49.5 mm	50 mm
XP Power VEL18US090-EU-JA	100 mW	90 mm	2.26 "		1.34 in		3.54 in	CEE 7/16	CB, TUV, UL	1.5 m	59 in	CoC Tier 2, Level VI	Barrel Plug	2.1 mm, 5.5 mm	12 mm	60 °C	2 A	62368-1	90 VAC	264 VAC	9 V	Positive Center	Wall Mount (Class II)	Fixed Blade	Europe	ITE (Commercial)	0.188 lb	85.28 g	18 W	34 mm	57.6 mm
XP Power VEL18US150-UK-JA	100 mW	90 mm	1.97 "		1.95 in		3.54 in	BS 1363	CB, TUV, UL	1.5 m	59 in	CoC Tier 2, Level VI	Barrel Plug	2.1 mm, 5.5 mm	12 mm	60 °C	1.25 A	62368-1	90 VAC	264 VAC	15 VDC	Positive Center	Wall Mount (Class II)	Fixed Blade	United Kingdom	ITE (Commercial)	0.188 lb	85.28 g	19 W	49.5 mm	50 mm
