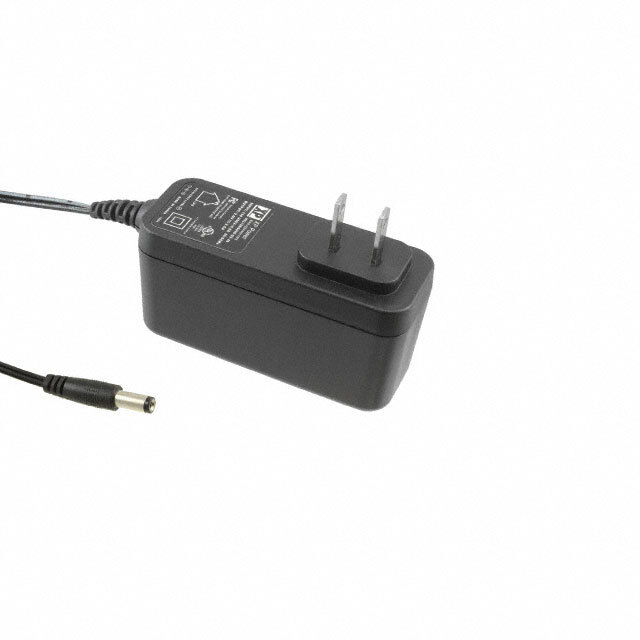

VEL18US120-US-JA

Active

XP Power

AC/DC POWER SUPPLY, 1 OUTPUT, 18 W, 12 V, 1.5 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Certificate of Conformity EN +1

VEL18US120-US-JA

Active

XP Power

AC/DC POWER SUPPLY, 1 OUTPUT, 18 W, 12 V, 1.5 A

Deep-Dive with AI

DocumentsDatasheet Certificate of Conformity EN +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 13.66
		5	$ 13.25
		10	$ 12.84
		25	$ 12.29
		100	$ 11.47

Description

General part information

VEL18 Series

The VEL18 series of wall plug adaptors comply with the very latest energy efficiency VI standards with high active mode efficiency and extremely low no load power consumption. Available with a standard jack plug connector these adaptors suit a wide variety of cost sensitive applications while maintaining industry leading performance.

Documents

Technical documentation and resources

Datasheet

Certificate of Conformity EN

Datasheet

Technical Data Sheet EN

Datasheet

Specification	VEL18US120-US-JA	VEL18 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	UL, TUV, CB	UL, TUV, CB
Cord Length	1.5 m	1.5 m
Cord Length	59 in	59 in
Current - Output (Max) [Max]	1.5 A	1.25 - 2 A
Efficiency	CoC Tier 2, Level VI	CoC Tier 2, Level VI
Form	Wall Mount (Class II)	Wall Mount (Class II)
Input Connector	NEMA 1-15P	NEMA 1-15P, BS 1363, CEE 7/16
Input Type	Fixed Blade	Fixed Blade
No Load Power Consumption	100 mW	100 mW
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	0 °C	0 °C
Output Connector	Barrel Plug	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm	2.1 - 5.5 mm
Output Connector [z]	12 mm	12 mm
Polarization	Positive Center	Positive Center
Power (Watts)	18 W	18 - 19 W
Region Utilized	North America	North America, United Kingdom, Europe
Size / Dimension	-	34 - 49.5 mm
Size / Dimension	-	50 - 57.6 mm
Size / Dimension [x]	90 mm	90 mm
Size / Dimension [x]	3.54 in	3.54 in
Size / Dimension [y]	1.34 in	1.34 - 1.95 in
Size / Dimension [y]	34 mm	34 mm
Size / Dimension [z]	1.87 "	1.87 - 2.26 "
Size / Dimension [z]	47.5 mm	47.5 mm
Standard Number	62368-1	62368-1
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Output	12 V	9 - 15 V
Weight	0.188 lb	0.188 lb
Weight	85.28 g	85.28 g

Part	No Load Power Consumption	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Input Connector	Approval Agency	Cord Length	Cord Length	Efficiency	Output Connector	Output Connector [diameter]	Output Connector [z]	Operating Temperature [Max]	Current - Output (Max) [Max]	Standard Number	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output	Polarization	Form	Input Type	Region Utilized	Applications	Weight	Weight	Power (Watts)	Size / Dimension [y]	Size / Dimension [z]
XP Power VEL18US120-US-JA	100 mW	90 mm	1.87 "	47.5 mm	1.34 in	34 mm	3.54 in	NEMA 1-15P	CB, TUV, UL	1.5 m	59 in	CoC Tier 2, Level VI	Barrel Plug	2.1 mm, 5.5 mm	12 mm	60 °C	1.5 A	62368-1	90 VAC	264 VAC	12 V	Positive Center	Wall Mount (Class II)	Fixed Blade	North America	ITE (Commercial)	0.188 lb	85.28 g	18 W
XP Power VEL18US120-UK-JA	100 mW	90 mm	1.97 "		1.95 in		3.54 in	BS 1363	CB, TUV, UL	1.5 m	59 in	CoC Tier 2, Level VI	Barrel Plug	2.1 mm, 5.5 mm	12 mm	60 °C	1.5 A	62368-1	90 VAC	264 VAC	12 V	Positive Center	Wall Mount (Class II)	Fixed Blade	United Kingdom	ITE (Commercial)	0.188 lb	85.28 g	18 W	49.5 mm	50 mm
XP Power VEL18US090-EU-JA	100 mW	90 mm	2.26 "		1.34 in		3.54 in	CEE 7/16	CB, TUV, UL	1.5 m	59 in	CoC Tier 2, Level VI	Barrel Plug	2.1 mm, 5.5 mm	12 mm	60 °C	2 A	62368-1	90 VAC	264 VAC	9 V	Positive Center	Wall Mount (Class II)	Fixed Blade	Europe	ITE (Commercial)	0.188 lb	85.28 g	18 W	34 mm	57.6 mm
XP Power VEL18US150-UK-JA	100 mW	90 mm	1.97 "		1.95 in		3.54 in	BS 1363	CB, TUV, UL	1.5 m	59 in	CoC Tier 2, Level VI	Barrel Plug	2.1 mm, 5.5 mm	12 mm	60 °C	1.25 A	62368-1	90 VAC	264 VAC	15 VDC	Positive Center	Wall Mount (Class II)	Fixed Blade	United Kingdom	ITE (Commercial)	0.188 lb	85.28 g	19 W	49.5 mm	50 mm
