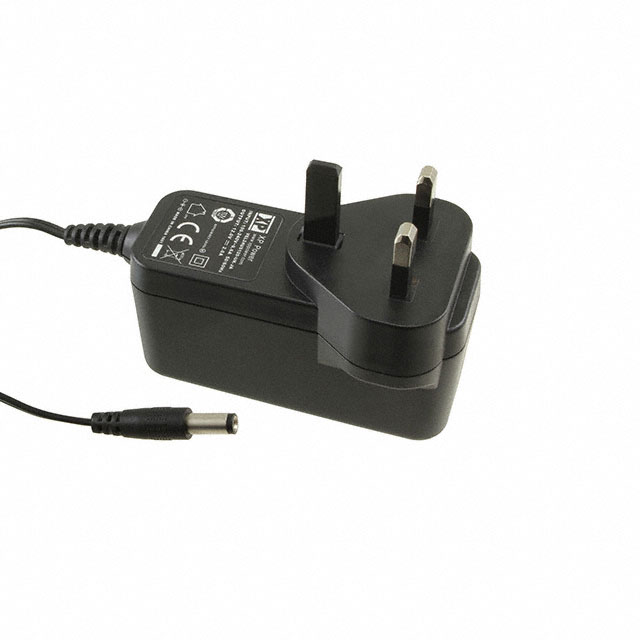

VEL18US120-UK-JA

Active

XP Power

AC/DC WALL MOUNT ADAPTER 12V 18W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

VEL18US120-UK-JA

Active

XP Power

AC/DC WALL MOUNT ADAPTER 12V 18W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VEL18US120-UK-JA	VEL18 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	UL, TUV, CB	UL, TUV, CB
Cord Length	1.5 m	1.5 m
Cord Length	59 in	59 in
Current - Output (Max) [Max]	1.5 A	1.25 - 2 A
Efficiency	CoC Tier 2, Level VI	CoC Tier 2, Level VI
Form	Wall Mount (Class II)	Wall Mount (Class II)
Input Connector	BS 1363	NEMA 1-15P, BS 1363, CEE 7/16
Input Type	Fixed Blade	Fixed Blade
No Load Power Consumption	100 mW	100 mW
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	0 °C	0 °C
Output Connector	Barrel Plug	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm	2.1 - 5.5 mm
Output Connector [z]	12 mm	12 mm
Polarization	Positive Center	Positive Center
Power (Watts)	18 W	18 - 19 W
Region Utilized	United Kingdom	North America, United Kingdom, Europe
Size / Dimension	-	47.5 mm
Size / Dimension	-	34 mm
Size / Dimension [x]	3.54 in	3.54 in
Size / Dimension [x]	90 mm	90 mm
Size / Dimension [y]	49.5 mm	34 - 49.5 mm
Size / Dimension [y]	1.95 in	1.34 - 1.95 in
Size / Dimension [z]	50 mm	50 - 57.6 mm
Size / Dimension [z]	1.97 "	1.87 - 2.26 "
Standard Number	62368-1	62368-1
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Output	12 V	9 - 15 V
Weight	0.188 lb	0.188 lb
Weight	85.28 g	85.28 g

VEL18 Series

AC/DC POWER SUPPLY, 1 OUTPUT, 18 W, 12 V, 1.5 A

Part	No Load Power Consumption	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Input Connector	Approval Agency	Cord Length	Cord Length	Efficiency	Output Connector	Output Connector [diameter]	Output Connector [z]	Operating Temperature [Max]	Current - Output (Max) [Max]	Standard Number	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output	Polarization	Form	Input Type	Region Utilized	Applications	Weight	Weight	Power (Watts)	Size / Dimension [y]	Size / Dimension [z]
XP Power VEL18US120-US-JA	100 mW	90 mm	1.87 "	47.5 mm	1.34 in	34 mm	3.54 in	NEMA 1-15P	CB, TUV, UL	1.5 m	59 in	CoC Tier 2, Level VI	Barrel Plug	2.1 mm, 5.5 mm	12 mm	60 °C	1.5 A	62368-1	90 VAC	264 VAC	12 V	Positive Center	Wall Mount (Class II)	Fixed Blade	North America	ITE (Commercial)	0.188 lb	85.28 g	18 W
XP Power VEL18US120-UK-JA	100 mW	90 mm	1.97 "		1.95 in		3.54 in	BS 1363	CB, TUV, UL	1.5 m	59 in	CoC Tier 2, Level VI	Barrel Plug	2.1 mm, 5.5 mm	12 mm	60 °C	1.5 A	62368-1	90 VAC	264 VAC	12 V	Positive Center	Wall Mount (Class II)	Fixed Blade	United Kingdom	ITE (Commercial)	0.188 lb	85.28 g	18 W	49.5 mm	50 mm
XP Power VEL18US090-EU-JA	100 mW	90 mm	2.26 "		1.34 in		3.54 in	CEE 7/16	CB, TUV, UL	1.5 m	59 in	CoC Tier 2, Level VI	Barrel Plug	2.1 mm, 5.5 mm	12 mm	60 °C	2 A	62368-1	90 VAC	264 VAC	9 V	Positive Center	Wall Mount (Class II)	Fixed Blade	Europe	ITE (Commercial)	0.188 lb	85.28 g	18 W	34 mm	57.6 mm
XP Power VEL18US150-UK-JA	100 mW	90 mm	1.97 "		1.95 in		3.54 in	BS 1363	CB, TUV, UL	1.5 m	59 in	CoC Tier 2, Level VI	Barrel Plug	2.1 mm, 5.5 mm	12 mm	60 °C	1.25 A	62368-1	90 VAC	264 VAC	15 VDC	Positive Center	Wall Mount (Class II)	Fixed Blade	United Kingdom	ITE (Commercial)	0.188 lb	85.28 g	19 W	49.5 mm	50 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 13.66

Description

General part information

VEL18 Series

12V 18 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
