M80-7046305
ActiveHarwin Inc.

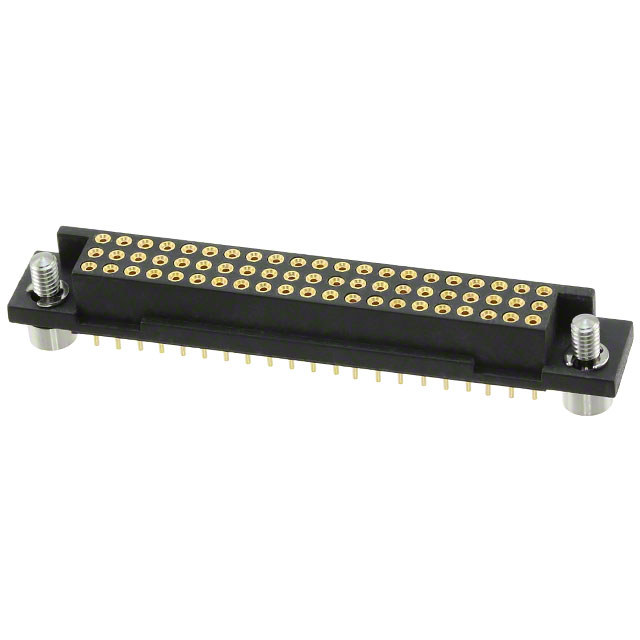

PCB RECEPTACLE, BOARD-TO-BOARD, WIRE-TO-BOARD, 2 MM, 3 ROWS, 63 CONTACTS, THROUGH HOLE MOUNT
M80-7046305
ActiveHarwin Inc.
PCB RECEPTACLE, BOARD-TO-BOARD, WIRE-TO-BOARD, 2 MM, 3 ROWS, 63 CONTACTS, THROUGH HOLE MOUNT
Description
General part information
M80-704 Series
63 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
Technical Specifications
Parameters and characteristics for this part
| Specification | M80-7046305 |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 12 µin |
| Contact Finish Thickness - Post | 12 µin |
| Contact Length - Post | 0.118 in |
| Contact Material | Beryllium Copper |
| Contact Shape | Circular |
| Contact Type | Female Socket |
| Fastening Type | Screw Lock |
| Features | Mounting Flange, Jackscrews, Mating Flange |
| Insulation Color | Black |
| Insulation Height | 0.247 in |
| Insulation Material | Glass Filled, Nylon 4/6, Polyamide (PA46) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 63 |
| Number of Positions Loaded | All |
| Number of Rows | 3 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch - Mating | 0.079 in |
| Row Spacing - Mating | 0.079 in |
| Style | Board, Board or Cable |
| Termination | Solder |
