M80-7043605
ActiveHarwin Inc.

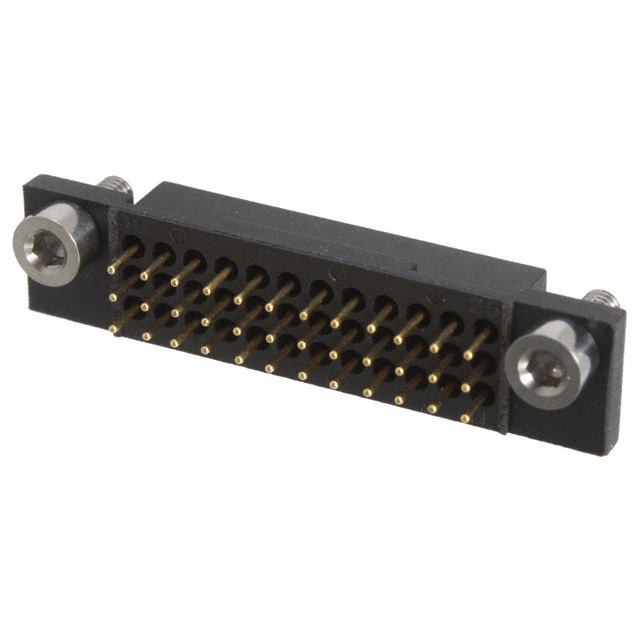

PCB RECEPTACLE, BOARD-TO-BOARD, WIRE-TO-BOARD, 2 MM, 3 ROWS, 36 CONTACTS, THROUGH HOLE MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
M80-7043605
ActiveHarwin Inc.
PCB RECEPTACLE, BOARD-TO-BOARD, WIRE-TO-BOARD, 2 MM, 3 ROWS, 36 CONTACTS, THROUGH HOLE MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M80-7043605 |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 12 µin |
| Contact Finish Thickness - Mating | 0.3 µm |
| Contact Finish Thickness - Post | 0.3 µm |
| Contact Finish Thickness - Post | 12 µin |
| Contact Length - Post | 0.118 in |
| Contact Length - Post | 3 mm |
| Contact Material | Beryllium Copper |
| Contact Shape | Circular |
| Contact Type | Female Socket |
| Features | Mating Flange, Mounting Flange, Jackscrews |
| Insulation Color | Black |
| Insulation Height | 6.28 mm |
| Insulation Height | 0.247 in |
| Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 36 |
| Number of Positions Loaded | All |
| Number of Rows | 3 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Row Spacing - Mating | 0.079 in |
| Row Spacing - Mating | 2 mm |
| Style | Board to Board, Cable |
| Termination | Solder |
M80-704 Series
| Part | Number of Rows | Pitch - Mating [x] | Pitch - Mating [x] | Style | Termination | Contact Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Height | Insulation Height | Contact Length - Post | Contact Length - Post | Number of Positions | Row Spacing - Mating | Row Spacing - Mating | Insulation Material | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Color | Contact Shape | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Material Flammability Rating | Number of Positions Loaded | Contact Finish - Post | Contact Finish - Mating | Contact Material | Connector Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | 3 | 0.079 in | 2 mm | Board to Board Cable | Solder | Female Socket | 157.5 Áin | 4 Ám | 6.28 mm | 0.247 in | 0.118 in | 3 mm | 51 | 0.079 in | 2 mm | Glass Filled Nylon 4/6 Polyamide (PA46) | -55 °C | 125 °C | Black | Circular | Through Hole | 12 µin | 0.3 µm | UL94 V-0 | All | Tin-Lead | Gold | Beryllium Copper | Receptacle | Jackscrews Mating Flange Mounting Flange |
Harwin Inc. | 3 | 0.079 in | 2 mm | Board to Board Cable | Solder | Female Socket | 12 µin | 0.3 µm | 6.28 mm | 0.247 in | 0.118 in | 3 mm | 45 | 0.079 in | 2 mm | Glass Filled Nylon 4/6 Polyamide (PA46) | -55 °C | 125 °C | Black | Circular | Through Hole | 12 µin | 0.3 µm | UL94 V-0 | All | Gold | Gold | Beryllium Copper | Receptacle | Jackscrews Mating Flange Mounting Flange |
Harwin Inc. | 3 | 0.079 in | 2 mm | Board to Board Cable | Solder | Female Socket | 157.5 Áin | 4 Ám | 6.28 mm | 0.247 in | 0.118 in | 3 mm | 63 | 0.079 in | 2 mm | Glass Filled Nylon 4/6 Polyamide (PA46) | -55 °C | 125 °C | Black | Circular | Through Hole | 12 µin | 0.3 µm | UL94 V-0 | All | Tin-Lead | Gold | Beryllium Copper | Receptacle | Jackscrews Mating Flange Mounting Flange |
Harwin Inc. | 3 | 0.079 in | 2 mm | Board to Board Cable | Solder | Female Socket | 12 µin | 0.3 µm | 6.28 mm | 0.247 in | 0.118 in | 3 mm | 63 | 0.079 in | 2 mm | Glass Filled Nylon 4/6 Polyamide (PA46) | -55 °C | 125 °C | Black | Circular | Through Hole | 12 µin | 0.3 µm | UL94 V-0 | All | Gold | Gold | Beryllium Copper | Receptacle | Jackscrews Mating Flange Mounting Flange |
Harwin Inc. | 3 | 0.079 in | 2 mm | Board to Board Cable | Solder | Female Socket | 12 µin | 0.3 µm | 6.28 mm | 0.247 in | 0.118 in | 3 mm | 36 | 0.079 in | 2 mm | Glass Filled Nylon 4/6 Polyamide (PA46) | -55 °C | 125 °C | Black | Circular | Through Hole | 12 µin | 0.3 µm | UL94 V-0 | All | Gold | Gold | Beryllium Copper | Receptacle | Jackscrews Mating Flange Mounting Flange |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M80-704 Series
36 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
