M80-7044505

Active

Harwin Inc.

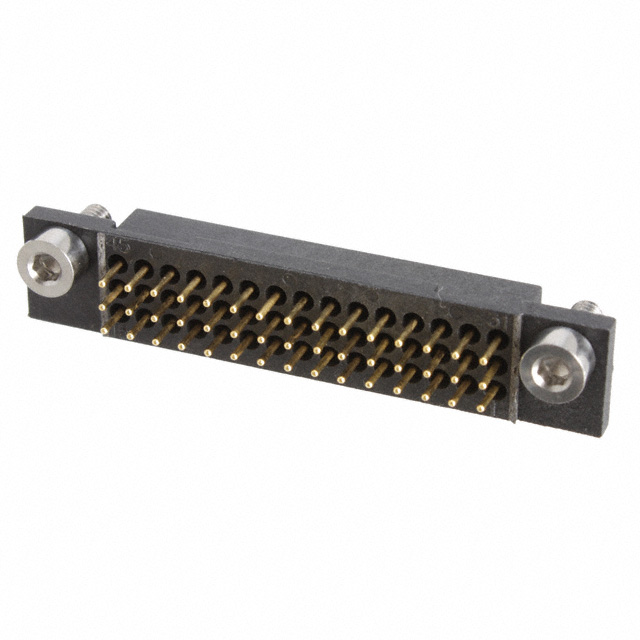

CONN RCPT 45POS 0.079 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet M80-001 +1

M80-7044505

Active

Harwin Inc.

CONN RCPT 45POS 0.079 GOLD PCB

Deep-Dive with AI

DocumentsDatasheet M80-001 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-7044505

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	12 µin
Contact Finish Thickness - Mating	0.3 µm
Contact Finish Thickness - Post	0.3 µm
Contact Finish Thickness - Post	12 µin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Features	Mating Flange, Mounting Flange, Jackscrews
Insulation Color	Black
Insulation Height	6.28 mm
Insulation Height	0.247 in
Insulation Material	Polyamide (PA46), Nylon 4/6, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	45
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Style	Board to Board, Cable
Termination	Solder

M80-704 Series

Part	Number of Rows	Pitch - Mating [x]	Pitch - Mating [x]	Style	Termination	Contact Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Contact Shape	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Number of Positions Loaded	Contact Finish - Post	Contact Finish - Mating	Contact Material	Connector Type	Features
Harwin Inc. M80-7045101	3	0.079 in	2 mm	Board to Board Cable	Solder	Female Socket	157.5 Áin	4 Ám	6.28 mm	0.247 in	0.118 in	3 mm	51	0.079 in	2 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	-55 °C	125 °C	Black	Circular	Through Hole	12 µin	0.3 µm	UL94 V-0	All	Tin-Lead	Gold	Beryllium Copper	Receptacle	Jackscrews Mating Flange Mounting Flange
Harwin Inc. M80-7044505	3	0.079 in	2 mm	Board to Board Cable	Solder	Female Socket	12 µin	0.3 µm	6.28 mm	0.247 in	0.118 in	3 mm	45	0.079 in	2 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	-55 °C	125 °C	Black	Circular	Through Hole	12 µin	0.3 µm	UL94 V-0	All	Gold	Gold	Beryllium Copper	Receptacle	Jackscrews Mating Flange Mounting Flange
Harwin Inc. M80-7046301	3	0.079 in	2 mm	Board to Board Cable	Solder	Female Socket	157.5 Áin	4 Ám	6.28 mm	0.247 in	0.118 in	3 mm	63	0.079 in	2 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	-55 °C	125 °C	Black	Circular	Through Hole	12 µin	0.3 µm	UL94 V-0	All	Tin-Lead	Gold	Beryllium Copper	Receptacle	Jackscrews Mating Flange Mounting Flange
Harwin Inc. M80-7046305	3	0.079 in	2 mm	Board to Board Cable	Solder	Female Socket	12 µin	0.3 µm	6.28 mm	0.247 in	0.118 in	3 mm	63	0.079 in	2 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	-55 °C	125 °C	Black	Circular	Through Hole	12 µin	0.3 µm	UL94 V-0	All	Gold	Gold	Beryllium Copper	Receptacle	Jackscrews Mating Flange Mounting Flange
Harwin Inc. M80-7043605	3	0.079 in	2 mm	Board to Board Cable	Solder	Female Socket	12 µin	0.3 µm	6.28 mm	0.247 in	0.118 in	3 mm	36	0.079 in	2 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	-55 °C	125 °C	Black	Circular	Through Hole	12 µin	0.3 µm	UL94 V-0	All	Gold	Gold	Beryllium Copper	Receptacle	Jackscrews Mating Flange Mounting Flange
