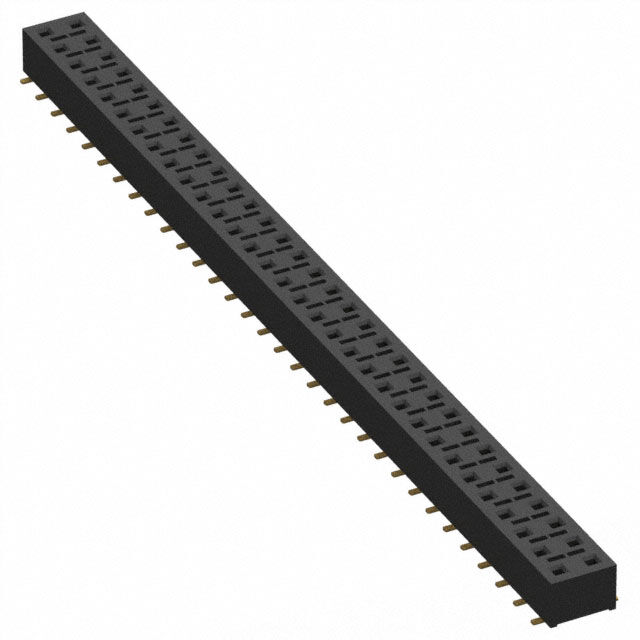

HLE-132-02-G-DV-P
ActiveSamtec Inc.
CONN RCPT 64POS 0.1 GOLD SMD
Deep-Dive with AI
Search across all available documentation for this part.
HLE-132-02-G-DV-P
ActiveSamtec Inc.
CONN RCPT 64POS 0.1 GOLD SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HLE-132-02-G-DV-P |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 0.51 µm |
| Contact Finish Thickness - Mating | 20 µin |
| Contact Finish Thickness - Post | 3 µin |
| Contact Finish Thickness - Post | 0.076 µm |
| Contact Material | Beryllium Copper |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Current Rating (Amps) | 4.1 A |
| Fastening Type | Push-Pull |
| Features | Pick and Place |
| Insulation Color | Black |
| Insulation Height | 3.66 mm |
| Insulation Height | 0.144 in |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Mounting Type | Surface Mount |
| Number of Positions | 64 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Termination | Solder |
| Voltage Rating | 400 VAC |
HLE-132 Series
| Part | Termination | Contact Type | Contact Finish - Post | Connector Type | Contact Finish - Mating | Number of Positions Loaded | Voltage Rating | Contact Shape | Number of Rows | Fastening Type | Pitch - Mating | Pitch - Mating | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Number of Positions | Current Rating (Amps) | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Height | Insulation Height | Contact Material | Insulation Material | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Color | Features | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | Solder | Female Socket | Tin | Receptacle | Gold | All | 400 VAC | Square | 2 | Push-Pull | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in | 64 | 4.1 A | 30 Áin | 0.76 Ám | 3.66 mm | 0.144 in | Beryllium Copper | Liquid Crystal Polymer (LCP) | Surface Mount | -55 °C | 125 °C | Black | |||||
Samtec Inc. | Solder | Female Socket | Gold | Receptacle | Gold | All | 400 VAC | Square | 2 | Push-Pull | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in | 64 | 4.1 A | 20 µin | 0.51 µm | 3.66 mm | 0.144 in | Beryllium Copper | Liquid Crystal Polymer (LCP) | Surface Mount | -55 °C | 125 °C | Black | Pick and Place | 3 µin | 0.076 µm | ||
Samtec Inc. | Solder | Female Socket | Gold | Receptacle Bottom Entry | Gold | All | 400 VAC | Square | 2 | Push-Pull | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in | 64 | 4.1 A | 20 µin | 0.51 µm | 3.66 mm | 0.144 in | Beryllium Copper | Liquid Crystal Polymer (LCP) | Surface Mount | -55 °C | 125 °C | Black | Board Guide | 3 µin | 0.076 µm | ||
Samtec Inc. | Solder | Female Socket | Gold | Pass Through Receptacle | Gold | All | 400 VAC | Square | 2 | Push-Pull | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in | 64 | 4.1 A | 10 çin | 0.25 çm | 3.5 mm | 0.138 in | Beryllium Copper | Liquid Crystal Polymer (LCP) | Through Hole | -55 °C | 125 °C | Black | 3 µin | 0.076 µm | 0.09 " | 2.29 mm | |
Samtec Inc. | Solder | Female Socket | Tin | Receptacle | Gold | All | 400 VAC | Square | 2 | Push-Pull | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in | 64 | 4.1 A | 3 µin | 0.076 µm | 3.66 mm | 0.144 in | Beryllium Copper | Liquid Crystal Polymer (LCP) | Surface Mount | -55 °C | 125 °C | Black | |||||
Samtec Inc. | Solder | Female Socket | Tin | Pass Through Receptacle | Gold | All | 400 VAC | Square | 2 | Push-Pull | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in | 64 | 4.1 A | 30 Áin | 0.76 Ám | 3.5 mm | 0.138 in | Beryllium Copper | Liquid Crystal Polymer (LCP) | Through Hole | -55 °C | 125 °C | Black | 0.09 " | 2.29 mm | |||
Samtec Inc. | Solder | Female Socket | Gold | Receptacle | Gold | All | 400 VAC | Square | 2 | Push-Pull | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in | 64 | 4.1 A | 20 µin | 0.51 µm | 3.66 mm | 0.144 in | Beryllium Copper | Liquid Crystal Polymer (LCP) | Surface Mount | -55 °C | 125 °C | Black | Pick and Place | 3 µin | 0.076 µm | ||
Samtec Inc. | Solder | Female Socket | Gold | Receptacle Bottom Entry | Gold | All | 400 VAC | Square | 2 | Push-Pull | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in | 64 | 4.1 A | 20 µin | 0.51 µm | 3.66 mm | 0.144 in | Beryllium Copper | Liquid Crystal Polymer (LCP) | Surface Mount | -55 °C | 125 °C | Black | 3 µin | 0.076 µm | |||
Samtec Inc. | Solder | Female Socket | Tin | Receptacle | Gold | All | 400 VAC | Square | 2 | Push-Pull | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in | 64 | 4.1 A | 10 çin | 0.25 çm | 3.66 mm | 0.144 in | Beryllium Copper | Liquid Crystal Polymer (LCP) | Surface Mount | -55 °C | 125 °C | Black | Pick and Place | ||||
Samtec Inc. | Solder | Female Socket | Tin | Receptacle | Gold | All | 400 VAC | Square | 2 | Push-Pull | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in | 64 | 4.1 A | 10 çin | 0.25 çm | 3.66 mm | 0.144 in | Beryllium Copper | Liquid Crystal Polymer (LCP) | Surface Mount | -55 °C | 125 °C | Black |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 7 | $ 10.43 | |
Description
General part information
HLE-132 Series
64 Position Receptacle Connector 0.100" (2.54mm) Surface Mount Gold
