Specification	HLE-132-02-G-DV-PE

Connector Type	Receptacle, Pass Through
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Length - Post	0.09 "
Contact Length - Post	2.29 mm
Contact Material	Beryllium Copper
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	4.1 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.5 mm
Insulation Height	0.138 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	64
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder
Voltage Rating	400 VAC

HLE-132 Series

Part	Termination	Contact Type	Contact Finish - Post	Connector Type	Contact Finish - Mating	Number of Positions Loaded	Voltage Rating	Contact Shape	Number of Rows	Fastening Type	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Contact Material	Insulation Material	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Features	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post
Samtec Inc. HLE-132-02-S-DV	Solder	Female Socket	Tin	Receptacle	Gold	All	400 VAC	Square	2	Push-Pull	0.1 in	2.54 mm	2.54 mm	0.1 in	64	4.1 A	30 Áin	0.76 Ám	3.66 mm	0.144 in	Beryllium Copper	Liquid Crystal Polymer (LCP)	Surface Mount	-55 °C	125 °C	Black
Samtec Inc. HLE-132-02-G-DV-K	Solder	Female Socket	Gold	Receptacle	Gold	All	400 VAC	Square	2	Push-Pull	0.1 in	2.54 mm	2.54 mm	0.1 in	64	4.1 A	20 µin	0.51 µm	3.66 mm	0.144 in	Beryllium Copper	Liquid Crystal Polymer (LCP)	Surface Mount	-55 °C	125 °C	Black	Pick and Place	3 µin	0.076 µm
Samtec Inc. HLE-132-02-G-DV-BE-A	Solder	Female Socket	Gold	Receptacle Bottom Entry	Gold	All	400 VAC	Square	2	Push-Pull	0.1 in	2.54 mm	2.54 mm	0.1 in	64	4.1 A	20 µin	0.51 µm	3.66 mm	0.144 in	Beryllium Copper	Liquid Crystal Polymer (LCP)	Surface Mount	-55 °C	125 °C	Black	Board Guide	3 µin	0.076 µm
Samtec Inc. HLE-132-02-G-DV-PE	Solder	Female Socket	Gold	Pass Through Receptacle	Gold	All	400 VAC	Square	2	Push-Pull	0.1 in	2.54 mm	2.54 mm	0.1 in	64	4.1 A	10 çin	0.25 çm	3.5 mm	0.138 in	Beryllium Copper	Liquid Crystal Polymer (LCP)	Through Hole	-55 °C	125 °C	Black		3 µin	0.076 µm	0.09 "	2.29 mm
Samtec Inc. HLE-132-02-F-DV	Solder	Female Socket	Tin	Receptacle	Gold	All	400 VAC	Square	2	Push-Pull	0.1 in	2.54 mm	2.54 mm	0.1 in	64	4.1 A	3 µin	0.076 µm	3.66 mm	0.144 in	Beryllium Copper	Liquid Crystal Polymer (LCP)	Surface Mount	-55 °C	125 °C	Black
Samtec Inc. HLE-132-02-S-DV-PE	Solder	Female Socket	Tin	Pass Through Receptacle	Gold	All	400 VAC	Square	2	Push-Pull	0.1 in	2.54 mm	2.54 mm	0.1 in	64	4.1 A	30 Áin	0.76 Ám	3.5 mm	0.138 in	Beryllium Copper	Liquid Crystal Polymer (LCP)	Through Hole	-55 °C	125 °C	Black				0.09 "	2.29 mm
Samtec Inc. HLE-132-02-G-DV-P	Solder	Female Socket	Gold	Receptacle	Gold	All	400 VAC	Square	2	Push-Pull	0.1 in	2.54 mm	2.54 mm	0.1 in	64	4.1 A	20 µin	0.51 µm	3.66 mm	0.144 in	Beryllium Copper	Liquid Crystal Polymer (LCP)	Surface Mount	-55 °C	125 °C	Black	Pick and Place	3 µin	0.076 µm
Samtec Inc. HLE-132-02-G-DV-BE	Solder	Female Socket	Gold	Receptacle Bottom Entry	Gold	All	400 VAC	Square	2	Push-Pull	0.1 in	2.54 mm	2.54 mm	0.1 in	64	4.1 A	20 µin	0.51 µm	3.66 mm	0.144 in	Beryllium Copper	Liquid Crystal Polymer (LCP)	Surface Mount	-55 °C	125 °C	Black		3 µin	0.076 µm
Samtec Inc. HLE-132-02-L-DV-K	Solder	Female Socket	Tin	Receptacle	Gold	All	400 VAC	Square	2	Push-Pull	0.1 in	2.54 mm	2.54 mm	0.1 in	64	4.1 A	10 çin	0.25 çm	3.66 mm	0.144 in	Beryllium Copper	Liquid Crystal Polymer (LCP)	Surface Mount	-55 °C	125 °C	Black	Pick and Place
Samtec Inc. HLE-132-02-L-DV	Solder	Female Socket	Tin	Receptacle	Gold	All	400 VAC	Square	2	Push-Pull	0.1 in	2.54 mm	2.54 mm	0.1 in	64	4.1 A	10 çin	0.25 çm	3.66 mm	0.144 in	Beryllium Copper	Liquid Crystal Polymer (LCP)	Surface Mount	-55 °C	125 °C	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	7	$ 9.24

Description

General part information

HLE-132 Series

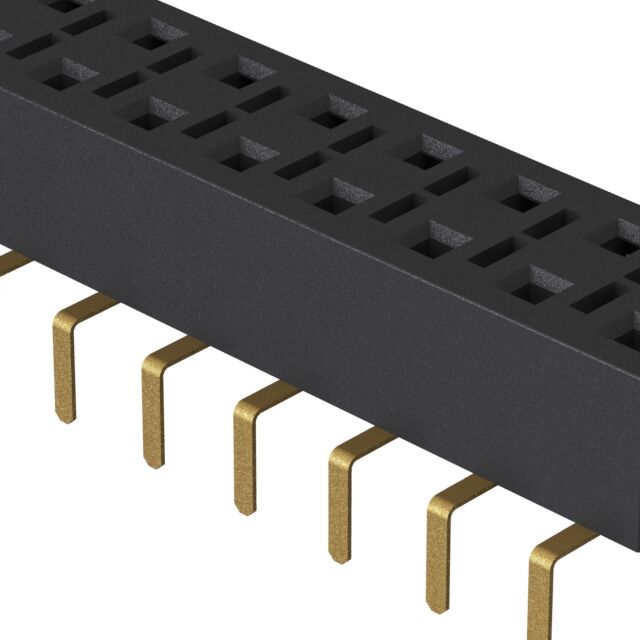

64 Position Receptacle, Pass Through Connector 0.100" (2.54mm) Through Hole Gold
