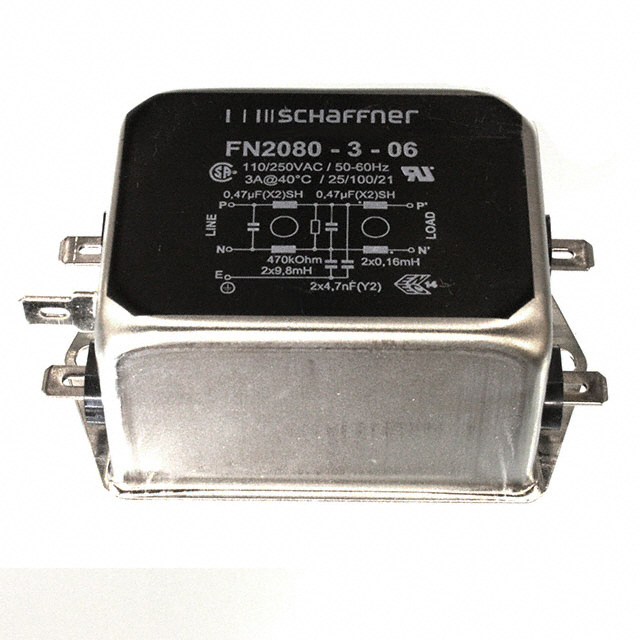

FN2080-3-06

Active

Schaffner EMC Inc.

LINE FILTER 110V/250VAC 3A CHAS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FN2080-3-06

Active

Schaffner EMC Inc.

LINE FILTER 110V/250VAC 3A CHAS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FN2080-3-06	FN2080 Series

Applications	General Purpose	General Purpose, Safety
Approval Agency	CSA, ENEC, UR	CSA, ENEC, UR
Configuration	Two Stage	Two Stage
Current	3 A	1 - 16 A
Filter Type	Single Phase	Single Phase
Frequency - Operating	400 Hz	400 Hz
Inductance	9.8 mH	2.8 - 22 mH
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C	-25 - 100 °C
Termination Style	Quick Connect	Quick Connect, Wire Leads
Voltage - Rated AC	250 V, 110 V	110 - 250 V

FN2080 Series

LINE FILTER 110V/250VAC 6A CHASS

Part	Approval Agency	Operating Temperature [custom]	Configuration	Termination Style	Mounting Type	Filter Type	Voltage - Rated AC	Inductance	Current	Applications	Frequency - Operating
Schaffner EMC Inc. FN2080-6-06	CSA, ENEC, UR	-25 °C, 100 °C	Two Stage	Quick Connect	Chassis Mount	Single Phase	110 V, 250 V	7.8 mH	6 A	General Purpose	400 Hz
Schaffner EMC Inc. FN2080-16-07	CSA, ENEC, UR	-25 °C, 100 °C	Two Stage	Wire Leads	Chassis Mount	Single Phase	110 V, 250 V	2.8 mH	16 A	General Purpose	400 Hz
Schaffner EMC Inc. FN2080-16-06	CSA, ENEC, UR	-25 °C, 100 °C	Two Stage	Quick Connect	Chassis Mount	Single Phase	110 V, 250 V	2.8 mH	16 A	General Purpose	400 Hz
Schaffner EMC Inc. FN2080A-10-06	CSA, ENEC, UR	-25 °C, 100 °C	Two Stage	Quick Connect	Chassis Mount	Single Phase	110 V, 250 V	4.5 mH	10 A	Safety	400 Hz
Schaffner EMC Inc. FN2080-12-06	CSA, ENEC, UR	-25 °C, 100 °C	Two Stage	Quick Connect	Chassis Mount	Single Phase	110 V, 250 V	3.25 mH	12 A	General Purpose	400 Hz
Schaffner EMC Inc. FN2080-6-07	CSA, ENEC, UR	-25 °C, 100 °C	Two Stage	Wire Leads	Chassis Mount	Single Phase	110 V, 250 V	7.8 mH	6 A	General Purpose	400 Hz
Schaffner EMC Inc. FN2080-3-06	CSA, ENEC, UR	-25 °C, 100 °C	Two Stage	Quick Connect	Chassis Mount	Single Phase	110 V, 250 V	9.8 mH	3 A	General Purpose	400 Hz
Schaffner EMC Inc. FN2080-12-07	CSA, ENEC, UR	-25 °C, 100 °C	Two Stage	Wire Leads	Chassis Mount	Single Phase	110 V, 250 V	3.25 mH	12 A	General Purpose	400 Hz
Schaffner EMC Inc. FN2080-10-07	CSA, ENEC, UR	-25 °C, 100 °C	Two Stage	Wire Leads	Chassis Mount	Single Phase	110 V, 250 V	4.5 mH	10 A	General Purpose	400 Hz
Schaffner EMC Inc. FN2080-1-06	CSA, ENEC, UR	-25 °C, 100 °C	Two Stage	Quick Connect	Chassis Mount	Single Phase	110 V, 250 V	22 mH	1 A	General Purpose	400 Hz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 39.53
		10	$ 32.24
		25	$ 29.72
		40	$ 28.51
		80	$ 27.43

Description

General part information

FN2080 Series

Single Phase EMC/EMI Line Filter 3 A 110V, 250V DC ~ 400Hz Two Stage Quick Connect
