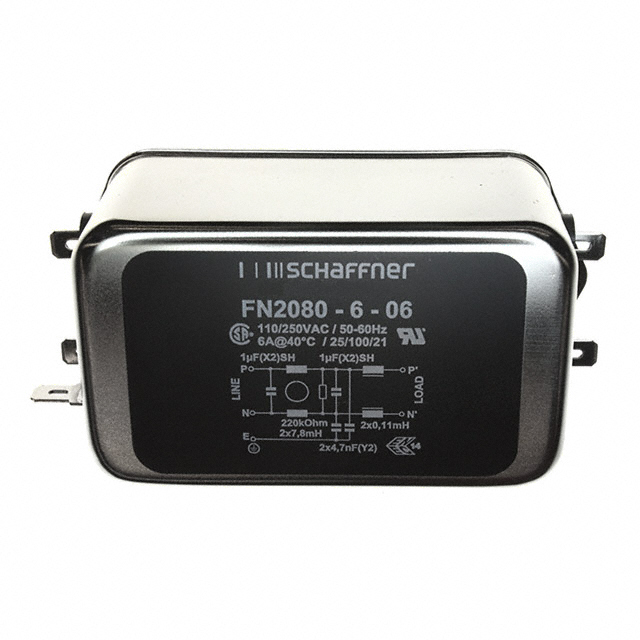

FN2080-6-06

Active

Schaffner EMC Inc.

LINE FILTER 110V/250VAC 6A CHASS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FN2080-6-06

Active

Schaffner EMC Inc.

LINE FILTER 110V/250VAC 6A CHASS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 51.66
		20	$ 39.66
		40	$ 37.30
		60	$ 35.99
		100	$ 35.36

Description

General part information

FN2080 Series

Single Phase EMC/EMI Line Filter 6 A 110V, 250V DC ~ 400Hz Two Stage Quick Connect

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FN2080-6-06	FN2080 Series

Applications	General Purpose	General Purpose, Safety
Approval Agency	CSA, ENEC, UR	CSA, ENEC, UR
Configuration	Two Stage	Two Stage
Current	6 A	1 - 16 A
Filter Type	Single Phase	Single Phase
Frequency - Operating	400 Hz	400 Hz
Inductance	7.8 mH	2.8 - 22 mH
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C	-25 - 100 °C
Termination Style	Quick Connect	Quick Connect, Wire Leads
Voltage - Rated AC	250 V, 110 V	110 - 250 V

FN2080 Series

LINE FILTER 110V/250VAC 6A CHASS

Part	Approval Agency	Operating Temperature [custom]	Configuration	Termination Style	Mounting Type	Filter Type	Voltage - Rated AC	Inductance	Current	Applications	Frequency - Operating
Schaffner EMC Inc. FN2080-6-06	CSA, ENEC, UR	-25 °C, 100 °C	Two Stage	Quick Connect	Chassis Mount	Single Phase	110 V, 250 V	7.8 mH	6 A	General Purpose	400 Hz
Schaffner EMC Inc. FN2080-16-07	CSA, ENEC, UR	-25 °C, 100 °C	Two Stage	Wire Leads	Chassis Mount	Single Phase	110 V, 250 V	2.8 mH	16 A	General Purpose	400 Hz
Schaffner EMC Inc. FN2080-16-06	CSA, ENEC, UR	-25 °C, 100 °C	Two Stage	Quick Connect	Chassis Mount	Single Phase	110 V, 250 V	2.8 mH	16 A	General Purpose	400 Hz
Schaffner EMC Inc. FN2080A-10-06	CSA, ENEC, UR	-25 °C, 100 °C	Two Stage	Quick Connect	Chassis Mount	Single Phase	110 V, 250 V	4.5 mH	10 A	Safety	400 Hz
Schaffner EMC Inc. FN2080-12-06	CSA, ENEC, UR	-25 °C, 100 °C	Two Stage	Quick Connect	Chassis Mount	Single Phase	110 V, 250 V	3.25 mH	12 A	General Purpose	400 Hz
Schaffner EMC Inc. FN2080-6-07	CSA, ENEC, UR	-25 °C, 100 °C	Two Stage	Wire Leads	Chassis Mount	Single Phase	110 V, 250 V	7.8 mH	6 A	General Purpose	400 Hz
Schaffner EMC Inc. FN2080-3-06	CSA, ENEC, UR	-25 °C, 100 °C	Two Stage	Quick Connect	Chassis Mount	Single Phase	110 V, 250 V	9.8 mH	3 A	General Purpose	400 Hz
Schaffner EMC Inc. FN2080-12-07	CSA, ENEC, UR	-25 °C, 100 °C	Two Stage	Wire Leads	Chassis Mount	Single Phase	110 V, 250 V	3.25 mH	12 A	General Purpose	400 Hz
Schaffner EMC Inc. FN2080-10-07	CSA, ENEC, UR	-25 °C, 100 °C	Two Stage	Wire Leads	Chassis Mount	Single Phase	110 V, 250 V	4.5 mH	10 A	General Purpose	400 Hz
Schaffner EMC Inc. FN2080-1-06	CSA, ENEC, UR	-25 °C, 100 °C	Two Stage	Quick Connect	Chassis Mount	Single Phase	110 V, 250 V	22 mH	1 A	General Purpose	400 Hz
