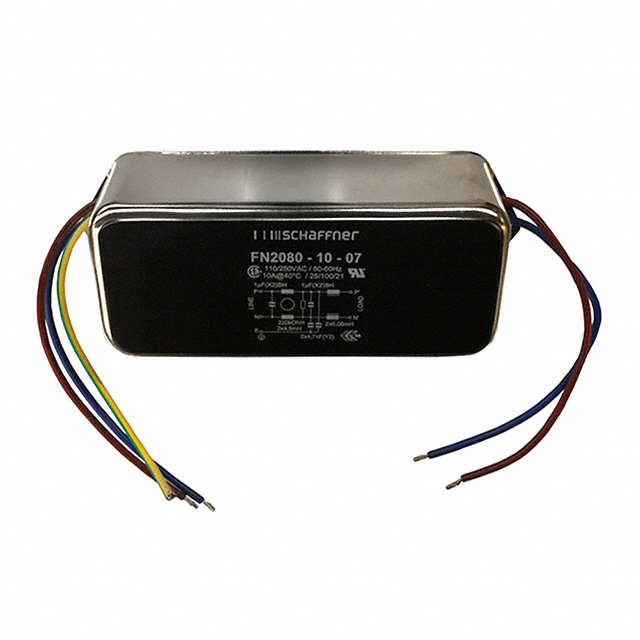

FN2080-10-07

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 110V/250VAC 10A CHAS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FN2080-10-07

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 110V/250VAC 10A CHAS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FN2080-10-07

Applications	General Purpose
Approval Agency	CSA, ENEC, UR
Configuration	Two Stage
Current	10 A
Filter Type	Single Phase
Frequency - Operating	400 Hz
Inductance	4.5 mH
Mounting Type	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C
Termination Style	Wire Leads
Voltage - Rated AC	250 V, 110 V

FN2080 Series

Part	Operating Temperature [custom]	Voltage - Rated AC	Frequency - Operating	Mounting Type	Current	Termination Style	Approval Agency	Configuration	Filter Type	Applications	Inductance
TE Connectivity Raychem Cable Protection FN2080-16-07	-25 °C 100 °C	110 V 250 V	400 Hz	Chassis Mount	16 A	Wire Leads	CSA ENEC UR	Two Stage	Single Phase	General Purpose	2.8 mH
TE Connectivity Raychem Cable Protection FN2080-12-07	-25 °C 100 °C	110 V 250 V	400 Hz	Chassis Mount	12 A	Wire Leads	CSA ENEC UR	Two Stage	Single Phase	General Purpose	3.25 mH
TE Connectivity Raychem Cable Protection FN2080-6-07	-25 °C 100 °C	110 V 250 V	400 Hz	Chassis Mount	6 A	Wire Leads	CSA ENEC UR	Two Stage	Single Phase	General Purpose	7.8 mH
TE Connectivity Raychem Cable Protection FN2080-10-07	-25 °C 100 °C	110 V 250 V	400 Hz	Chassis Mount	10 A	Wire Leads	CSA ENEC UR	Two Stage	Single Phase	General Purpose	4.5 mH
TE Connectivity Raychem Cable Protection FN2080-3-07	-25 °C 100 °C	110 V 250 V	400 Hz	Chassis Mount	3 A	Wire Leads	CSA ENEC UR	Two Stage	Single Phase	General Purpose	9.8 mH
TE Connectivity Raychem Cable Protection FN2080-3-06	-25 °C 100 °C	110 V 250 V	400 Hz	Chassis Mount	3 A	Quick Connect	CSA ENEC UR	Two Stage	Single Phase	General Purpose	9.8 mH
TE Connectivity Raychem Cable Protection FN2080-10-06	-25 °C 100 °C	110 V 250 V	400 Hz	Chassis Mount	10 A	Quick Connect	CSA ENEC UR	Two Stage	Single Phase	General Purpose	4.5 mH
TE Connectivity Raychem Cable Protection FN2080-1-06	-25 °C 100 °C	110 V 250 V	400 Hz	Chassis Mount	1 A	Quick Connect	CSA ENEC UR	Two Stage	Single Phase	General Purpose	22 mH
TE Connectivity Raychem Cable Protection FN2080-6-06	-25 °C 100 °C	110 V 250 V	400 Hz	Chassis Mount	6 A	Quick Connect	CSA ENEC UR	Two Stage	Single Phase	General Purpose	7.8 mH

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 59.59
		20	$ 57.60
		40	$ 53.63
		80	$ 51.73

Description

General part information

FN2080 Series

Single Phase EMC/EMI Line Filter 10 A 110V, 250V DC ~ 400Hz Two Stage Wire Leads
