Technical Specifications
Parameters and characteristics for this part
| Specification | Q20PLP |
|---|---|
| Cable Length | 78.74 in |
| Cable Length | 2 m |
| Connection Method | Cable |
| Ingress Protection | IP67, NEMA 6P, IEC IP67 |
| Light Source | Red |
| Light Source | 645 nm |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Output Configuration | PNP - Dark-ON/Light-ON |
| Response Time | 800 µs |
| Sensing Distance | 4 m |
| Sensing Distance | 13.12 ft |
| Sensing Method | Polarized, Retroreflective |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
Q20P Series
| Part | Connection Method | Response Time | Output Configuration | Sensing Method | Voltage - Supply [Max] | Voltage - Supply [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | Sensing Distance | Sensing Distance | Light Source | Cable Length | Cable Length | Light Source |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BANNER ENGINEERING | Connector | 800 µs | PNP - Dark-ON/Light-ON | Diffuse | 30 VDC | 10 VDC | -20 C | 60 °C | NEMA 6P IEC IP67 | 4.9 ft | 1.5 m | Infrared (850nm) | |||
BANNER ENGINEERING | Connector | 800 µs | PNP - Dark-ON/Light-ON - Selectable | Diffuse | 30 VDC | 10 VDC | -20 C | 60 °C | NEMA 6P IEC IP67 | 4.9 ft | 1.5 m | Infrared (850nm) | |||
BANNER ENGINEERING | Connector | 2.8 ms | PNP - Dark-ON/Light-ON | Background Suppression | 30 VDC | 10 VDC | -20 C | 60 °C | IP67 NEMA 6P | 7.874 " | 200 mm | Red LED | |||
BANNER ENGINEERING | Cable | 1 ms | PNP - Dark-ON/Light-ON | Through-Beam | 30 VDC | 10 VDC | -20 C | 60 °C | NEMA 6P IEC IP67 | 472.441 in | 12 m | Red (624nm) | 78.74 in | 2 m | |
BANNER ENGINEERING | Cable | 800 µs | PNP - Dark-ON/Light-ON | Polarized Retroreflective | 30 VDC | 10 VDC | -20 C | 60 °C | IP67 NEMA 6P IEC IP67 | 13.12 ft | 4 m | Red | 78.74 in | 2 m | 645 nm |
BANNER ENGINEERING | Cable | 800 µs | PNP - Dark-ON/Light-ON | Diffuse | 30 VDC | 10 VDC | -20 C | 60 °C | NEMA 6P IEC IP67 | 4.9 ft | 1.5 m | Infrared (850nm) | 78.74 in | 2 m | |
BANNER ENGINEERING | Connector | 1 ms | PNP - Dark-ON/Light-ON - Selectable | Through-Beam | 30 VDC | 10 VDC | -20 C | 60 °C | IP67 | 787.402 in | 20 m | Infrared (850nm) | |||
BANNER ENGINEERING | Cable | 800 µs | PNP - Dark-ON/Light-ON - Selectable | Background Suppression | 30 VDC | 10 VDC | -20 C | 60 °C | NEMA 6P IEC IP67 | 3.937 in | 100 mm | Red (655nm) | 78.74 in | 2 m | |
BANNER ENGINEERING | Connector | 800 µs | PNP - Dark-ON/Light-ON | Diffuse | 30 VDC | 10 VDC | -20 C | 60 °C | NEMA 6P IEC IP67 | 31.496 " | 800 mm | Red (624nm) | |||
BANNER ENGINEERING | Connector | 2.8 ms | PNP - Dark-ON/Light-ON | Background Suppression | 30 VDC | 10 VDC | -20 C | 60 °C | IP67 NEMA 6P | 7.874 " | 200 mm | Red LED |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
Q20P Series

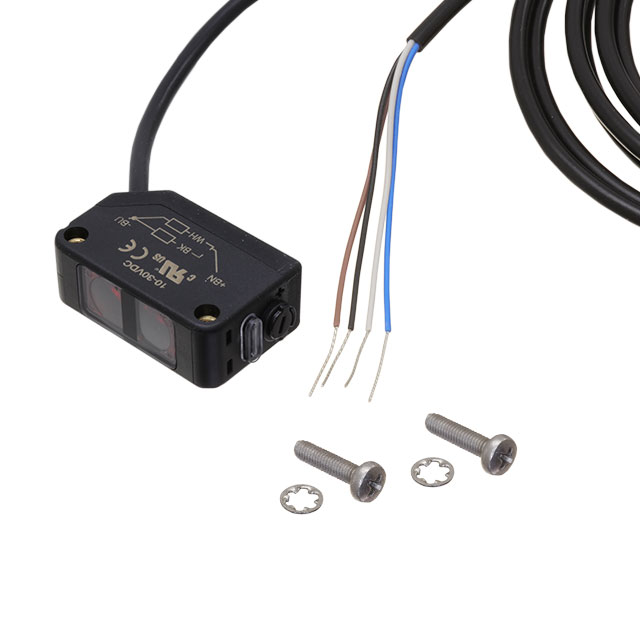

Retroreflective, Polarized Optical Sensor 13.12' (4m) PNP - Dark-ON/Light-ON
