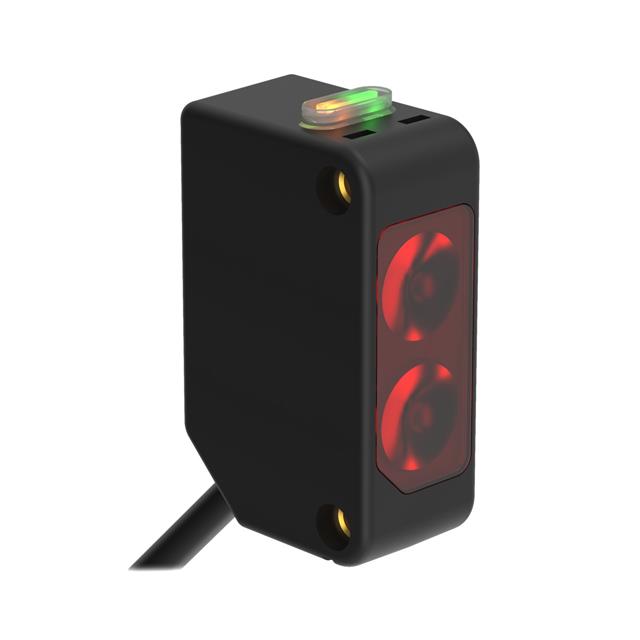

Q20PFF100

Active

BANNER ENGINEERING

WORLD-BEAM Q20 SERIES: FIXED-FIELD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

Q20PFF100

Active

BANNER ENGINEERING

WORLD-BEAM Q20 SERIES: FIXED-FIELD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q20PFF100

Cable Length	78.74 in
Cable Length	2 m
Connection Method	Cable
Ingress Protection	NEMA 6P, IEC IP67
Light Source	Red (655nm)
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Output Configuration	PNP - Dark-ON/Light-ON - Selectable
Response Time	800 µs
Sensing Distance	3.937 in
Sensing Distance	100 mm
Sensing Method	Background Suppression
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Q20P Series

Part	Connection Method	Response Time	Output Configuration	Sensing Method	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Sensing Distance	Sensing Distance	Light Source	Cable Length	Cable Length	Light Source
BANNER ENGINEERING Q20PDXLQ5	Connector	800 µs	PNP - Dark-ON/Light-ON	Diffuse	30 VDC	10 VDC	-20 C	60 °C	NEMA 6P IEC IP67	4.9 ft	1.5 m	Infrared (850nm)
BANNER ENGINEERING Q20PDXLQ7	Connector	800 µs	PNP - Dark-ON/Light-ON - Selectable	Diffuse	30 VDC	10 VDC	-20 C	60 °C	NEMA 6P IEC IP67	4.9 ft	1.5 m	Infrared (850nm)
BANNER ENGINEERING Q20PAF200Q	Connector	2.8 ms	PNP - Dark-ON/Light-ON	Background Suppression	30 VDC	10 VDC	-20 C	60 °C	IP67 NEMA 6P	7.874 "	200 mm	Red LED
BANNER ENGINEERING Q20PR	Cable	1 ms	PNP - Dark-ON/Light-ON	Through-Beam	30 VDC	10 VDC	-20 C	60 °C	NEMA 6P IEC IP67	472.441 in	12 m	Red (624nm)	78.74 in	2 m
BANNER ENGINEERING Q20PLP	Cable	800 µs	PNP - Dark-ON/Light-ON	Polarized Retroreflective	30 VDC	10 VDC	-20 C	60 °C	IP67 NEMA 6P IEC IP67	13.12 ft	4 m	Red	78.74 in	2 m	645 nm
BANNER ENGINEERING Q20PDXL	Cable	800 µs	PNP - Dark-ON/Light-ON	Diffuse	30 VDC	10 VDC	-20 C	60 °C	NEMA 6P IEC IP67	4.9 ft	1.5 m	Infrared (850nm)	78.74 in	2 m
BANNER ENGINEERING Q20PRLQ5	Connector	1 ms	PNP - Dark-ON/Light-ON - Selectable	Through-Beam	30 VDC	10 VDC	-20 C	60 °C	IP67	787.402 in	20 m	Infrared (850nm)
BANNER ENGINEERING Q20PFF100	Cable	800 µs	PNP - Dark-ON/Light-ON - Selectable	Background Suppression	30 VDC	10 VDC	-20 C	60 °C	NEMA 6P IEC IP67	3.937 in	100 mm	Red (655nm)	78.74 in	2 m
BANNER ENGINEERING Q20PDLQ5	Connector	800 µs	PNP - Dark-ON/Light-ON	Diffuse	30 VDC	10 VDC	-20 C	60 °C	NEMA 6P IEC IP67	31.496 "	800 mm	Red (624nm)
BANNER ENGINEERING Q20PAF200Q7	Connector	2.8 ms	PNP - Dark-ON/Light-ON	Background Suppression	30 VDC	10 VDC	-20 C	60 °C	IP67 NEMA 6P	7.874 "	200 mm	Red LED

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 100.00
Newark	Each	1	$ 102.00

Description

General part information

Q20P Series

Background Suppression Optical Sensor 3.937" (100mm) PNP - Dark-ON/Light-ON - Selectable
