Q20PDXLQ7

Active

BANNER ENGINEERING

WORLD-BEAM Q20 SERIES: LONG RANGE DIFFUSE (IR)

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

Q20PDXLQ7

Active

BANNER ENGINEERING

WORLD-BEAM Q20 SERIES: LONG RANGE DIFFUSE (IR)

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q20PDXLQ7

Connection Method	Connector
Ingress Protection	NEMA 6P, IEC IP67
Light Source	Infrared (850nm)
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Output Configuration	PNP - Dark-ON/Light-ON - Selectable
Response Time	800 µs
Sensing Distance	4.9 ft
Sensing Distance	1.5 m
Sensing Method	Diffuse
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Q20P Series

Part	Connection Method	Response Time	Output Configuration	Sensing Method	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Sensing Distance	Sensing Distance	Light Source	Cable Length	Cable Length	Light Source
BANNER ENGINEERING Q20PDXLQ5	Connector	800 µs	PNP - Dark-ON/Light-ON	Diffuse	30 VDC	10 VDC	-20 C	60 °C	NEMA 6P IEC IP67	4.9 ft	1.5 m	Infrared (850nm)
BANNER ENGINEERING Q20PDXLQ7	Connector	800 µs	PNP - Dark-ON/Light-ON - Selectable	Diffuse	30 VDC	10 VDC	-20 C	60 °C	NEMA 6P IEC IP67	4.9 ft	1.5 m	Infrared (850nm)
BANNER ENGINEERING Q20PAF200Q	Connector	2.8 ms	PNP - Dark-ON/Light-ON	Background Suppression	30 VDC	10 VDC	-20 C	60 °C	IP67 NEMA 6P	7.874 "	200 mm	Red LED
BANNER ENGINEERING Q20PR	Cable	1 ms	PNP - Dark-ON/Light-ON	Through-Beam	30 VDC	10 VDC	-20 C	60 °C	NEMA 6P IEC IP67	472.441 in	12 m	Red (624nm)	78.74 in	2 m
BANNER ENGINEERING Q20PLP	Cable	800 µs	PNP - Dark-ON/Light-ON	Polarized Retroreflective	30 VDC	10 VDC	-20 C	60 °C	IP67 NEMA 6P IEC IP67	13.12 ft	4 m	Red	78.74 in	2 m	645 nm
BANNER ENGINEERING Q20PDXL	Cable	800 µs	PNP - Dark-ON/Light-ON	Diffuse	30 VDC	10 VDC	-20 C	60 °C	NEMA 6P IEC IP67	4.9 ft	1.5 m	Infrared (850nm)	78.74 in	2 m
BANNER ENGINEERING Q20PRLQ5	Connector	1 ms	PNP - Dark-ON/Light-ON - Selectable	Through-Beam	30 VDC	10 VDC	-20 C	60 °C	IP67	787.402 in	20 m	Infrared (850nm)
BANNER ENGINEERING Q20PFF100	Cable	800 µs	PNP - Dark-ON/Light-ON - Selectable	Background Suppression	30 VDC	10 VDC	-20 C	60 °C	NEMA 6P IEC IP67	3.937 in	100 mm	Red (655nm)	78.74 in	2 m
BANNER ENGINEERING Q20PDLQ5	Connector	800 µs	PNP - Dark-ON/Light-ON	Diffuse	30 VDC	10 VDC	-20 C	60 °C	NEMA 6P IEC IP67	31.496 "	800 mm	Red (624nm)
BANNER ENGINEERING Q20PAF200Q7	Connector	2.8 ms	PNP - Dark-ON/Light-ON	Background Suppression	30 VDC	10 VDC	-20 C	60 °C	IP67 NEMA 6P	7.874 "	200 mm	Red LED

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 100.00
Newark	Each	1	$ 100.00

Description

General part information

Q20P Series

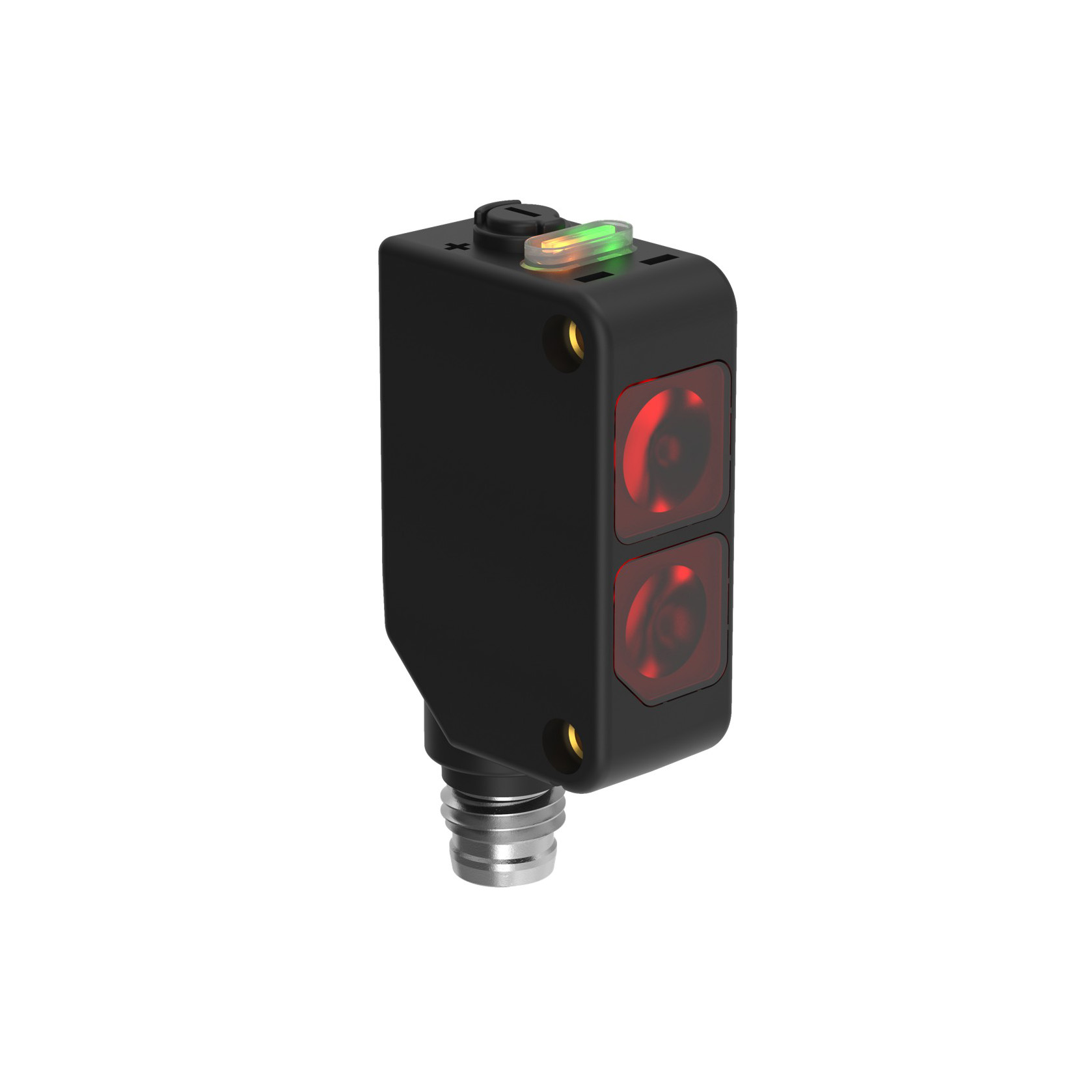

Diffuse Optical Sensor 4.9' (1.50m) PNP - Dark-ON/Light-ON - Selectable
