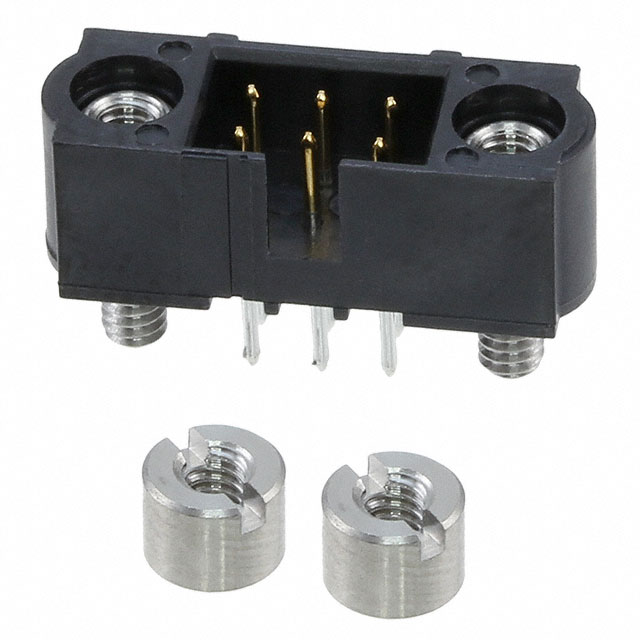

M80-5100622
ActiveHarwin Inc.
HEADER CONNECTOR,PCB MOUNT,RECEPT,6 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL,M2X0.4 ROHS COMPLIANT: NO
Deep-Dive with AI
Search across all available documentation for this part.
M80-5100622
ActiveHarwin Inc.
HEADER CONNECTOR,PCB MOUNT,RECEPT,6 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL,M2X0.4 ROHS COMPLIANT: NO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M80-5100622 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin-Lead |
| Contact Finish Thickness - Mating | 29.5 Áin |
| Contact Finish Thickness - Mating | 0.75 Ám |
| Contact Finish Thickness - Post | 3 µm |
| Contact Finish Thickness - Post | 118.1 µin |
| Contact Length - Post | 0.13 in |
| Contact Length - Post | 3.3 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 2.2 A |
| Features | Mounting Flange, Mating Flange, Mounting Hardware, Keying Slot |
| Insulation Color | Black |
| Insulation Height | 5.6 mm |
| Insulation Height | 0.22 in |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Mated Stacking Heights | 14.75 mm, 10.75 mm, 13.35 mm, 7.3 mm, 7.7 mm, 9.75 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Row Spacing - Mating | 0.079 in |
| Row Spacing - Mating | 2 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 800 V |
M80-510 Series
| Part | Current Rating (Amps) | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Material | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Length - Post | Contact Length - Post | Pitch - Mating [x] | Pitch - Mating [x] | Insulation Color | Mounting Type | Features | Insulation Height | Insulation Height | Connector Type | Termination | Number of Positions | Contact Finish - Mating | Number of Positions Loaded | Contact Shape | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Rows | Voltage Rating | Contact Type | Style | Row Spacing - Mating | Row Spacing - Mating | Shrouding | Insulation Material | Mated Stacking Heights | Contact Finish - Post | Contact Finish Thickness - Post | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | 2.2 A | 3 µm | 118.1 µin | Phosphor Bronze | UL94 V-0 | -55 °C | 125 °C | 0.13 in | 3.3 mm | 0.079 in | 2 mm | Black | Through Hole | Keying Slot Mating Flange Mounting Flange Mounting Hardware | 5.6 mm | 0.22 in | Header | Solder | 26 | Gold | All | Circular | 29.5 Áin | 0.75 Ám | 2 | 800 V | Male Pin | Board to Board Cable | 0.079 in | 2 mm | Shrouded - 4 Wall | Polyphenylene Sulfide (PPS) Glass Filled | 7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm | Tin | ||
Harwin Inc. | 2.2 A | 0.3 µm | 12 µin | Phosphor Bronze | UL94 V-0 | -55 °C | 125 °C | 0.13 in | 3.3 mm | 0.079 in | 2 mm | Black | Through Hole | Keying Slot Mating Flange Mounting Flange Mounting Hardware | 5.6 mm | 0.22 in | Header | Solder | 38 | Gold | All | Circular | 29.5 Áin | 0.75 Ám | 2 | 800 VAC | Male Pin | Board to Board Cable | 0.079 in | 2 mm | Shrouded - 4 Wall | Polyphenylene Sulfide (PPS) Glass Filled | 7.3 mm 7.8 mm | Tin-Lead | ||
Harwin Inc. | 2.2 A | 3 µm | 118.1 µin | Phosphor Bronze | UL94 V-0 | -55 °C | 125 °C | 0.13 in | 3.3 mm | 0.079 in | 2 mm | Black | Through Hole | Keying Slot Mating Flange Mounting Flange Mounting Hardware | 5.6 mm | 0.22 in | Header | Solder | 6 | Gold | All | Circular | 29.5 Áin | 0.75 Ám | 2 | 800 V | Male Pin | Board to Board Cable | 0.079 in | 2 mm | Shrouded - 4 Wall | Polyphenylene Sulfide (PPS) Glass Filled | 7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm | Tin | ||
Harwin Inc. | 2.2 A | 3 µm | 118.1 µin | Phosphor Bronze | UL94 V-0 | -55 °C | 125 °C | 0.13 in | 3.3 mm | 0.079 in | 2 mm | Black | Through Hole | Keying Slot Mating Flange Mounting Flange Mounting Hardware | 5.6 mm | 0.22 in | Header | Solder | 42 | Gold | All | Circular | 29.5 Áin | 0.75 Ám | 2 | 800 V | Male Pin | Board to Board Cable | 0.079 in | 2 mm | Shrouded - 4 Wall | Polyphenylene Sulfide (PPS) Glass Filled | 7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm | Tin-Lead | ||
Harwin Inc. | 2.2 A | 0.75 µm | Phosphor Bronze | UL94 V-0 | -55 °C | 125 °C | 0.13 in | 3.3 mm | 0.079 in | 2 mm | Black | Through Hole | Keying Slot Mating Flange Mounting Flange Mounting Hardware | 5.6 mm | 0.22 in | Header | Solder | 50 | Gold | All | Circular | 29.5 Áin | 0.75 Ám | 2 | 800 VAC | Male Pin | Board to Board Cable | 0.079 in | 2 mm | Shrouded - 4 Wall | Polyphenylene Sulfide (PPS) Glass Filled | 7.3 mm 7.8 mm | Gold | 29.5 µin | ||
Harwin Inc. | 2.2 A | 0.75 µm | Phosphor Bronze | UL94 V-0 | -55 °C | 125 °C | 0.13 in | 3.3 mm | 0.079 in | 2 mm | Black | Through Hole | Keying Slot Mating Flange Mounting Flange Mounting Hardware | 5.6 mm | 0.22 in | Header | Solder | Gold | All | Circular | 29.5 Áin | 0.75 Ám | 2 | 800 VAC | Male Pin | Board to Board Cable | 0.079 in | 2 mm | Shrouded - 4 Wall | Polyphenylene Sulfide (PPS) Glass Filled | 7.3 mm 7.8 mm | Gold | 29.5 µin | 16 | ||
Harwin Inc. | 2.2 A | 3 µm | 118.1 µin | Phosphor Bronze | UL94 V-0 | -55 °C | 125 °C | 0.13 in | 3.3 mm | 0.079 in | 2 mm | Black | Through Hole | Keying Slot Mating Flange Mounting Flange Mounting Hardware | 5.6 mm | 0.22 in | Header | Solder | 6 | Gold | All | Circular | 29.5 Áin | 0.75 Ám | 2 | 800 V | Male Pin | Board to Board Cable | 0.079 in | 2 mm | Shrouded - 4 Wall | Polyphenylene Sulfide (PPS) Glass Filled | 7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm | Tin-Lead | ||
Harwin Inc. | 2.2 A | 3 µm | 118.1 µin | Phosphor Bronze | UL94 V-0 | -55 °C | 125 °C | 0.13 in | 3.3 mm | 0.079 in | 2 mm | Black | Through Hole | Keying Slot Mating Flange Mounting Flange Mounting Hardware | 5.6 mm | 0.22 in | Header | Solder | 10 | Gold | All | Circular | 29.5 Áin | 0.75 Ám | 2 | 800 V | Male Pin | Board to Board Cable | 0.079 in | 2 mm | Shrouded - 4 Wall | Polyphenylene Sulfide (PPS) Glass Filled | 7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm | Tin-Lead | ||
Harwin Inc. | 2.2 A | 0.75 µm | Phosphor Bronze | UL94 V-0 | -55 °C | 125 °C | 0.13 in | 3.3 mm | 0.079 in | 2 mm | Black | Through Hole | Keying Slot Mating Flange Mounting Flange Mounting Hardware | 5.6 mm | 0.22 in | Header | Solder | 12 | Gold | All | Circular | 29.5 Áin | 0.75 Ám | 2 | 800 VAC | Male Pin | Board to Board Cable | 0.079 in | 2 mm | Shrouded - 4 Wall | Polyphenylene Sulfide (PPS) Glass Filled | 7.3 mm 7.8 mm | Gold | 29.5 µin | ||
Harwin Inc. | 2.2 A | 0.3 µm | 12 µin | Phosphor Bronze | UL94 V-0 | -55 °C | 125 °C | 0.13 in | 3.3 mm | 0.079 in | 2 mm | Black | Through Hole | Keying Slot Mating Flange Mounting Flange Mounting Hardware | 5.6 mm | 0.22 in | Header | Solder | 38 | Gold | All | Circular | 29.5 Áin | 0.75 Ám | 2 | 800 VAC | Male Pin | Board to Board Cable | 0.079 in | 2 mm | Shrouded - 4 Wall | Polyphenylene Sulfide (PPS) Glass Filled | 7.3 mm 7.8 mm | Tin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M80-510 Series
Connector Header Through Hole 6 position 0.079" (2.00mm)
