M80-5104222

Obsolete

Harwin Inc.

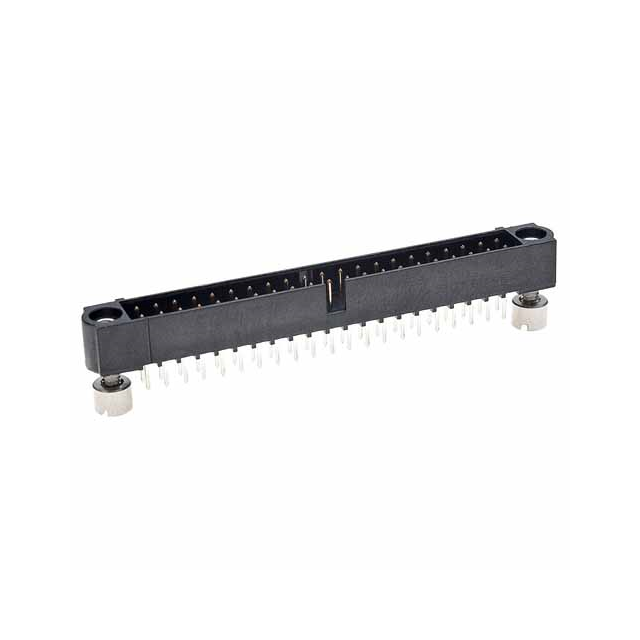

CONN HEADER VERT 42POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M80-5104222

Obsolete

Harwin Inc.

CONN HEADER VERT 42POS 2MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-5104222

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Finish Thickness - Post	3 µm
Contact Finish Thickness - Post	118.1 µin
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2.2 A
Features	Mounting Flange, Mating Flange, Mounting Hardware, Keying Slot
Insulation Color	Black
Insulation Height	5.6 mm
Insulation Height	0.22 in
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Mated Stacking Heights	14.75 mm, 10.75 mm, 13.35 mm, 7.3 mm, 7.7 mm, 9.75 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	42
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	800 V

M80-510 Series

Part	Current Rating (Amps)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Color	Mounting Type	Features	Insulation Height	Insulation Height	Connector Type	Termination	Number of Positions	Contact Finish - Mating	Number of Positions Loaded	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Voltage Rating	Contact Type	Style	Row Spacing - Mating	Row Spacing - Mating	Shrouding	Insulation Material	Mated Stacking Heights	Contact Finish - Post	Contact Finish Thickness - Post	Number of Positions
Harwin Inc. M80-5102642	2.2 A	3 µm	118.1 µin	Phosphor Bronze	UL94 V-0	-55 °C	125 °C	0.13 in	3.3 mm	0.079 in	2 mm	Black	Through Hole	Keying Slot Mating Flange Mounting Flange Mounting Hardware	5.6 mm	0.22 in	Header	Solder	26	Gold	All	Circular	29.5 Áin	0.75 Ám	2	800 V	Male Pin	Board to Board Cable	0.079 in	2 mm	Shrouded - 4 Wall	Polyphenylene Sulfide (PPS) Glass Filled	7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm	Tin
Harwin Inc. M80-5103822	2.2 A	0.3 µm	12 µin	Phosphor Bronze	UL94 V-0	-55 °C	125 °C	0.13 in	3.3 mm	0.079 in	2 mm	Black	Through Hole	Keying Slot Mating Flange Mounting Flange Mounting Hardware	5.6 mm	0.22 in	Header	Solder	38	Gold	All	Circular	29.5 Áin	0.75 Ám	2	800 VAC	Male Pin	Board to Board Cable	0.079 in	2 mm	Shrouded - 4 Wall	Polyphenylene Sulfide (PPS) Glass Filled	7.3 mm 7.8 mm	Tin-Lead
Harwin Inc. M80-5100642	2.2 A	3 µm	118.1 µin	Phosphor Bronze	UL94 V-0	-55 °C	125 °C	0.13 in	3.3 mm	0.079 in	2 mm	Black	Through Hole	Keying Slot Mating Flange Mounting Flange Mounting Hardware	5.6 mm	0.22 in	Header	Solder	6	Gold	All	Circular	29.5 Áin	0.75 Ám	2	800 V	Male Pin	Board to Board Cable	0.079 in	2 mm	Shrouded - 4 Wall	Polyphenylene Sulfide (PPS) Glass Filled	7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm	Tin
Harwin Inc. M80-5104222	2.2 A	3 µm	118.1 µin	Phosphor Bronze	UL94 V-0	-55 °C	125 °C	0.13 in	3.3 mm	0.079 in	2 mm	Black	Through Hole	Keying Slot Mating Flange Mounting Flange Mounting Hardware	5.6 mm	0.22 in	Header	Solder	42	Gold	All	Circular	29.5 Áin	0.75 Ám	2	800 V	Male Pin	Board to Board Cable	0.079 in	2 mm	Shrouded - 4 Wall	Polyphenylene Sulfide (PPS) Glass Filled	7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm	Tin-Lead
Harwin Inc. M80-5105005	2.2 A	0.75 µm		Phosphor Bronze	UL94 V-0	-55 °C	125 °C	0.13 in	3.3 mm	0.079 in	2 mm	Black	Through Hole	Keying Slot Mating Flange Mounting Flange Mounting Hardware	5.6 mm	0.22 in	Header	Solder	50	Gold	All	Circular	29.5 Áin	0.75 Ám	2	800 VAC	Male Pin	Board to Board Cable	0.079 in	2 mm	Shrouded - 4 Wall	Polyphenylene Sulfide (PPS) Glass Filled	7.3 mm 7.8 mm	Gold	29.5 µin
Harwin Inc. M80-5101605	2.2 A	0.75 µm		Phosphor Bronze	UL94 V-0	-55 °C	125 °C	0.13 in	3.3 mm	0.079 in	2 mm	Black	Through Hole	Keying Slot Mating Flange Mounting Flange Mounting Hardware	5.6 mm	0.22 in	Header	Solder		Gold	All	Circular	29.5 Áin	0.75 Ám	2	800 VAC	Male Pin	Board to Board Cable	0.079 in	2 mm	Shrouded - 4 Wall	Polyphenylene Sulfide (PPS) Glass Filled	7.3 mm 7.8 mm	Gold	29.5 µin	16
Harwin Inc. M80-5100622	2.2 A	3 µm	118.1 µin	Phosphor Bronze	UL94 V-0	-55 °C	125 °C	0.13 in	3.3 mm	0.079 in	2 mm	Black	Through Hole	Keying Slot Mating Flange Mounting Flange Mounting Hardware	5.6 mm	0.22 in	Header	Solder	6	Gold	All	Circular	29.5 Áin	0.75 Ám	2	800 V	Male Pin	Board to Board Cable	0.079 in	2 mm	Shrouded - 4 Wall	Polyphenylene Sulfide (PPS) Glass Filled	7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm	Tin-Lead
Harwin Inc. M80-5101022	2.2 A	3 µm	118.1 µin	Phosphor Bronze	UL94 V-0	-55 °C	125 °C	0.13 in	3.3 mm	0.079 in	2 mm	Black	Through Hole	Keying Slot Mating Flange Mounting Flange Mounting Hardware	5.6 mm	0.22 in	Header	Solder	10	Gold	All	Circular	29.5 Áin	0.75 Ám	2	800 V	Male Pin	Board to Board Cable	0.079 in	2 mm	Shrouded - 4 Wall	Polyphenylene Sulfide (PPS) Glass Filled	7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm	Tin-Lead
Harwin Inc. M80-5101205	2.2 A	0.75 µm		Phosphor Bronze	UL94 V-0	-55 °C	125 °C	0.13 in	3.3 mm	0.079 in	2 mm	Black	Through Hole	Keying Slot Mating Flange Mounting Flange Mounting Hardware	5.6 mm	0.22 in	Header	Solder	12	Gold	All	Circular	29.5 Áin	0.75 Ám	2	800 VAC	Male Pin	Board to Board Cable	0.079 in	2 mm	Shrouded - 4 Wall	Polyphenylene Sulfide (PPS) Glass Filled	7.3 mm 7.8 mm	Gold	29.5 µin
Harwin Inc. M80-5103842	2.2 A	0.3 µm	12 µin	Phosphor Bronze	UL94 V-0	-55 °C	125 °C	0.13 in	3.3 mm	0.079 in	2 mm	Black	Through Hole	Keying Slot Mating Flange Mounting Flange Mounting Hardware	5.6 mm	0.22 in	Header	Solder	38	Gold	All	Circular	29.5 Áin	0.75 Ám	2	800 VAC	Male Pin	Board to Board Cable	0.079 in	2 mm	Shrouded - 4 Wall	Polyphenylene Sulfide (PPS) Glass Filled	7.3 mm 7.8 mm	Tin
