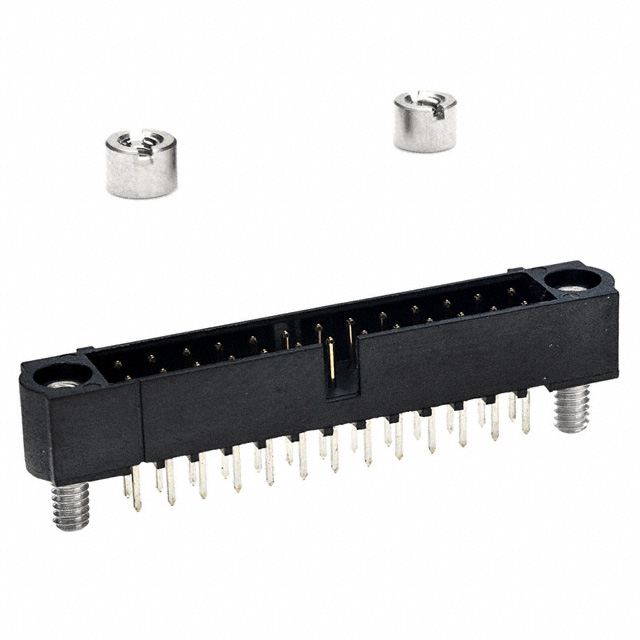

M80-5102642

Active

Harwin Inc.

CONN HEADER VERT 26POS 2MM

M80-5102642

Active

Harwin Inc.

CONN HEADER VERT 26POS 2MM

Description Specifications Series Pricing CAD Documents

Description

General part information

M80-510 Series

Connector Header Through Hole 26 position 0.079" (2.00mm)

Technical Specifications

Parameters and characteristics for this part

Specification	M80-5102642

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	29.5 Ąin
Contact Finish Thickness - Post	118.1 µin
Contact Length - Post	0.13 in
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating	2.2 A
Fastening Type	Threaded
Features	Mounting Flange, Mating Flange, Mounting Hardware, Keying Slot
Insulation Color	Black
Insulation Height	0.22 in
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Mated Stacking Height Options	14.75mm, 7.3mm, 10.75mm, 13.35mm, 9.75mm, 7.7mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.079 in
Row Spacing - Mating	0.079 in
Shrouding	Shrouded - 4 Wall
Style	Board, Board or Cable
Termination	Solder
Voltage Rating	800 V

M80-510 Series

Part	Contact Material	Contact Type	Row Spacing - Mating	Pitch - Mating	Insulation Color	Current Rating	Termination	Contact Finish Thickness - Mating	Number of Positions	Connector Type	Shrouding	Number of Rows	Operating Temperature (Max)	Operating Temperature (Min)	Contact Shape	Features	Material Flammability Rating	Insulation Height	Number of Positions Loaded	Fastening Type	Insulation Material	Mounting Type	Style	Contact Finish - Post	Contact Length - Post	Contact Finish - Mating	Voltage Rating	Contact Finish Thickness - Post	Mated Stacking Height Options	Current Rating (Per Contact)	Voltage Rating (Type)
Harwin Inc. M80-5102642	Phosphor Bronze	Male Pin	0.079 in	0.079 in	Black	2.2 A	Solder	29.5 Ąin	26	Header	Shrouded - 4 Wall	2	125 °C	-55 °C	Circular	Keying Slot Mating Flange Mounting Flange Mounting Hardware	UL94 V-0	0.22 in	All	Threaded	Glass Filled Polyphenylene Sulfide (PPS)	Through Hole	Board Board or Cable	Tin	0.13 in	Gold	800 V	118.1 µin	10.75mm 13.35mm 14.75mm 7.3mm 7.7mm 9.75mm
Harwin Inc. M80-5101805	Phosphor Bronze	Male Pin	0.079 in	0.079 in	Black		Solder	29.5 Ąin	18	Header	Shrouded - 4 Wall	2	125 °C	-55 °C	Circular	Keying Slot Mating Flange Mounting Flange Mounting Hardware	UL94 V-0	0.22 in	All	Threaded	Glass Filled Polyphenylene Sulfide (PPS)	Through Hole	Board Board or Cable	Gold	0.13 in	Gold	800 V	29.5 µin	10.75mm 13.35mm 14.75mm 7.3mm 7.7mm 9.75mm	2.2 A
Harwin Inc. M80-5101842	Phosphor Bronze	Male Pin	0.079 in	0.079 in	Black	2.2 A	Solder	29.5 Ąin	18	Header	Shrouded - 4 Wall	2	125 °C	-55 °C	Circular	Keying Slot Mating Flange Mounting Flange Mounting Hardware	UL94 V-0	0.22 in	All	Threaded	Glass Filled Polyphenylene Sulfide (PPS)	Through Hole	Board Board or Cable	Tin	0.13 in	Gold	800 V	118.1 µin	10.75mm 13.35mm 14.75mm 7.3mm 7.7mm 9.75mm
Harwin Inc. M80-5104222	Phosphor Bronze	Male Pin	0.079 in	0.079 in	Black	2.2 A	Solder	29.5 Ąin	42	Header	Shrouded - 4 Wall	2	125 °C	-55 °C	Circular	Keying Slot Mating Flange Mounting Flange Mounting Hardware	UL94 V-0	0.22 in	All	Threaded	Glass Filled Polyphenylene Sulfide (PPS)	Through Hole	Board Board or Cable	Tin-Lead	0.13 in	Gold	800 V	118.1 µin	10.75mm 13.35mm 14.75mm 7.3mm 7.7mm 9.75mm
Harwin Inc. M80-5105005	Phosphor Bronze	Male Pin	0.079 in	0.079 in	Black	2.2 A	Solder	29.5 Ąin	50	Header	Shrouded - 4 Wall	2	125 °C	-55 °C	Circular	Keying Slot Mating Flange Mounting Flange Mounting Hardware	UL94 V-0	0.22 in	All	Threaded	Glass Filled Polyphenylene Sulfide (PPS)	Through Hole	Board Board or Cable	Gold	0.13 in	Gold	800 V	29.5 µin	7.3mm 7.8mm		DC
Harwin Inc. M80-5101605	Phosphor Bronze	Male Pin	0.079 in	0.079 in	Black	2.2 A	Solder	29.5 Ąin	16	Header	Shrouded - 4 Wall	2	125 °C	-55 °C	Circular	Keying Slot Mating Flange Mounting Flange Mounting Hardware	UL94 V-0	0.22 in	All	Threaded	Glass Filled Polyphenylene Sulfide (PPS)	Through Hole	Board Board or Cable	Gold	0.13 in	Gold	800 V	29.5 µin	7.3mm 7.8mm		DC
Harwin Inc. M80-5100622	Phosphor Bronze	Male Pin	0.079 in	0.079 in	Black	2.2 A	Solder	29.5 Ąin	6	Header	Shrouded - 4 Wall	2	125 °C	-55 °C	Circular	Keying Slot Mating Flange Mounting Flange Mounting Hardware	UL94 V-0	0.22 in	All	Threaded	Glass Filled Polyphenylene Sulfide (PPS)	Through Hole	Board Board or Cable	Tin-Lead	0.13 in	Gold	800 V	118.1 µin	10.75mm 13.35mm 14.75mm 7.3mm 7.7mm 9.75mm
Harwin Inc. M80-5101242	Phosphor Bronze	Male Pin	0.079 in	0.079 in	Black	2.2 A	Solder	29.5 Ąin	12	Header	Shrouded - 4 Wall	2	125 °C	-55 °C	Circular	Keying Slot Mating Flange Mounting Flange Mounting Hardware	UL94 V-0	0.22 in	All	Threaded	Glass Filled Polyphenylene Sulfide (PPS)	Through Hole	Board Board or Cable	Tin	0.13 in	Gold	800 V	118.1 µin	10.75mm 13.35mm 14.75mm 7.3mm 7.7mm 9.75mm
Harwin Inc. M80-5101022	Phosphor Bronze	Male Pin	0.079 in	0.079 in	Black	2.2 A	Solder	29.5 Ąin	10	Header	Shrouded - 4 Wall	2	125 °C	-55 °C	Circular	Keying Slot Mating Flange Mounting Flange Mounting Hardware	UL94 V-0	0.22 in	All	Threaded	Glass Filled Polyphenylene Sulfide (PPS)	Through Hole	Board Board or Cable	Tin-Lead	0.13 in	Gold	800 V	118.1 µin	10.75mm 13.35mm 14.75mm 7.3mm 7.7mm 9.75mm
Harwin Inc. M80-5101205	Phosphor Bronze	Male Pin	0.079 in	0.079 in	Black	2.2 A	Solder	29.5 Ąin	12	Header	Shrouded - 4 Wall	2	125 °C	-55 °C	Circular	Keying Slot Mating Flange Mounting Flange Mounting Hardware	UL94 V-0	0.22 in	All	Threaded	Glass Filled Polyphenylene Sulfide (PPS)	Through Hole	Board Board or Cable	Gold	0.13 in	Gold	800 V	29.5 µin	7.3mm 7.8mm		DC
