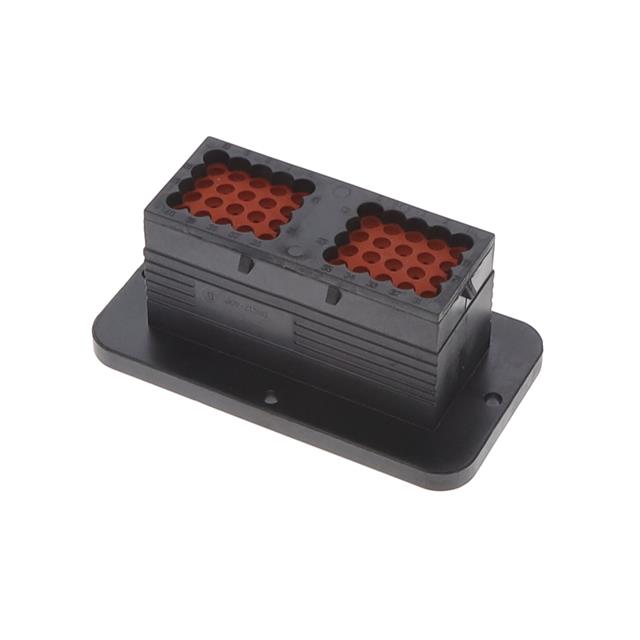

DRC12-40PB
ActiveTE Connectivity Raychem Cable Protection
40P RECP ASM
Deep-Dive with AI
Search across all available documentation for this part.
DRC12-40PB
ActiveTE Connectivity Raychem Cable Protection
40P RECP ASM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DRC12-40PB |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Features | IP68, Cap (Cover), Dust |
| Insulation Material | Plastic |
| Number of Positions | 40 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 5.5 mm |
| Pitch [x] | 0.217 in |
| Row Spacing | 5.49 mm |
| Row Spacing | 0.216 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 22.77 | |
| 10 | $ 19.94 | |||
| 25 | $ 19.08 | |||
| 60 | $ 18.47 | |||
| 120 | $ 17.85 | |||
| 300 | $ 16.87 | |||
| 540 | $ 16.37 | |||
Description
General part information
DRC12 Series
40 Rectangular Connectors - Housings Receptacle Black 0.217" (5.50mm)
Documents
Technical documentation and resources
No documents available
