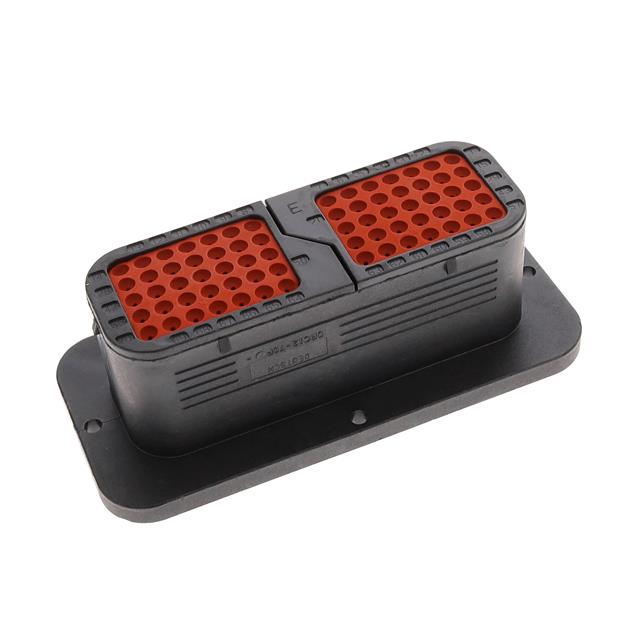

DRC12-70PAE
ActiveTE Connectivity Raychem Cable Protection
70P RECP ASM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DRC12-70PAE |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Features | IP68, Cap (Cover), Dust |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Number of Positions | 70 |
| Number of Rows | 5 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 5.5 mm |
| Pitch [x] | 0.217 in |
| Row Spacing | 5.49 mm |
| Row Spacing | 0.216 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 36.86 | |
| 10 | $ 32.28 | |||
| 40 | $ 29.89 | |||
| 80 | $ 28.89 | |||
| 280 | $ 27.30 | |||
Description
General part information
DRC12 Series
70 Rectangular Connectors - Housings Receptacle Black 0.217" (5.50mm)
