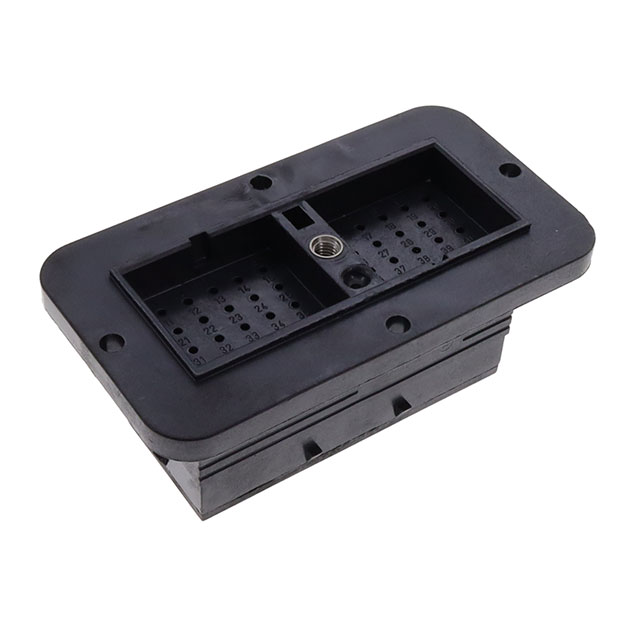

DRC12-40PAE

Active

TE Connectivity Raychem Cable Protection

40P RECP ASM

Deep-Dive with AI

Search across all available documentation for this part.

DRC12-40PAE

Active

TE Connectivity Raychem Cable Protection

40P RECP ASM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DRC12-40PAE

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Features	IP68, Cap (Cover), Dust
Insulation Material	Plastic
Number of Positions	40
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	5.5 mm
Pitch [x]	0.217 in
Row Spacing	5.49 mm
Row Spacing	0.216 in

DRC12 Series

Part	Features	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Color	Number of Positions	Insulation Material	Connector Type	Row Spacing	Row Spacing	Pitch [x]	Pitch [x]	Number of Rows	Mounting Type	Note
TE Connectivity Raychem Cable Protection DRC12-24PAE	IP68	Crimp	-55 °C	125 °C	Male Pin	Black	24	Polyamide (PA66) Nylon 6/6 Glass Filled	Receptacle	5.49 mm	0.216 in
TE Connectivity Raychem Cable Protection DRC12-24PC	IP68	Crimp	-55 °C	125 °C	Male Pin	Black	24	Polyphenylene Sulfide (PPS) Glass Filled	Receptacle	5.49 mm	0.216 in
TE Connectivity Raychem Cable Protection DRC12-24PCE	IP68	Crimp	-55 °C	125 °C	Male Pin	Black	24	Polyphenylene Sulfide (PPS) Glass Filled	Receptacle	5.49 mm	0.216 in
TE Connectivity Raychem Cable Protection DRC12-40PB	Cap (Cover) Dust IP68	Crimp	-55 °C	125 °C	Female Socket	Black	40	Plastic	Receptacle	5.49 mm	0.216 in	5.5 mm	0.217 in
TE Connectivity Raychem Cable Protection DRC12-70PBE	IP68	Crimp	-55 °C	125 °C	Male Pin	Black	70	Polyphenylene Sulfide (PPS) Glass Filled	Receptacle	5.49 mm	0.216 in			5
TE Connectivity Raychem Cable Protection DRC12-40PA	Cap (Cover) Dust IP68	Crimp	-55 °C	125 °C	Male Pin	Black	40	Polyphenylene Sulfide (PPS) Glass Filled	Receptacle						Free Hanging (In-Line)	Contacts Not Included
TE Connectivity Raychem Cable Protection DRC12-24PBE	IP68	Crimp	-55 °C	125 °C	Male Pin	Black	24	Polyphenylene Sulfide (PPS) Glass Filled	Receptacle	5.49 mm	0.216 in
TE Connectivity Raychem Cable Protection DRC12-40PAE	Cap (Cover) Dust IP68	Crimp	-55 °C	125 °C	Female Socket	Black	40	Plastic	Receptacle	5.49 mm	0.216 in	5.5 mm	0.217 in
TE Connectivity Raychem Cable Protection DRC12-70PAE	Cap (Cover) Dust IP68	Crimp	-55 °C	125 °C	Female Socket	Black	70	Polyphenylene Sulfide (PPS) Glass Filled	Receptacle	5.49 mm	0.216 in	5.5 mm	0.217 in	5
TE Connectivity Raychem Cable Protection DRC12-40PC	IP68	Crimp	-55 °C	125 °C	Male Pin	Black	40	Plastic	Receptacle	5.49 mm	0.216 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 25.79
		10	$ 22.58
		25	$ 21.61
		60	$ 20.91
		120	$ 20.21
		300	$ 19.10

Description

General part information

DRC12 Series

40 Rectangular Connectors - Housings Receptacle Black 0.217" (5.50mm)

Documents

Technical documentation and resources

No documents available
