Description

General part information

516-090 Series

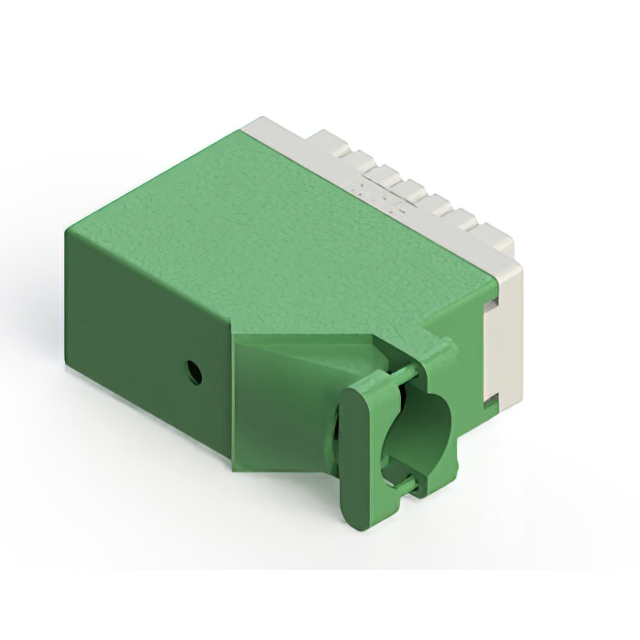

90 Position Housing for Non-Gendered Contacts Connector Gray Free Hanging (In-Line) Rack and Panel

Technical Specifications

Parameters and characteristics for this part

Specification	516-090-542-420

Color	Gray
Connector Style	Rack and Panel
Connector Type	Housing for Non-Gendered Contacts
Connector Usage	Receptacle
Features	Backshell
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	90
Number of Rows	13
Pitch	0.15 in

516-090 Series

...

Part	Note	Connector Usage	Number of Rows	Number of Positions	Features	Mounting Type	Connector Type	Pitch	Connector Style	Color
EDAC Inc. 516-090-520-562	Contacts Not Included	Plug	13	90	Backshell Guide Pin Jackscrew Socket	Free Hanging (In-Line)	Housing for Non-Gendered Contacts	0.15 in	Rack and Panel	Green
EDAC Inc. 516-090-520-206	Contacts Not Included	Receptacle	13	90	Jackscrew Socket		Housing for Non-Gendered Contacts	0.15 in	Rack and Panel	Green
EDAC Inc. 516-090-541-322	Contacts Not Included	Plug	13	90	Backshell Guide Pin Jackscrew Socket	Free Hanging (In-Line)	Housing for Non-Gendered Contacts	0.15 in	Rack and Panel	Gray
EDAC Inc. 516-090-500-560	Contacts Not Included	Plug	13	90	Backshell	Free Hanging (In-Line)	Housing for Non-Gendered Contacts	0.15 in	Rack and Panel	Green
EDAC Inc. 516-090-541-360	Contacts Not Included	Plug	13	90	Backshell	Free Hanging (In-Line)	Housing for Non-Gendered Contacts	0.15 in	Rack and Panel	Gray
EDAC Inc. 516-090-541-465	Contacts Not Included	Receptacle	13	90	Backshell Jackscrew	Free Hanging (In-Line)	Housing for Non-Gendered Contacts	0.15 in	Rack and Panel	Gray
EDAC Inc. 516-090-520-306	Contacts Not Included	Plug	13	90	Jackscrew Socket		Housing for Non-Gendered Contacts	0.15 in	Rack and Panel	Gray
EDAC Inc. 516-090-542-420	Contacts Not Included	Receptacle	13	90	Backshell	Free Hanging (In-Line)	Housing for Non-Gendered Contacts	0.15 in	Rack and Panel	Gray
EDAC Inc. 516-090-542-326	Contacts Not Included	Plug	13	90	Backshell Jackscrew Socket	Free Hanging (In-Line)	Housing for Non-Gendered Contacts	0.15 in	Rack and Panel	Gray
EDAC Inc. 516-090-542-355	Contacts Not Included	Plug	13	90	Backshell Jackscrew	Free Hanging (In-Line)	Housing for Non-Gendered Contacts	0.15 in	Rack and Panel	Gray
