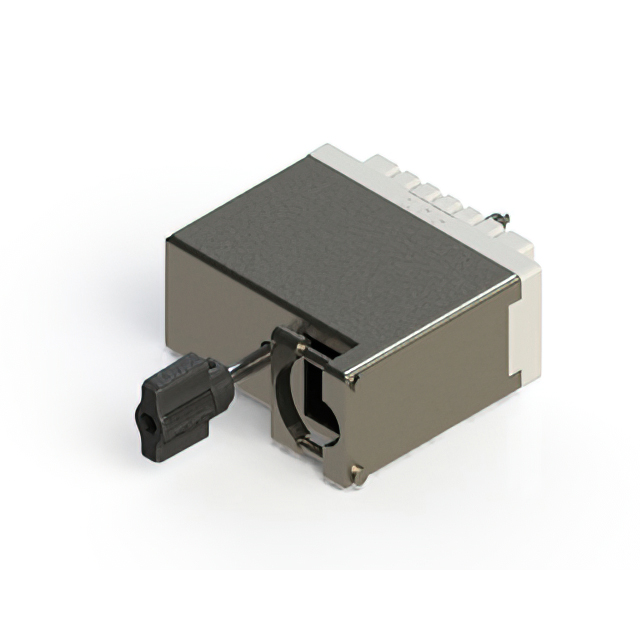

516-090-541-465
ActiveEDAC Inc.
516 SERIES RACK & PANEL CONNECTO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 516-090-541-465 |
|---|---|
| Color | Gray |
| Connector Style | Rack and Panel |
| Connector Type | Housing for Non-Gendered Contacts |
| Connector Usage | Receptacle |
| Features | Jackscrew, Backshell |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 90 |
| Number of Rows | 13 |
| Pitch [x] | 0.15 in |
| Pitch [x] | 3.81 mm |
516-090 Series
...
| Part | Color | Number of Rows | Pitch [x] | Pitch [x] | Features | Note | Connector Type | Connector Usage | Number of Positions | Connector Style | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Green | 13 | 0.15 in | 3.81 mm | Jackscrew Socket | Contacts Not Included | Housing for Non-Gendered Contacts | Receptacle | 90 | Rack and Panel | |
EDAC Inc. | Gray | 13 | 0.15 in | 3.81 mm | Backshell Guide Pin Jackscrew Socket | Contacts Not Included | Housing for Non-Gendered Contacts | Plug | 90 | Rack and Panel | Free Hanging (In-Line) |
EDAC Inc. | Green | 13 | 0.15 in | 3.81 mm | Backshell | Contacts Not Included | Housing for Non-Gendered Contacts | Plug | 90 | Rack and Panel | Free Hanging (In-Line) |
EDAC Inc. | Gray | 13 | 0.15 in | 3.81 mm | Backshell | Contacts Not Included | Housing for Non-Gendered Contacts | Plug | 90 | Rack and Panel | Free Hanging (In-Line) |
EDAC Inc. | Gray | 13 | 0.15 in | 3.81 mm | Backshell Jackscrew | Contacts Not Included | Housing for Non-Gendered Contacts | Receptacle | 90 | Rack and Panel | Free Hanging (In-Line) |
EDAC Inc. | Gray | 13 | 0.15 in | 3.81 mm | Jackscrew Socket | Contacts Not Included | Housing for Non-Gendered Contacts | Plug | 90 | Rack and Panel | |
EDAC Inc. | Gray | 13 | 0.15 in | 3.81 mm | Backshell | Contacts Not Included | Housing for Non-Gendered Contacts | Receptacle | 90 | Rack and Panel | Free Hanging (In-Line) |
EDAC Inc. | Gray | 13 | 0.15 in | 3.81 mm | Backshell Jackscrew Socket | Contacts Not Included | Housing for Non-Gendered Contacts | Plug | 90 | Rack and Panel | Free Hanging (In-Line) |
EDAC Inc. | Green | 13 | 0.15 in | 3.81 mm | Backshell Jackscrew | Contacts Not Included | Housing for Non-Gendered Contacts | Plug | 90 | Rack and Panel | Free Hanging (In-Line) |
EDAC Inc. | Green | 13 | 0.15 in | 3.81 mm | Backshell Jackscrew Socket Mating Guide | Contacts Not Included | Housing for Non-Gendered Contacts | Receptacle | 90 | Rack and Panel | Free Hanging (In-Line) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 105.45 | |
Description
General part information
516-090 Series
90 Position Housing for Non-Gendered Contacts Connector Gray Free Hanging (In-Line) Rack and Panel
