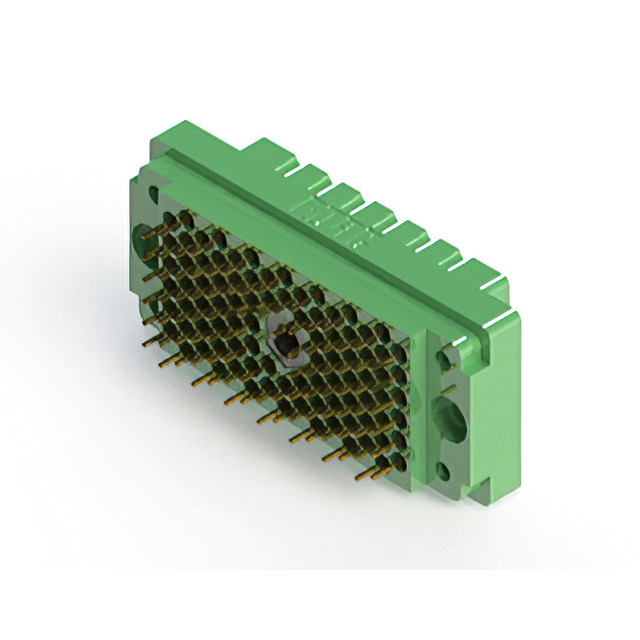

516-090-520-206

Active

EDAC Inc.

RACK & PANEL CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

516-090-520-206

Active

EDAC Inc.

RACK & PANEL CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	516-090-520-206

Color	Green
Connector Style	Rack and Panel
Connector Type	Housing for Non-Gendered Contacts
Connector Usage	Receptacle
Features	Jackscrew Socket
Note	Contacts Not Included
Number of Positions	90
Number of Rows	13
Pitch [x]	0.15 in
Pitch [x]	3.81 mm

516-090 Series

...

Part	Color	Number of Rows	Pitch [x]	Pitch [x]	Features	Note	Connector Type	Connector Usage	Number of Positions	Connector Style	Mounting Type
EDAC Inc. 516-090-520-206	Green	13	0.15 in	3.81 mm	Jackscrew Socket	Contacts Not Included	Housing for Non-Gendered Contacts	Receptacle	90	Rack and Panel
EDAC Inc. 516-090-541-322	Gray	13	0.15 in	3.81 mm	Backshell Guide Pin Jackscrew Socket	Contacts Not Included	Housing for Non-Gendered Contacts	Plug	90	Rack and Panel	Free Hanging (In-Line)
EDAC Inc. 516-090-500-560	Green	13	0.15 in	3.81 mm	Backshell	Contacts Not Included	Housing for Non-Gendered Contacts	Plug	90	Rack and Panel	Free Hanging (In-Line)
EDAC Inc. 516-090-541-360	Gray	13	0.15 in	3.81 mm	Backshell	Contacts Not Included	Housing for Non-Gendered Contacts	Plug	90	Rack and Panel	Free Hanging (In-Line)
EDAC Inc. 516-090-541-465	Gray	13	0.15 in	3.81 mm	Backshell Jackscrew	Contacts Not Included	Housing for Non-Gendered Contacts	Receptacle	90	Rack and Panel	Free Hanging (In-Line)
EDAC Inc. 516-090-520-306	Gray	13	0.15 in	3.81 mm	Jackscrew Socket	Contacts Not Included	Housing for Non-Gendered Contacts	Plug	90	Rack and Panel
EDAC Inc. 516-090-542-420	Gray	13	0.15 in	3.81 mm	Backshell	Contacts Not Included	Housing for Non-Gendered Contacts	Receptacle	90	Rack and Panel	Free Hanging (In-Line)
EDAC Inc. 516-090-542-326	Gray	13	0.15 in	3.81 mm	Backshell Jackscrew Socket	Contacts Not Included	Housing for Non-Gendered Contacts	Plug	90	Rack and Panel	Free Hanging (In-Line)
EDAC Inc. 516-090-500-165	Green	13	0.15 in	3.81 mm	Backshell Jackscrew	Contacts Not Included	Housing for Non-Gendered Contacts	Plug	90	Rack and Panel	Free Hanging (In-Line)
EDAC Inc. 516-090-000-622	Green	13	0.15 in	3.81 mm	Backshell Jackscrew Socket Mating Guide	Contacts Not Included	Housing for Non-Gendered Contacts	Receptacle	90	Rack and Panel	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 52.83
Newark	Each	1	$ 63.41
		100	$ 49.24
		250	$ 45.87
		500	$ 45.29
		1000	$ 41.26

Description

General part information

516-090 Series

90 Position Housing for Non-Gendered Contacts Connector Green Rack and Panel

Documents

Technical documentation and resources
