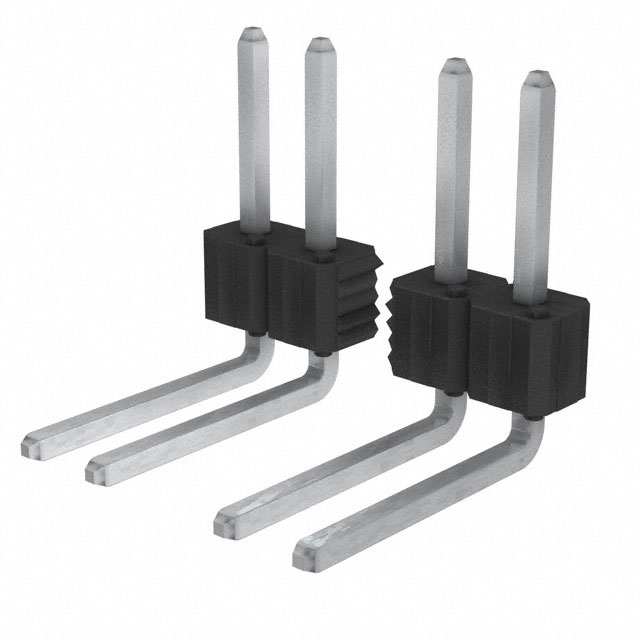

10118884-405001LF

Active

Amphenol ICC (FCI)

CONN HEADER R/A 5POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

Documentsbergstik productpresentation Other Related Document Datasheet +1

10118884-405001LF

Active

Amphenol ICC (FCI)

CONN HEADER R/A 5POS 2.54MM

Deep-Dive with AI

Documentsbergstik productpresentation Other Related Document Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10118884-405001LF

Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post [x]	7.49 mm
Contact Length - Post [x]	0.295 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.095 in
Insulation Height [z]	2.41 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder

10118884 Series

Part	Pitch - Mating	Pitch - Mating	Contact Length - Mating [x]	Contact Length - Mating	Number of Positions Loaded	Contact Finish - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Shrouding	Termination	Contact Type	Contact Shape	Number of Rows	Connector Type	Number of Positions	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Fastening Type	Insulation Height [z]	Insulation Height [z]	Contact Finish - Post	Contact Material	Mounting Type	Contact Length - Mating
Amphenol ICC (FCI) 10118884-536004LF	0.1 in	2.54 mm	0.23 in	5.84 mm	All	Gold	0.12 in	3.05 mm	Unshrouded	Solder	Male Pin	Square	1	Breakaway Header	36	Black	30 Áin	0.76 Ám	UL94 V-0	Push-Pull	0.095 in	2.41 mm	Tin	Phosphor Bronze	Through Hole Right Angle
Amphenol ICC (FCI) 10118884-510004LF	0.1 in	2.54 mm	0.23 in	5.84 mm	All	Gold	0.12 in	3.05 mm	Unshrouded	Solder	Male Pin	Square	1	Breakaway Header	10	Black	30 Áin	0.76 Ám	UL94 V-0	Push-Pull	0.095 in	2.41 mm	Tin	Phosphor Bronze	Through Hole Right Angle
Amphenol ICC (FCI) 10118884-406013LF	0.1 in	2.54 mm		3.5 mm	All		0.238 in	6.05 mm	Unshrouded	Solder	Male Pin	Square	1	Breakaway Header	6	Black	100 çin	2.54 çm	UL94 V-0	Push-Pull	0.095 in	2.41 mm	Tin	Phosphor Bronze	Through Hole Right Angle	0.138 in
Amphenol ICC (FCI) 10118884-405002LF	0.1 in	2.54 mm		6.2 mm	All		0.12 in	3.05 mm	Unshrouded	Solder	Male Pin	Square	1	Breakaway Header		Black	100 çin	2.54 çm	UL94 V-0	Push-Pull	0.095 in	2.41 mm	Tin	Phosphor Bronze	Through Hole Right Angle	0.244 "
Amphenol ICC (FCI) 10118884-505006LF	0.1 in	2.54 mm		7.62 mm	All	Gold	0.12 in	3.05 mm	Unshrouded	Solder	Male Pin	Square	1	Breakaway Header		Black	30 Áin	0.76 Ám	UL94 V-0	Push-Pull	0.095 in	2.41 mm	Tin	Phosphor Bronze	Through Hole Right Angle	0.3 in
Amphenol ICC (FCI) 10118884-405003LF	0.1 in	2.54 mm		3.5 mm	All		0.238 in	6.05 mm	Unshrouded	Solder	Male Pin	Square	1	Breakaway Header		Black	100 çin	2.54 çm	UL94 V-0	Push-Pull	0.095 in	2.41 mm	Tin	Phosphor Bronze	Through Hole Right Angle	0.138 in
Amphenol ICC (FCI) 10118884-405001LF	0.1 in	2.54 mm	0.23 in	5.84 mm	All		0.295 in	7.49 mm	Unshrouded	Solder	Male Pin	Square	1	Breakaway Header		Black	100 çin	2.54 çm	UL94 V-0	Push-Pull	0.095 in	2.41 mm	Tin	Phosphor Bronze	Through Hole Right Angle
