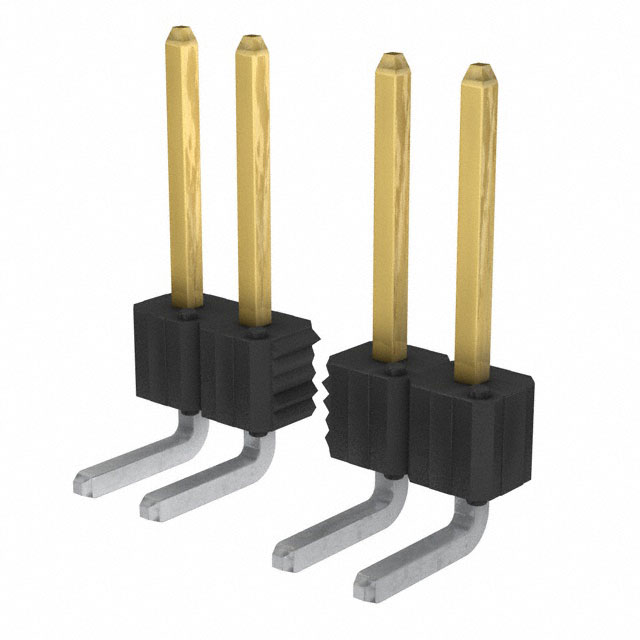

10118884-505006LF

Active

Amphenol ICC (FCI)

CONN HEADER R/A 5POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 54122-810161900LF +1

10118884-505006LF

Active

Amphenol ICC (FCI)

CONN HEADER R/A 5POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet 54122-810161900LF +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10118884-505006LF

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Mating	0.3 in
Contact Length - Mating	7.62 mm
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.095 in
Insulation Height [z]	2.41 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder

10118884 Series

Part	Pitch - Mating	Pitch - Mating	Contact Length - Mating [x]	Contact Length - Mating	Number of Positions Loaded	Contact Finish - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Shrouding	Termination	Contact Type	Contact Shape	Number of Rows	Connector Type	Number of Positions	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Fastening Type	Insulation Height [z]	Insulation Height [z]	Contact Finish - Post	Contact Material	Mounting Type	Contact Length - Mating
Amphenol ICC (FCI) 10118884-536004LF	0.1 in	2.54 mm	0.23 in	5.84 mm	All	Gold	0.12 in	3.05 mm	Unshrouded	Solder	Male Pin	Square	1	Breakaway Header	36	Black	30 Áin	0.76 Ám	UL94 V-0	Push-Pull	0.095 in	2.41 mm	Tin	Phosphor Bronze	Through Hole Right Angle
Amphenol ICC (FCI) 10118884-510004LF	0.1 in	2.54 mm	0.23 in	5.84 mm	All	Gold	0.12 in	3.05 mm	Unshrouded	Solder	Male Pin	Square	1	Breakaway Header	10	Black	30 Áin	0.76 Ám	UL94 V-0	Push-Pull	0.095 in	2.41 mm	Tin	Phosphor Bronze	Through Hole Right Angle
Amphenol ICC (FCI) 10118884-406013LF	0.1 in	2.54 mm		3.5 mm	All		0.238 in	6.05 mm	Unshrouded	Solder	Male Pin	Square	1	Breakaway Header	6	Black	100 çin	2.54 çm	UL94 V-0	Push-Pull	0.095 in	2.41 mm	Tin	Phosphor Bronze	Through Hole Right Angle	0.138 in
Amphenol ICC (FCI) 10118884-405002LF	0.1 in	2.54 mm		6.2 mm	All		0.12 in	3.05 mm	Unshrouded	Solder	Male Pin	Square	1	Breakaway Header		Black	100 çin	2.54 çm	UL94 V-0	Push-Pull	0.095 in	2.41 mm	Tin	Phosphor Bronze	Through Hole Right Angle	0.244 "
Amphenol ICC (FCI) 10118884-505006LF	0.1 in	2.54 mm		7.62 mm	All	Gold	0.12 in	3.05 mm	Unshrouded	Solder	Male Pin	Square	1	Breakaway Header		Black	30 Áin	0.76 Ám	UL94 V-0	Push-Pull	0.095 in	2.41 mm	Tin	Phosphor Bronze	Through Hole Right Angle	0.3 in
Amphenol ICC (FCI) 10118884-405003LF	0.1 in	2.54 mm		3.5 mm	All		0.238 in	6.05 mm	Unshrouded	Solder	Male Pin	Square	1	Breakaway Header		Black	100 çin	2.54 çm	UL94 V-0	Push-Pull	0.095 in	2.41 mm	Tin	Phosphor Bronze	Through Hole Right Angle	0.138 in
Amphenol ICC (FCI) 10118884-405001LF	0.1 in	2.54 mm	0.23 in	5.84 mm	All		0.295 in	7.49 mm	Unshrouded	Solder	Male Pin	Square	1	Breakaway Header		Black	100 çin	2.54 çm	UL94 V-0	Push-Pull	0.095 in	2.41 mm	Tin	Phosphor Bronze	Through Hole Right Angle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

10118884 Series

Connector Header Through Hole, Right Angle 5 position 0.100" (2.54mm)
