10118884 Series

Catalog

CONN HEADER R/A 8POS 2.54MM

Part	Connector Type	Number of Positions Loaded	Pitch - Mating	Insulation Height	Contact Finish Thickness - Mating	Number of Positions	Number of Rows	Insulation Color	Contact Type	Fastening Type	Contact Length - Post	Material Flammability Rating	Shrouding	Contact Length - Mating	Contact Shape	Contact Finish - Post	Termination	Style	Contact Finish - Mating	Mounting Type	Contact Material

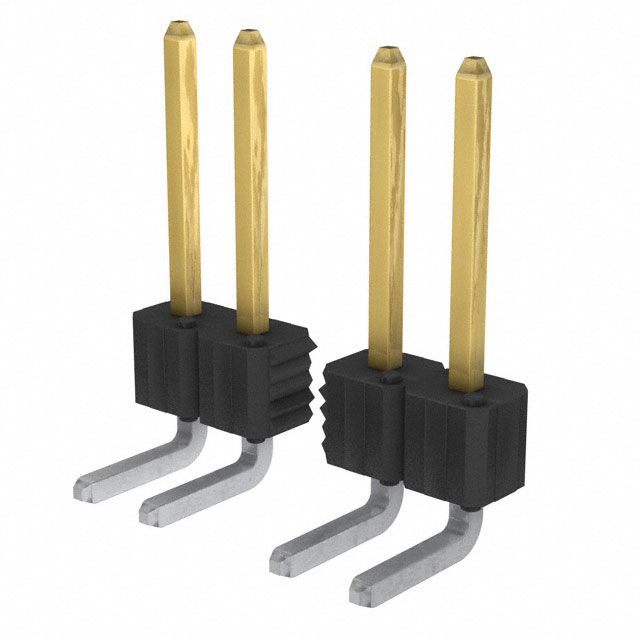

Amphenol ICC (FCI) 10118884-508009LF	Breakaway Header	All	0.1 in	0.095 in	30 µin	8	1	Black	Male Pin	Push-Pull	0.12 in	UL94 V-0	Unshrouded	0.318 in	Square	Tin	Solder	Board	Gold	Right Angle Through Hole	Phosphor Bronze
Amphenol ICC (FCI) 10118884-536004LF	Breakaway Header	All	0.1 in	0.095 in	30 µin	36	1	Black	Male Pin	Push-Pull	0.12 in	UL94 V-0	Unshrouded	0.23 in	Square	Tin	Solder	Board	Gold	Right Angle Through Hole	Phosphor Bronze
Amphenol ICC (FCI) 10118884-406011LF	Breakaway Header	All	0.1 in	0.095 in	100 µin	6	1	Black	Male Pin	Push-Pull	0.238 in	UL94 V-0	Unshrouded	0.157 in	Square	Tin	Solder	Board	Tin	Right Angle Through Hole	Phosphor Bronze
Amphenol ICC (FCI) 10118884-510004LF	Breakaway Header	All	0.1 in	0.095 in	30 µin	10	1	Black	Male Pin	Push-Pull	0.12 in	UL94 V-0	Unshrouded	0.23 in	Square	Tin	Solder	Board	Gold	Right Angle Through Hole	Phosphor Bronze
Amphenol ICC (FCI) 10118884-406013LF	Breakaway Header	All	0.1 in	0.095 in	100 µin	6	1	Black	Male Pin	Push-Pull	0.238 in	UL94 V-0	Unshrouded	0.138 in	Square	Tin	Solder	Board	Tin	Right Angle Through Hole	Phosphor Bronze
Amphenol ICC (FCI) 10118884-405002LF	Breakaway Header	All	0.1 in	0.095 in	100 µin	5	1	Black	Male Pin	Push-Pull	0.12 in	UL94 V-0	Unshrouded	0.244 in	Square	Tin	Solder	Board	Tin	Right Angle Through Hole	Phosphor Bronze
Amphenol ICC (FCI) 10118884-505006LF	Breakaway Header	All	0.1 in	0.095 in	30 µin	5	1	Black	Male Pin	Push-Pull	0.12 in	UL94 V-0	Unshrouded	0.3 in	Square	Tin	Solder	Board	Gold	Right Angle Through Hole	Phosphor Bronze
Amphenol ICC (FCI) 10118884-405003LF	Breakaway Header	All	0.1 in	0.095 in	100 µin	5	1	Black	Male Pin	Push-Pull	0.238 in	UL94 V-0	Unshrouded	0.138 in	Square	Tin	Solder	Board	Tin	Right Angle Through Hole	Phosphor Bronze
Amphenol ICC (FCI) 10118884-405001LF	Breakaway Header	All	0.1 in	0.095 in	100 µin	5	1	Black	Male Pin	Push-Pull	0.295 in	UL94 V-0	Unshrouded	0.23 in	Square	Tin	Solder	Board	Tin	Right Angle Through Hole	Phosphor Bronze

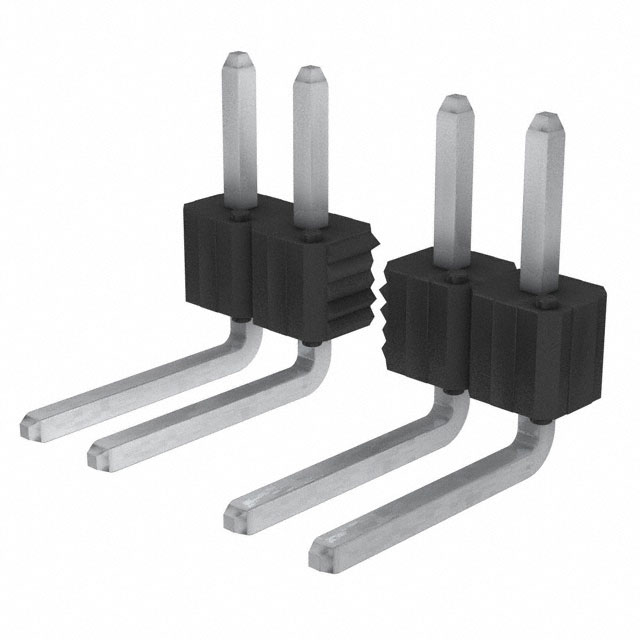

Amphenol ICC (FCI) 10118884-405005LF	Breakaway Header	All	0.1 in	0.095 in	100 µin	5	1	Black	Male Pin	Push-Pull	0.238 in	UL94 V-0	Unshrouded	0.157 in	Square	Tin	Solder	Board	Tin	Right Angle Through Hole	Phosphor Bronze
