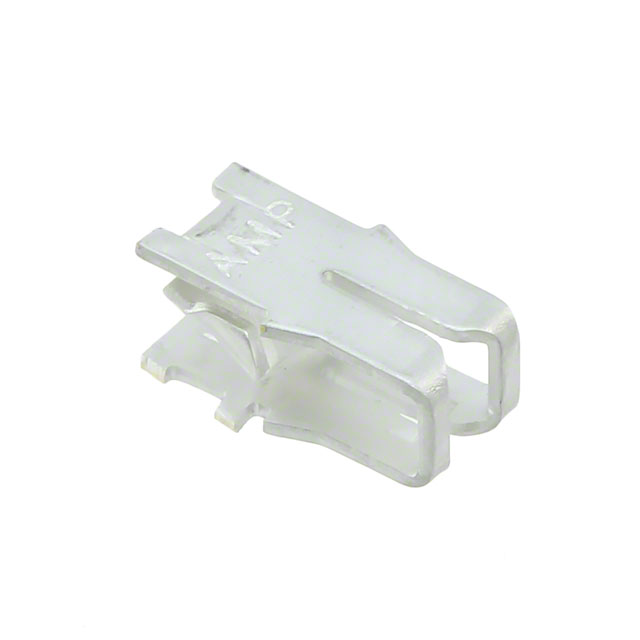

63658-1
ActiveTE Connectivity Raychem Cable Protection
MAG MATE TERM 25-22 016TPBR
Deep-Dive with AI
Search across all available documentation for this part.
63658-1
ActiveTE Connectivity Raychem Cable Protection
MAG MATE TERM 25-22 016TPBR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 63658-1 |
|---|---|
| Features | Locking |
| Size | 2 Liter |
| Style | 300 |
| Terminal Type | Poke-In Terminal |
| Termination | IDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.24 | |
| 10 | $ 0.21 | |||
| 25 | $ 0.21 | |||
| 50 | $ 0.21 | |||
| 100 | $ 0.19 | |||
| 250 | $ 0.16 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.14 | |||
| 2500 | $ 0.13 | |||
| Tape & Reel (TR) | 96000 | $ 0.11 | ||
Description
General part information
MAG-MATE 300 Series
Poke-In, .57 – .72 mm Aluminum Wire, 20 – 18 AWG Lead Wire, .5 – .9 mm² Lead Wire, .45 – .64 mm Magnet Wire, MAG-MATE 300, Magnet Wire Terminals
