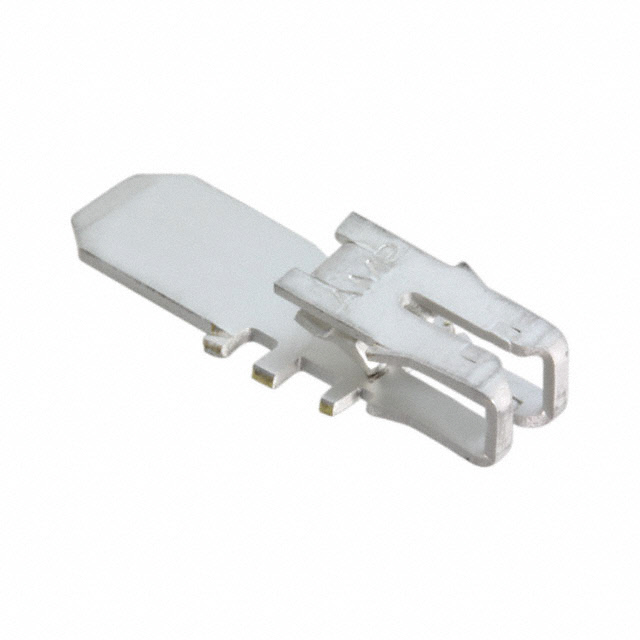

2-316300-9

Active

TE Connectivity Raychem Cable Protection

CONN MAG TERM 17-18AWG TAB

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CONN MAG TERM 17-18AWG TAB

Technical Specifications

Parameters and characteristics for this part

Part	Features	Termination	Size	Terminal Type	Wire Gauge [Max]	Wire Gauge [Min]	Style
TE Connectivity Raychem Cable Protection 2-316300-7	QC .187	Tab	1 Gallon	Box IDC
TE Connectivity Raychem Cable Protection 2-316300-9	QC .187	Tab	1 Gallon	Box IDC	18 AWG	17 AWG
TE Connectivity Raychem Cable Protection 63690-1		Crimp	6	Box IDC	22 AWG	17.5 AWG	300
TE Connectivity Raychem Cable Protection 316300-4	QC .187	Tab	1 Gallon	Box IDC
TE Connectivity Raychem Cable Protection 1247003-3		Press-Fit		Box IDC	23 AWG	19 AWG	300
TE Connectivity Raychem Cable Protection 1247002-3		Press-Fit		Box IDC			300
TE Connectivity Raychem Cable Protection 63658-1	Locking	IDC	2 Liter	Poke-In Terminal			300
TE Connectivity Raychem Cable Protection 1740698-2		IDC		Box IDC/Poke-In	30 AWG	26 AWG
TE Connectivity Raychem Cable Protection 969125-1		IDC		Box IDC/Poke-In	23 AWG	20 AWG
TE Connectivity Raychem Cable Protection 62651-1	QC .250	Quick Connect	2 Liter	Box IDC	30 AWG	27 AWG	300

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	40000	$ 0.12

General part information

Terminal Magnetic Connector 17-18 AWG Tab

Technical documentation and resources

No documents available
