MAG-MATE 300 Series

Catalog

CONN MAG TERM TAB

Part	Features	Termination	Size	Terminal Type	Wire Gauge [Max]	Wire Gauge [Min]	Style

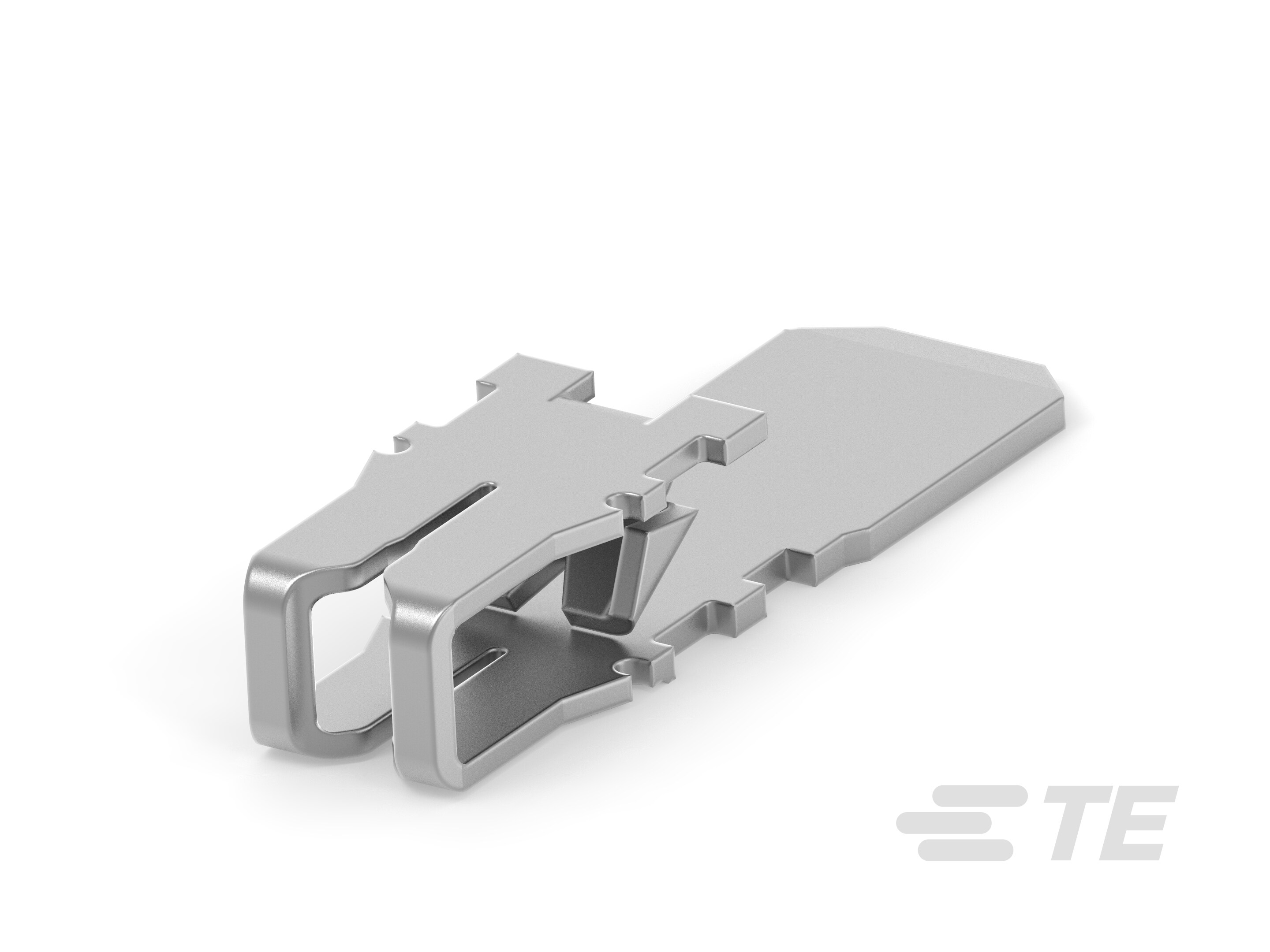

TE Connectivity Raychem Cable Protection 2-316300-7	QC .187	Tab	1 Gallon	Box IDC

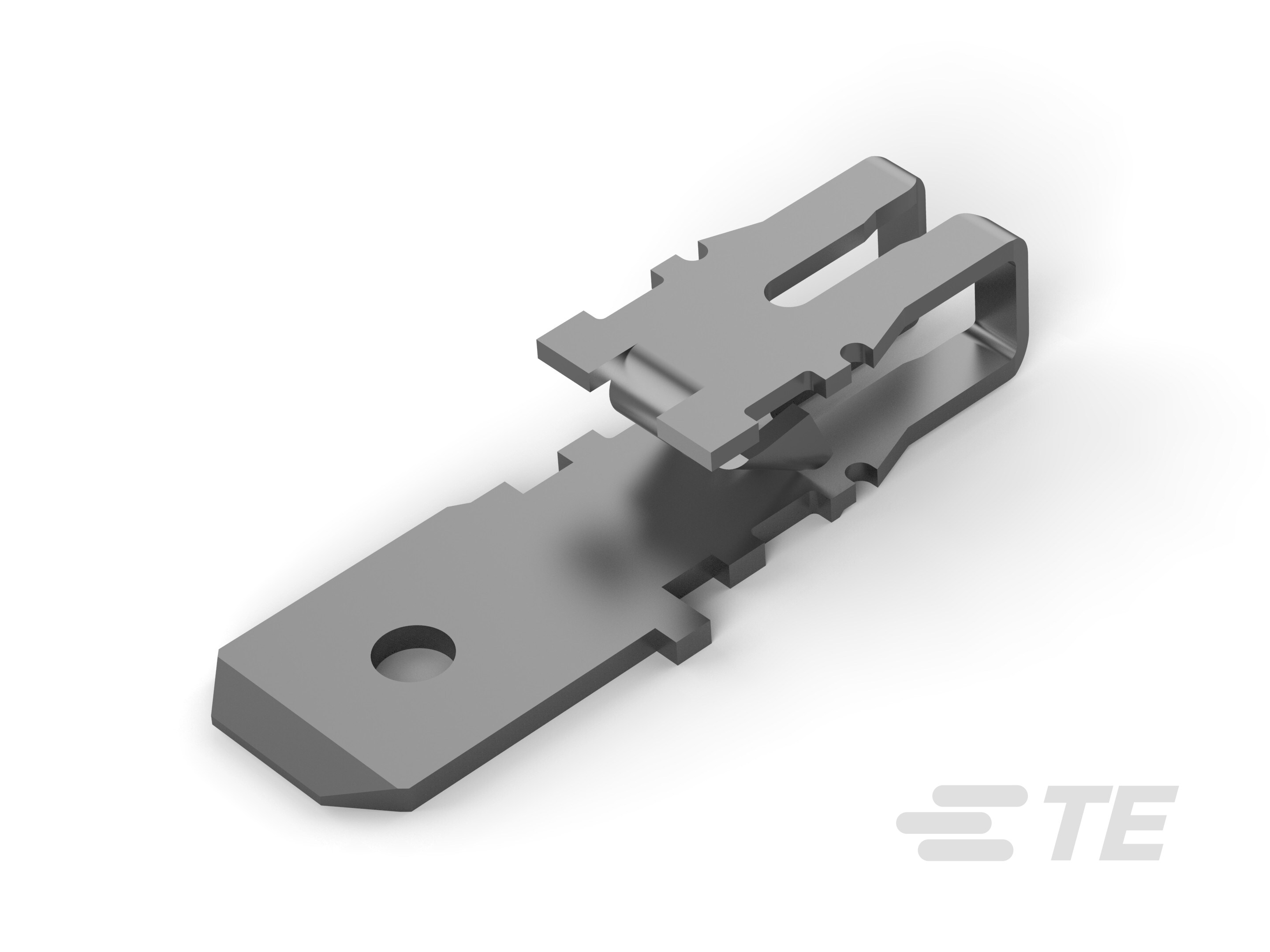

TE Connectivity Raychem Cable Protection 2-316300-9	QC .187	Tab	1 Gallon	Box IDC	18 AWG	17 AWG
TE Connectivity Raychem Cable Protection 63690-1		Crimp	6	Box IDC	22 AWG	17.5 AWG	300
TE Connectivity Raychem Cable Protection 316300-4	QC .187	Tab	1 Gallon	Box IDC
TE Connectivity Raychem Cable Protection 1247003-3		Press-Fit		Box IDC	23 AWG	19 AWG	300
TE Connectivity Raychem Cable Protection 1247002-3		Press-Fit		Box IDC			300
TE Connectivity Raychem Cable Protection 63658-1	Locking	IDC	2 Liter	Poke-In Terminal			300
TE Connectivity Raychem Cable Protection 1740698-2		IDC		Box IDC/Poke-In	30 AWG	26 AWG
TE Connectivity Raychem Cable Protection 969125-1		IDC		Box IDC/Poke-In	23 AWG	20 AWG
TE Connectivity Raychem Cable Protection 62651-1	QC .250	Quick Connect	2 Liter	Box IDC	30 AWG	27 AWG	300
