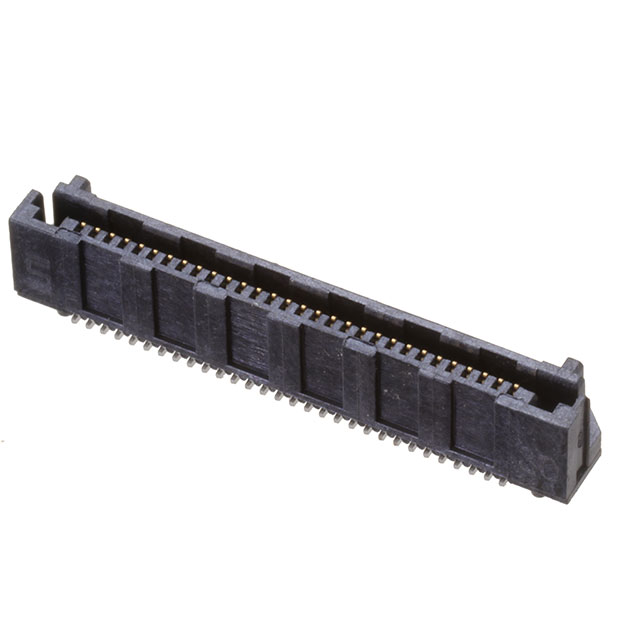

LSS-130-01-F-DV-A

Active

Samtec Inc.

CONN SELF-MATE 60POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsLSS Datasheet Datasheet +1

LSS-130-01-F-DV-A

Active

Samtec Inc.

CONN SELF-MATE 60POS SMD GOLD

Deep-Dive with AI

DocumentsLSS Datasheet Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LSS-130-01-F-DV-A

Connector Type	Self Mating, Non-Gendered, Hermaphroditic
Contact Finish	Gold
Contact Finish Thickness	3 Áin
Contact Finish Thickness	0.076 Ám
Features	Board Guide
Height Above Board	0.169 in
Height Above Board	4.3 mm
Mated Stacking Heights	7 mm, 6 mm, 9 mm
Mounting Type	Surface Mount
Number of Positions	60
Number of Rows	2
Pitch [x]	0.64 mm
Pitch [x]	0.025 in

LSS-130 Series

Part	Pitch [x]	Pitch [x]	Contact Finish	Number of Positions	Connector Type	Number of Rows	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Height Above Board [z]	Height Above Board [z]	Mated Stacking Heights	Features	Height Above Board	Height Above Board
Samtec Inc. LSS-130-02-L-DV-A	0.64 mm	0.025 in	Gold	60	Self Mating Non-Gendered Hermaphroditic	2	Surface Mount	10 Áin	0.25 Ám	0.287 in	7.3 mm	9 mm 10 mm 12 mm	Board Guide
Samtec Inc. LSS-130-01-L-DV-A-K-TR	0.64 mm	0.025 in	Gold	60	Self Mating Non-Gendered Hermaphroditic	2	Surface Mount	10 Áin	0.25 Ám			6 mm 7 mm 9 mm	Board Guide Pick and Place	0.169 in	4.3 mm
Samtec Inc. LSS-130-01-L-DV-A-TR	0.64 mm	0.025 in	Gold	60	Self Mating Non-Gendered Hermaphroditic	2	Surface Mount	10 Áin	0.25 Ám			6 mm 7 mm 9 mm	Board Guide	0.169 in	4.3 mm
Samtec Inc. LSS-130-02-F-DV-A-TR	0.64 mm	0.025 in	Gold	60	Self Mating Non-Gendered Hermaphroditic	2	Surface Mount	3 Áin	0.076 Ám	0.287 in	7.3 mm	9 mm 10 mm 12 mm	Board Guide
Samtec Inc. LSS-130-02-L-DV-LC	0.64 mm	0.025 in	Gold	60	Self Mating Non-Gendered Hermaphroditic	2	Surface Mount	10 Áin	0.25 Ám	0.287 in	7.3 mm	9 mm 10 mm 12 mm
Samtec Inc. LSS-130-03-F-DV-A	0.64 mm	0.025 in	Gold	60	Self Mating Non-Gendered Hermaphroditic	2	Surface Mount	3 Áin	0.076 Ám			7 mm 8 mm 10 mm	Board Guide	0.209 in	5.3 mm
Samtec Inc. LSS-130-01-F-DV-A	0.64 mm	0.025 in	Gold	60	Self Mating Non-Gendered Hermaphroditic	2	Surface Mount	3 Áin	0.076 Ám			6 mm 7 mm 9 mm	Board Guide	0.169 in	4.3 mm
Samtec Inc. LSS-130-01-F-DV-A-K	0.64 mm	0.025 in	Gold	60	Self Mating Non-Gendered Hermaphroditic	2	Surface Mount	3 Áin	0.076 Ám			6 mm 7 mm 9 mm	Board Guide Pick and Place	0.169 in	4.3 mm
Samtec Inc. LSS-130-03-F-DV-A-TR	0.64 mm	0.025 in	Gold	60	Self Mating Non-Gendered Hermaphroditic	2	Surface Mount	3 Áin	0.076 Ám			7 mm 8 mm 10 mm	Board Guide	0.209 in	5.3 mm
Samtec Inc. LSS-130-03-F-DV-LC	0.64 mm	0.025 in	Gold	60	Self Mating Non-Gendered Hermaphroditic	2	Surface Mount	3 Áin	0.076 Ám			7 mm 8 mm 10 mm		0.209 in	5.3 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 4.14
		25	$ 3.74
		50	$ 3.48
		100	$ 3.31
		500	$ 3.10

Description

General part information

LSS-130 Series

60 Position Connector Self Mating, Non-Gendered, Hermaphroditic Surface Mount Gold

LSS-130-01-F-DV-A

Deep-Dive with AI

LSS-130-01-F-DV-A

Deep-Dive with AI

Technical Specifications

LSS-130 Series

Pricing

Description

LSS-130 Series

Documents

LSS Datasheet

Datasheet

0.635 mm Razor Beam™ High-Speed Hermaphroditic Terminal/Socket Strip

LSS-130 Series
