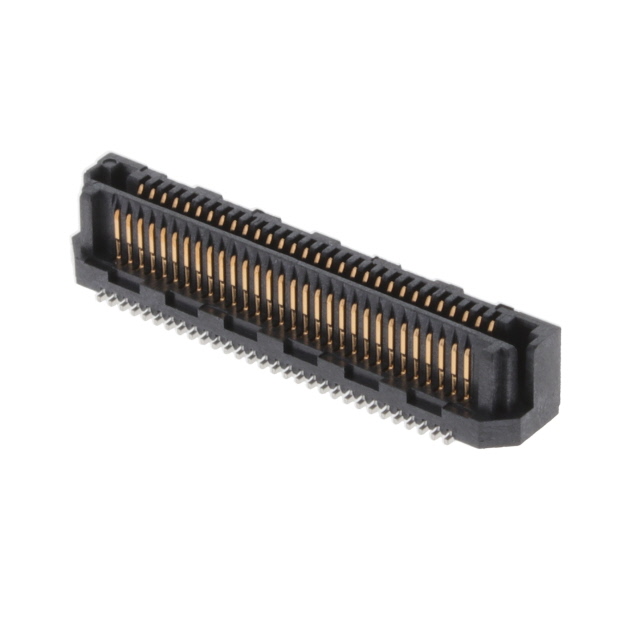

LSS-130-01-L-DV-A-K-TR

Active

Samtec Inc.

CONN SELF-MATE 60POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

Documents0.635 mm Razor Beam™ High-Speed Hermaphroditic Terminal/Socket Strip LSS Datasheet +1

LSS-130-01-L-DV-A-K-TR

Active

Samtec Inc.

CONN SELF-MATE 60POS SMD GOLD

Deep-Dive with AI

Documents0.635 mm Razor Beam™ High-Speed Hermaphroditic Terminal/Socket Strip LSS Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LSS-130-01-L-DV-A-K-TR

Connector Type	Self Mating, Non-Gendered, Hermaphroditic
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Pick and Place, Board Guide
Height Above Board	0.169 in
Height Above Board	4.3 mm
Mated Stacking Heights	7 mm, 6 mm, 9 mm
Mounting Type	Surface Mount
Number of Positions	60
Number of Rows	2
Pitch [x]	0.64 mm
Pitch [x]	0.025 in

LSS-130 Series

Part	Pitch [x]	Pitch [x]	Contact Finish	Number of Positions	Connector Type	Number of Rows	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Height Above Board [z]	Height Above Board [z]	Mated Stacking Heights	Features	Height Above Board	Height Above Board
Samtec Inc. LSS-130-02-L-DV-A	0.64 mm	0.025 in	Gold	60	Self Mating Non-Gendered Hermaphroditic	2	Surface Mount	10 Áin	0.25 Ám	0.287 in	7.3 mm	9 mm 10 mm 12 mm	Board Guide
Samtec Inc. LSS-130-01-L-DV-A-K-TR	0.64 mm	0.025 in	Gold	60	Self Mating Non-Gendered Hermaphroditic	2	Surface Mount	10 Áin	0.25 Ám			6 mm 7 mm 9 mm	Board Guide Pick and Place	0.169 in	4.3 mm
Samtec Inc. LSS-130-01-L-DV-A-TR	0.64 mm	0.025 in	Gold	60	Self Mating Non-Gendered Hermaphroditic	2	Surface Mount	10 Áin	0.25 Ám			6 mm 7 mm 9 mm	Board Guide	0.169 in	4.3 mm
Samtec Inc. LSS-130-02-F-DV-A-TR	0.64 mm	0.025 in	Gold	60	Self Mating Non-Gendered Hermaphroditic	2	Surface Mount	3 Áin	0.076 Ám	0.287 in	7.3 mm	9 mm 10 mm 12 mm	Board Guide
Samtec Inc. LSS-130-02-L-DV-LC	0.64 mm	0.025 in	Gold	60	Self Mating Non-Gendered Hermaphroditic	2	Surface Mount	10 Áin	0.25 Ám	0.287 in	7.3 mm	9 mm 10 mm 12 mm
Samtec Inc. LSS-130-03-F-DV-A	0.64 mm	0.025 in	Gold	60	Self Mating Non-Gendered Hermaphroditic	2	Surface Mount	3 Áin	0.076 Ám			7 mm 8 mm 10 mm	Board Guide	0.209 in	5.3 mm
Samtec Inc. LSS-130-01-F-DV-A	0.64 mm	0.025 in	Gold	60	Self Mating Non-Gendered Hermaphroditic	2	Surface Mount	3 Áin	0.076 Ám			6 mm 7 mm 9 mm	Board Guide	0.169 in	4.3 mm
Samtec Inc. LSS-130-01-F-DV-A-K	0.64 mm	0.025 in	Gold	60	Self Mating Non-Gendered Hermaphroditic	2	Surface Mount	3 Áin	0.076 Ám			6 mm 7 mm 9 mm	Board Guide Pick and Place	0.169 in	4.3 mm
Samtec Inc. LSS-130-03-F-DV-A-TR	0.64 mm	0.025 in	Gold	60	Self Mating Non-Gendered Hermaphroditic	2	Surface Mount	3 Áin	0.076 Ám			7 mm 8 mm 10 mm	Board Guide	0.209 in	5.3 mm
Samtec Inc. LSS-130-03-F-DV-LC	0.64 mm	0.025 in	Gold	60	Self Mating Non-Gendered Hermaphroditic	2	Surface Mount	3 Áin	0.076 Ám			7 mm 8 mm 10 mm		0.209 in	5.3 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.87
		25	$ 4.40
		50	$ 4.09
		100	$ 3.89
	Digi-Reel®	1	$ 4.87
		25	$ 4.40
		50	$ 4.09
		100	$ 3.89
	Tape & Reel (TR)	550	$ 3.21
		1100	$ 2.98
		2750	$ 2.94

Description

General part information

LSS-130 Series

60 Position Connector Self Mating, Non-Gendered, Hermaphroditic Surface Mount Gold

LSS-130-01-L-DV-A-K-TR

Deep-Dive with AI

LSS-130-01-L-DV-A-K-TR

Deep-Dive with AI

Technical Specifications

LSS-130 Series

Pricing

Description

LSS-130 Series

Documents

0.635 mm Razor Beam&#8482; High-Speed Hermaphroditic Terminal/Socket Strip

LSS Datasheet

Datasheet

LSS-130 Series

0.635 mm Razor Beam™ High-Speed Hermaphroditic Terminal/Socket Strip
