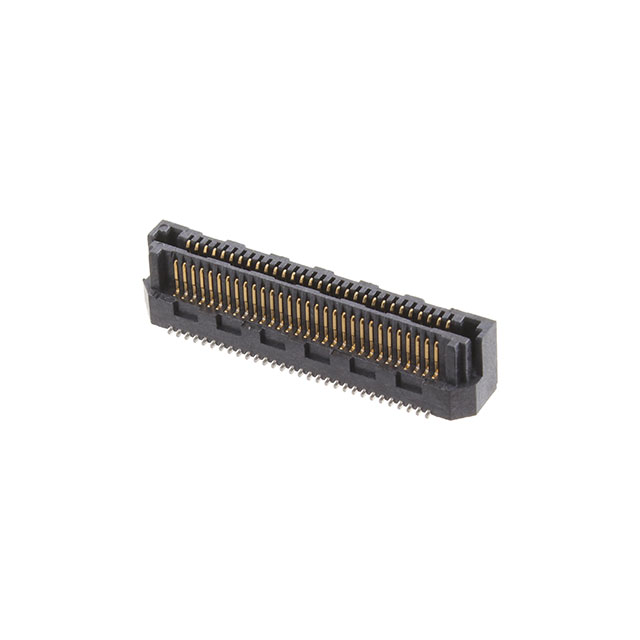

LSS-130-03-F-DV-A
ActiveSamtec Inc.
CONN SELF-MATE 60POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
LSS-130-03-F-DV-A
ActiveSamtec Inc.
CONN SELF-MATE 60POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LSS-130-03-F-DV-A |
|---|---|
| Connector Type | Self Mating, Non-Gendered, Hermaphroditic |
| Contact Finish | Gold |
| Contact Finish Thickness | 3 Áin |
| Contact Finish Thickness | 0.076 Ám |
| Features | Board Guide |
| Height Above Board | 5.3 mm |
| Height Above Board | 0.209 in |
| Mated Stacking Heights | 8 mm, 10 mm, 7 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 60 |
| Number of Rows | 2 |
| Pitch [x] | 0.64 mm |
| Pitch [x] | 0.025 in |
LSS-130 Series
| Part | Pitch [x] | Pitch [x] | Contact Finish | Number of Positions | Connector Type | Number of Rows | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Height Above Board [z] | Height Above Board [z] | Mated Stacking Heights | Features | Height Above Board | Height Above Board |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | 0.64 mm | 0.025 in | Gold | 60 | Self Mating Non-Gendered Hermaphroditic | 2 | Surface Mount | 10 Áin | 0.25 Ám | 0.287 in | 7.3 mm | 9 mm 10 mm 12 mm | Board Guide | ||
Samtec Inc. | 0.64 mm | 0.025 in | Gold | 60 | Self Mating Non-Gendered Hermaphroditic | 2 | Surface Mount | 10 Áin | 0.25 Ám | 6 mm 7 mm 9 mm | Board Guide Pick and Place | 0.169 in | 4.3 mm | ||
Samtec Inc. | 0.64 mm | 0.025 in | Gold | 60 | Self Mating Non-Gendered Hermaphroditic | 2 | Surface Mount | 10 Áin | 0.25 Ám | 6 mm 7 mm 9 mm | Board Guide | 0.169 in | 4.3 mm | ||
Samtec Inc. | 0.64 mm | 0.025 in | Gold | 60 | Self Mating Non-Gendered Hermaphroditic | 2 | Surface Mount | 3 Áin | 0.076 Ám | 0.287 in | 7.3 mm | 9 mm 10 mm 12 mm | Board Guide | ||
Samtec Inc. | 0.64 mm | 0.025 in | Gold | 60 | Self Mating Non-Gendered Hermaphroditic | 2 | Surface Mount | 10 Áin | 0.25 Ám | 0.287 in | 7.3 mm | 9 mm 10 mm 12 mm | |||
Samtec Inc. | 0.64 mm | 0.025 in | Gold | 60 | Self Mating Non-Gendered Hermaphroditic | 2 | Surface Mount | 3 Áin | 0.076 Ám | 7 mm 8 mm 10 mm | Board Guide | 0.209 in | 5.3 mm | ||
Samtec Inc. | 0.64 mm | 0.025 in | Gold | 60 | Self Mating Non-Gendered Hermaphroditic | 2 | Surface Mount | 3 Áin | 0.076 Ám | 6 mm 7 mm 9 mm | Board Guide | 0.169 in | 4.3 mm | ||
Samtec Inc. | 0.64 mm | 0.025 in | Gold | 60 | Self Mating Non-Gendered Hermaphroditic | 2 | Surface Mount | 3 Áin | 0.076 Ám | 6 mm 7 mm 9 mm | Board Guide Pick and Place | 0.169 in | 4.3 mm | ||
Samtec Inc. | 0.64 mm | 0.025 in | Gold | 60 | Self Mating Non-Gendered Hermaphroditic | 2 | Surface Mount | 3 Áin | 0.076 Ám | 7 mm 8 mm 10 mm | Board Guide | 0.209 in | 5.3 mm | ||
Samtec Inc. | 0.64 mm | 0.025 in | Gold | 60 | Self Mating Non-Gendered Hermaphroditic | 2 | Surface Mount | 3 Áin | 0.076 Ám | 7 mm 8 mm 10 mm | 0.209 in | 5.3 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 4.34 | |
| 25 | $ 3.92 | |||
| 50 | $ 3.65 | |||
| 100 | $ 3.47 | |||
| 500 | $ 3.25 | |||
Description
General part information
LSS-130 Series
60 Position Connector Self Mating, Non-Gendered, Hermaphroditic Surface Mount Gold
Documents
Technical documentation and resources
