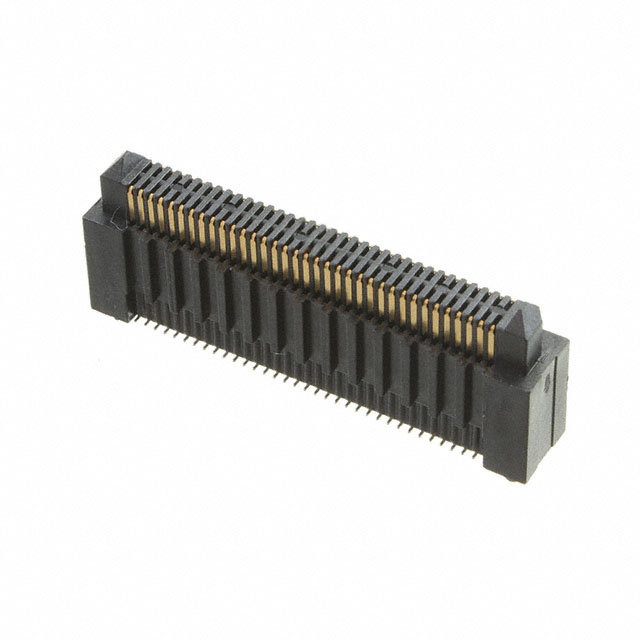

ERM8-035-08.0-L-DV-K-TR

Active

Samtec Inc.

CONN HDR 70POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsERM8-zzz-zz.z-DV-zz Footprint Datasheet

ERM8-035-08.0-L-DV-K-TR

Active

Samtec Inc.

CONN HDR 70POS SMD GOLD

Deep-Dive with AI

DocumentsERM8-zzz-zz.z-DV-zz Footprint Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ERM8-035-08.0-L-DV-K-TR

Connector Type	Header, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Pick and Place, Board Guide
Height Above Board	8.91 mm
Height Above Board	0.351 in
Mated Stacking Heights	12 mm, 15 mm, 10 mm
Mounting Type	Surface Mount
Number of Positions	70
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

ERM8-035 Series

Part	Height Above Board	Height Above Board	Features	Connector Type	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Number of Rows	Contact Finish	Mated Stacking Heights	Number of Positions
Samtec Inc. ERM8-035-05.0-S-DV-TR	8.91 mm	0.351 in	Board Guide	Header Center Strip Contacts	Surface Mount	0.76 Ám	30 Áin	0.8 mm	0.031 in	2	Gold	10 mm 12 mm 15 mm	70
Samtec Inc. ERM8-035-05.0-L-DV-L-K-TR	8.91 mm	0.351 in	Board Guide Latches Pick and Place	Header Center Strip Contacts	Surface Mount	0.25 Ám	10 Áin	0.8 mm	0.031 in	2	Gold	10 mm 12 mm 15 mm	70
Samtec Inc. ERM8-035-09.0-L-DV-K-TR	12.91 mm	0.508 in	Board Guide Pick and Place	Header Center Strip Contacts	Surface Mount	0.25 Ám	10 Áin	0.8 mm	0.031 in	2	Gold	14 mm 16 mm 19 mm	70
Samtec Inc. ERM8-035-02.0-L-DV-TR	5.97 mm	0.235 in	Board Guide	Header Center Strip Contacts	Surface Mount	0.25 Ám	10 Áin	0.8 mm	0.031 in	2	Gold	7 mm 9 mm 12 mm	70
Samtec Inc. ERM8-035-05.0-S-DV-L-TR	8.91 mm	0.351 in	Board Guide Latches	Header Center Strip Contacts	Surface Mount	0.76 Ám	30 Áin	0.8 mm	0.031 in	2	Gold	10 mm 12 mm 15 mm	70
Samtec Inc. ERM8-035-08.0-S-DV-K-TR	8.91 mm	0.351 in	Board Guide Pick and Place	Header Center Strip Contacts	Surface Mount	0.76 Ám	30 Áin	0.8 mm	0.031 in	2	Gold	10 mm 12 mm 15 mm	70
Samtec Inc. ERM8-035-08.0-L-DV-TR	8.91 mm	0.351 in	Board Guide	Header Center Strip Contacts	Surface Mount	0.25 Ám	10 Áin	0.8 mm	0.031 in	2	Gold	10 mm 12 mm 15 mm	70
Samtec Inc. ERM8-035-08.0-L-DV-K-TR	8.91 mm	0.351 in	Board Guide Pick and Place	Header Center Strip Contacts	Surface Mount	0.25 Ám	10 Áin	0.8 mm	0.031 in	2	Gold	10 mm 12 mm 15 mm	70
Samtec Inc. ERM8-035-05.0-S-DV-L-K-TR	8.91 mm	0.351 in	Board Guide Latches Pick and Place	Header Center Strip Contacts	Surface Mount	0.76 Ám	30 Áin	0.8 mm	0.031 in	2	Gold	10 mm 12 mm 15 mm	70
Samtec Inc. ERM8-035-05.0-L-DV-TR	8.91 mm	0.351 in	Board Guide	Header Center Strip Contacts	Surface Mount	0.25 Ám	10 Áin	0.8 mm	0.031 in	2	Gold	10 mm 12 mm 15 mm	70

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	200	$ 4.55

Description

General part information

ERM8-035 Series

70 Position Connector Header, Center Strip Contacts Surface Mount Gold

Documents

Technical documentation and resources

ERM8-zzz-zz.z-DV-zz Footprint

Datasheet
