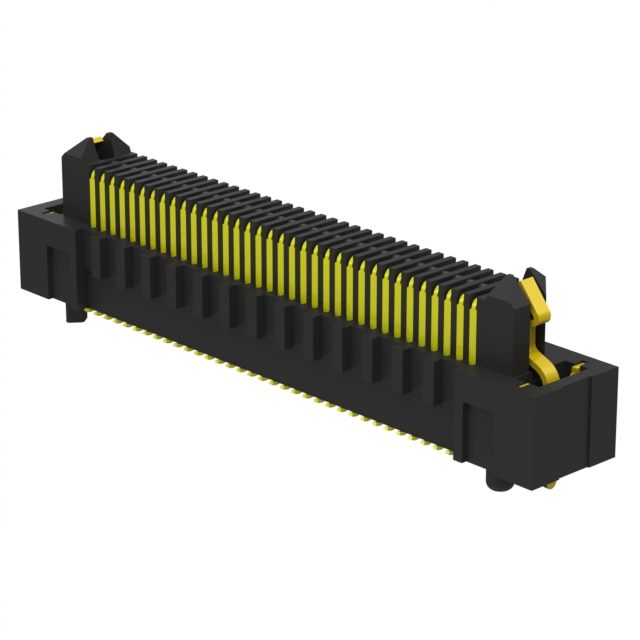

ERM8-035-05.0-S-DV-L-TR

Active

BOARD TO BOARD & MEZZANINE CONNECTORS 0.80 MM EDGE RATE(R) RUGGED HIGH SPEED TERMINAL

Active

BOARD TO BOARD & MEZZANINE CONNECTORS 0.80 MM EDGE RATE(R) RUGGED HIGH SPEED TERMINAL

Description

General part information

70 Position Connector Header, Center Strip Contacts Surface Mount Gold

Parameters and characteristics for this part

Specification	ERM8-035-05.0-S-DV-L-TR

Connector Type	Header, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	30 µin
Features	Board Guide, Latches
Height Above Board	0.351 in
Mated Stacking Height Options	10mm, 15mm, 12mm
Mounting Type	Surface Mount
Number of Positions	70
Number of Rows	2
Pitch	0.031 in

Part	Pitch	Number of Rows	Number of Positions	Connector Type	Height Above Board	Features	Contact Finish	Mounting Type	Contact Finish Thickness	Mated Stacking Height Options
Samtec Inc. ERM8-035-05.0-S-DV-TR	0.031 in	2	70	Center Strip Contacts Header	0.351 in	Board Guide	Gold	Surface Mount	30 µin	10mm 12mm 15mm
Samtec Inc. ERM8-035-01-L-D-EM2-TR	0.031 in	2	70	Center Strip Contacts Header			Gold	Board Edge Straddle Mount	10 Ąin
Samtec Inc. ERM8-035-09.0-L-DV-K-TR	0.031 in	2	70	Center Strip Contacts Header	0.508 in	Board Guide Pick and Place	Gold	Surface Mount	10 Ąin	14mm 16mm 19mm
Samtec Inc. ERM8-035-02.0-L-DV-TR	0.031 in	2	70	Center Strip Contacts Header	0.235 in	Board Guide	Gold	Surface Mount	10 Ąin	12mm 7mm 9mm
Samtec Inc. ERM8-035-02.0-L-DV-K	0.031 in	2	70	Center Strip Contacts Header	0.235 in	Board Guide Pick and Place	Gold	Surface Mount	10 Ąin	12mm 7mm 9mm
Samtec Inc. ERM8-035-01-S-D-EM2-L-TR	0.031 in	2	70	Center Strip Contacts Header		Latches	Gold	Board Edge Straddle Mount	30 µin
Samtec Inc. ERM8-035-05.0-S-DV-L-TR	0.031 in	2	70	Center Strip Contacts Header	0.351 in	Board Guide Latches	Gold	Surface Mount	30 µin	10mm 12mm 15mm
Samtec Inc. ERM8-035-08.0-S-DV-K-TR	0.031 in	2	70	Center Strip Contacts Header	0.351 in	Board Guide Pick and Place	Gold	Surface Mount	30 µin	10mm 12mm 15mm
Samtec Inc. ERM8-035-08.0-L-DV-TR	0.031 in	2	70	Center Strip Contacts Header	0.351 in	Board Guide	Gold	Surface Mount	10 Ąin	10mm 12mm 15mm
Samtec Inc. ERM8-035-08.0-L-DV-K-TR	0.031 in	2	70	Center Strip Contacts Header	0.351 in	Board Guide Pick and Place	Gold	Surface Mount	10 Ąin	10mm 12mm 15mm
