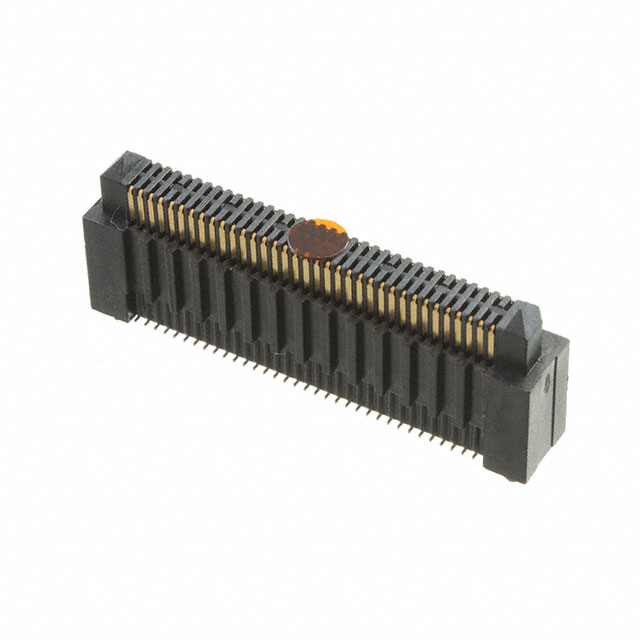

ERM8-035-09.0-L-DV-K-TR

Active

Samtec Inc.

CONN HDR 70POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsERF8 Series Other Related Documents 03 Datasheet +1

ERM8-035-09.0-L-DV-K-TR

Active

Samtec Inc.

CONN HDR 70POS SMD GOLD

Deep-Dive with AI

DocumentsERF8 Series Other Related Documents 03 Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ERM8-035-09.0-L-DV-K-TR

Connector Type	Header, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Pick and Place, Board Guide
Height Above Board	0.508 in
Height Above Board	12.91 mm
Mated Stacking Heights	14 mm, 19 mm, 16 mm
Mounting Type	Surface Mount
Number of Positions	70
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

ERM8-035 Series

Part	Height Above Board	Height Above Board	Features	Connector Type	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Number of Rows	Contact Finish	Mated Stacking Heights	Number of Positions
Samtec Inc. ERM8-035-05.0-S-DV-TR	8.91 mm	0.351 in	Board Guide	Header Center Strip Contacts	Surface Mount	0.76 Ám	30 Áin	0.8 mm	0.031 in	2	Gold	10 mm 12 mm 15 mm	70
Samtec Inc. ERM8-035-05.0-L-DV-L-K-TR	8.91 mm	0.351 in	Board Guide Latches Pick and Place	Header Center Strip Contacts	Surface Mount	0.25 Ám	10 Áin	0.8 mm	0.031 in	2	Gold	10 mm 12 mm 15 mm	70
Samtec Inc. ERM8-035-09.0-L-DV-K-TR	12.91 mm	0.508 in	Board Guide Pick and Place	Header Center Strip Contacts	Surface Mount	0.25 Ám	10 Áin	0.8 mm	0.031 in	2	Gold	14 mm 16 mm 19 mm	70
Samtec Inc. ERM8-035-02.0-L-DV-TR	5.97 mm	0.235 in	Board Guide	Header Center Strip Contacts	Surface Mount	0.25 Ám	10 Áin	0.8 mm	0.031 in	2	Gold	7 mm 9 mm 12 mm	70
Samtec Inc. ERM8-035-05.0-S-DV-L-TR	8.91 mm	0.351 in	Board Guide Latches	Header Center Strip Contacts	Surface Mount	0.76 Ám	30 Áin	0.8 mm	0.031 in	2	Gold	10 mm 12 mm 15 mm	70
Samtec Inc. ERM8-035-08.0-S-DV-K-TR	8.91 mm	0.351 in	Board Guide Pick and Place	Header Center Strip Contacts	Surface Mount	0.76 Ám	30 Áin	0.8 mm	0.031 in	2	Gold	10 mm 12 mm 15 mm	70
Samtec Inc. ERM8-035-08.0-L-DV-TR	8.91 mm	0.351 in	Board Guide	Header Center Strip Contacts	Surface Mount	0.25 Ám	10 Áin	0.8 mm	0.031 in	2	Gold	10 mm 12 mm 15 mm	70
Samtec Inc. ERM8-035-08.0-L-DV-K-TR	8.91 mm	0.351 in	Board Guide Pick and Place	Header Center Strip Contacts	Surface Mount	0.25 Ám	10 Áin	0.8 mm	0.031 in	2	Gold	10 mm 12 mm 15 mm	70
Samtec Inc. ERM8-035-05.0-S-DV-L-K-TR	8.91 mm	0.351 in	Board Guide Latches Pick and Place	Header Center Strip Contacts	Surface Mount	0.76 Ám	30 Áin	0.8 mm	0.031 in	2	Gold	10 mm 12 mm 15 mm	70
Samtec Inc. ERM8-035-05.0-L-DV-TR	8.91 mm	0.351 in	Board Guide	Header Center Strip Contacts	Surface Mount	0.25 Ám	10 Áin	0.8 mm	0.031 in	2	Gold	10 mm 12 mm 15 mm	70

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 6.25
		10	$ 5.64
		25	$ 5.34
		50	$ 5.17
	Digi-Reel®	1	$ 6.25
		10	$ 5.64
		25	$ 5.34
		50	$ 5.17
	Tape & Reel (TR)	125	$ 4.55
		625	$ 4.48
