APM HEXSEAL

SWITCH SEALING BOOT, APM HEXSEAL AND E-SEEL TOGGLE SWITCHES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

1131/26 2501

Active

APM HEXSEAL

SWITCH SEALING BOOT, APM HEXSEAL AND E-SEEL TOGGLE SWITCHES

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.67
		10	$ 2.53
		25	$ 2.47
		50	$ 2.43
		100	$ 2.40
		250	$ 2.37
		500	$ 2.33
		1000	$ 1.97
		5000	$ 1.93
Newark	Each	1	$ 3.87
		10	$ 3.41
		25	$ 3.31
		50	$ 3.20
		100	$ 3.10
		250	$ 2.89

Description

General part information

1131 Series

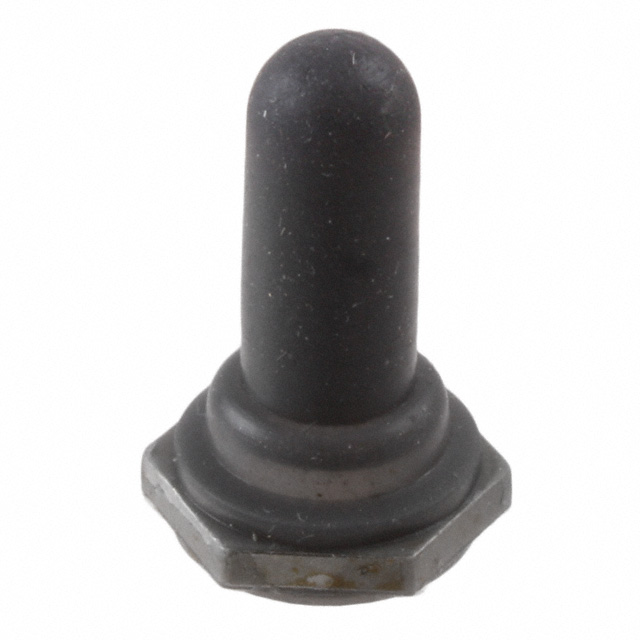

The 1131/26 2501 is a grey Full Toggle Boot moulded from a high tear-strength silicone rubber bonded to a built-in mounting nickel-plated brass nut. It encloses the base of the protruding switch bushing and forms a watertight and dust-tight seal against the front panel surface. This HEXSEAL® boot is resistant to salt spray, sunlight, ozone, weather, fungus and most acids and lubricating oils.

Specification	1131/26 2501	1131 Series

Actuator Diameter [diameter]	5.55 mm	2.95 - 6.5 mm
Actuator Diameter [diameter]	0.219 in	0.116 - 0.256 in
Color	Gray	Black, Gray
Features	-	Inverted Bellow
For Use With/Related Products	Multiple Series	Multiple Series
Ingress Protection	IP66/IP68	IP66/IP68
Material	Silicone Rubber	Silicone Rubber
Mounting Feature	Front of Panel	Front of Panel
Operating Temperature [Max]	204 °C	204 °C
Operating Temperature [Min]	-70 °C	-70 °C
Size / Dimension	-	14.3 mm
Size / Dimension [z]	27.76 mm	0.562 - 27.76 mm
Size / Dimension [z]	1.093 in	0.844 - 1.093 in
Thread Size	15/32-32 NS-2B	M12x1, M12x0.75, M6x0.75, 15/32-32 NS-2B, 1/2-32 NS-2B
Type	Full Boot, Toggle	Full Boot, Toggle

Part	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Size / Dimension [z]	Size / Dimension [z]	Mounting Feature	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	For Use With/Related Products	Color	Type	Thread Size	Material	Size / Dimension [z]	Features
APM HEXSEAL 1131/26 17 M12-.10	5.55 mm	0.219 in	27.76 mm	1.093 in	Front of Panel	IP66/IP68	204 °C	-70 °C	Multiple Series	Black	Full Boot, Toggle	M12x1	Silicone Rubber
APM HEXSEAL 1131/26 17 M12-.75	5.55 mm	0.219 in	27.76 mm	1.093 in	Front of Panel	IP66/IP68	204 °C	-70 °C	Multiple Series	Black	Full Boot, Toggle	M12x0.75	Silicone Rubber
APM HEXSEAL 1131/25 17	2.95 mm	0.116 in	0.562 in		Front of Panel	IP66/IP68	204 °C	-70 °C	Multiple Series	Black	Full Boot, Toggle	M6x0.75	Silicone Rubber	14.3 mm
APM HEXSEAL 1131/31 17	6.5 mm	0.256 in	21.4 mm	0.844 in	Front of Panel	IP66/IP68	204 °C	-70 °C	Multiple Series	Black	Full Boot, Toggle	15/32-32 NS-2B	Silicone Rubber
APM HEXSEAL 1131/40 S 17	5.95 mm	0.234 in	21.8 mm	0.859 in	Front of Panel	IP66/IP68	204 °C	-70 °C	Multiple Series	Black	Full Boot, Toggle	M12x1	Silicone Rubber
APM HEXSEAL 1131/31 M12-2202	6.5 mm	0.256 in	21.4 mm	0.844 in	Front of Panel	IP66/IP68	204 °C	-70 °C	Multiple Series	Black	Full Boot, Toggle	M12x1	Silicone Rubber
APM HEXSEAL 1131/26 2501	5.55 mm	0.219 in	27.76 mm	1.093 in	Front of Panel	IP66/IP68	204 °C	-70 °C	Multiple Series	Gray	Full Boot, Toggle	15/32-32 NS-2B	Silicone Rubber
APM HEXSEAL 1131/60 2201			23 mm	0.906 in	Front of Panel	IP66/IP68	204 °C	-70 °C	Multiple Series	Gray	Full Boot, Toggle	1/2-32 NS-2B	Silicone Rubber		Inverted Bellow
